Outdoor deck and pergola

BobbySimmo32

Finished deck and pergola -36 square feet

Needed an outdoor space ,protected from the elements.Bit of a handyman so set out footings and knocked up the framework.Had an engineer to pass off my footings and spacing. Bought 100 mm,6 mtr x 1 mtr insulated roofing panels.

Materials

Bags of cement and aggregate and sand

Stirrups

Galvanised coach bolts and nuts

Joist hangers

Heavy duty galvanised clout nails for joist hangers

140 x 45 mm h3 treated pine timbers

Tools

Petrol post-hole digger

shovels

large pinch bar

wheelbarrow

wTer level

circular saw

impact driver

camoflage deck kit for secret screwing

handsaw

electric planer

Steps

Step 1

Step1-mark out string lines and pegs

step 2-dig out footings

step 3 -anka-screw ledger beam to house brickwork

step 4-fit 6 mtr x6 mtr frame

step 5- check diagonals for alignment

step 6- install bearers

step 7-install joists (both are at same height )

step 8- lay decking (A grade treated pine)

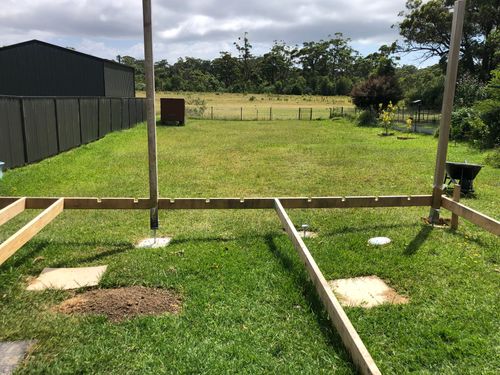

Step 2

set out framework

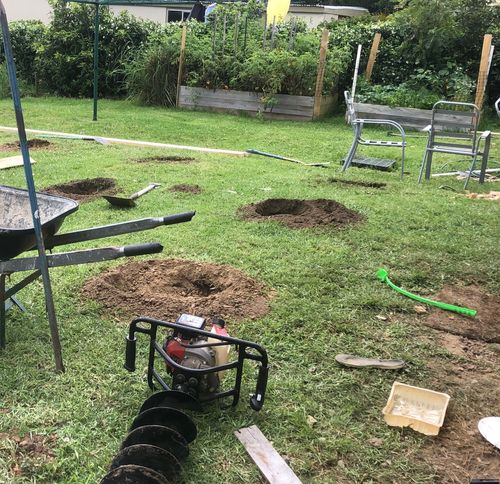

Step 3

Start to dig out footings

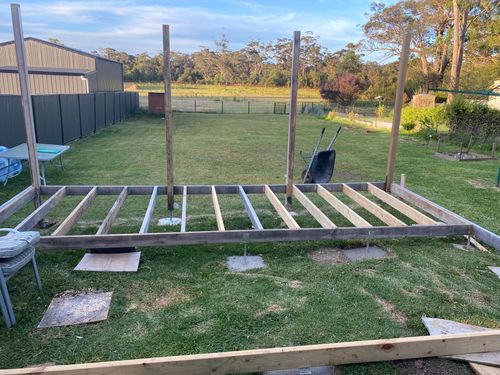

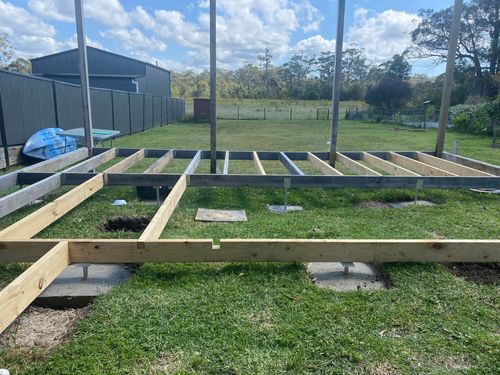

Step 4

Install bearers and joists

Step 5

Used joist hangers and a half checked housing  for more strenth

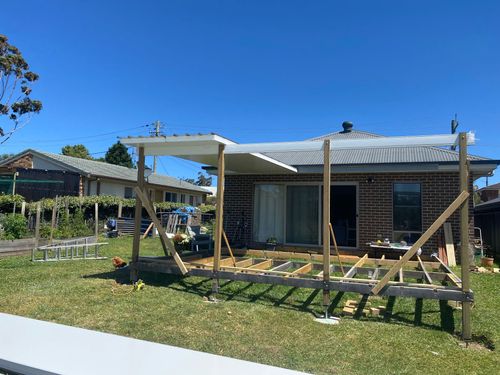

Step 6

Start to install the 6 roofing panels

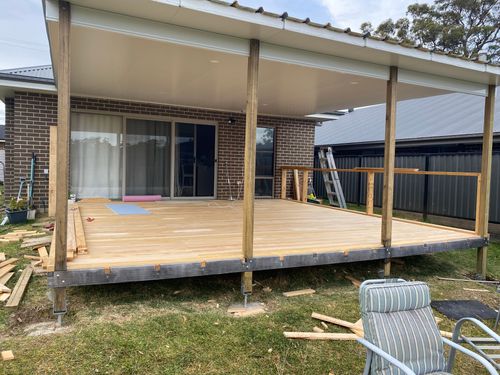

Step 7

Now I had protection to start laying the deck

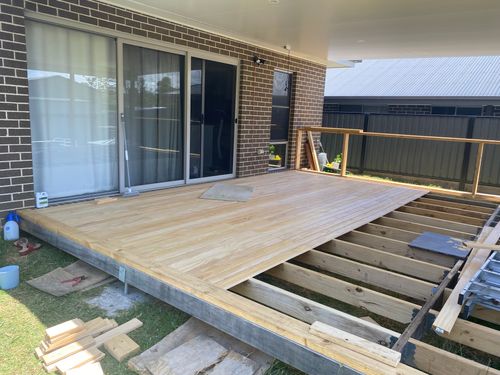

Step 8

Deck is finished

Step 9

Last jobs were staining the deck,handrails installed ,ballastrad installed and painted fibro sheets lining the side rails

 Finish
