How to locate rare Irwell 39748 basin taps spare parts or complete assemblies?

I am trying to locate a supplier of replacement ,complete valve spindle assemblies (qty 2) for very old Irwell bathroom basin taps code 39748. The taps are of the jumper valve construction (with a washer) Both the male stem and female mating threads are worn and the complete spindles need replacing.

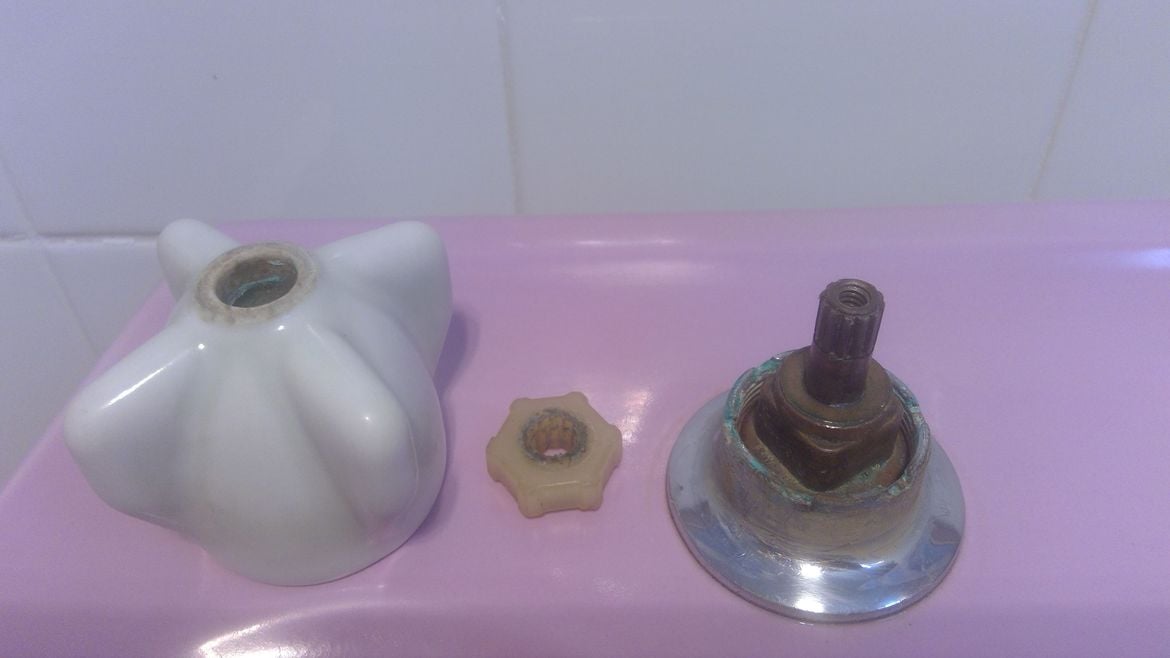

At this stage I prefer not to revert to ceramic disc type spindles assemblies as the existing handles have a 12 tooth nylon insert in the underside/top end of the handle, and the handles are fastened to the valve stem with a male threaded screw. Most valve stems on the market have a male thread (at the very top end of the stem) onto which the handle is attached.

I think it would be difficult to match both, "a ceramic disc type valve spindle and a current market-style handle" to the "existing basin taps plumbing"

I also think the 'new' spindles and handles assemblies might 'sit' too high above the basin surface.

Any advice would be appreciated... Regards to you all.

Find more posts tagged with

Tools and Materials

Plumbing

Accepted answers

All comments

redracer01

Hello @irwellconverter,

Welcome to the Bunnings Workshop community. It's great that you've joined us. Thank you for sharing your question about the Irwell spindles.

Your Irwell tap spindles were originally made by Caroma around 1997. Finding spares will be difficult but not impossible. I suggest taking the spindle assembly out and bringing it with you to a dedicated plumbing store. There might be a compatible or generic set that might work with your basin assembly.

I understand your wish to keep the existing handles. However, the circumstances with your existing tap spindles might not leave you with a lot of choice but to upgrade your tapware assembly set.

Let me tag @MitchellMc as he might have run across a similar type of spindle.

Good hunting and I hope you find something that will work.

Red

Brad

I have a similar set in the bathroom dating back to 1980 that the tops have been replaced with an adaptor kit. The cover of the new taps is smaller than base of the old fitting so it does look a bit like a dogs breakfast so I understand why you want like for like.

irwellconverter

G'day redracer01 - I appreciate your informative reply and suggestion re my enquiry.

Regards and keep safe.

Stan.

irwellconverter

G'day Brad

Thanx for your reply.

Would I be stretching the friendship if I asked you for a photo of the finished exercise - it might not be such a "dogs breakfast"

Do you remember the name/supplier of the adapter kit ?

Regards and keep safe.

Stan.

MitchellMc

Hi Stan (@irwellconverter),

Could I please clarify the issue with the tap as I'm not quite following your description? What are the "male stem and female mating threads" you are referring to, and could you take an image of them for us?

Many thanks.

Mitchell

Brad

What I found when I fixed mine a few years ago was that standard spindles with ceramic disks wouldn’t seal without an extension piece from EBay. While now the taps worked the handles were very high, I cut roughly 25mm off the top so the handles would look better. The flange from the handles sits on top of the chrome locking ring/flange leaving a gap. It looks like the spindle has been used to screw the ring onto the manifold under the sink. There doesn’t seem to be an easy fix, the original has a squat top and a deep thread to reach the seat. My manifold has copper connections that makes life interesting to do a change over to a new manifold that is more modern tap friendly.

Brad

Blowing up your photo on the phone there are some notches that would fit a special spanner which is unlikely to be available now to remove the flange. A brave person could use a hammer and chisel to see if after 30 years it would unscrew, pipe wrench may also move it so you can find a locking nut that doesn’t interfere with a modern flange, leaving you to sort out the deep body.

Jason

Hi Stan (@irwellconverter)

Hope you are staying safe and well.

Just checking in to see how you are going with fixing these taps and if you still need assistance? It would be great to get an update. I am happy to tag others who might be able to share their thoughts.

Thanks,

Jason

irwellconverter

G'day Jason

Quick email

I prepared a ten line email and while attempting an attachment, I took a long break from the laptop, which shutdown, and now I cannot locate (the lengthy text of) the email in the Bunnings Workshop site.

Any ideas

Regards

Stan

Jason

Stan (@irwellconverter)

Sorry you lost your post. The site's text editor does have an auto-save feature. If you have any draft posts you can find them on your member profile page (just click on your username and go to the bottom of the page). Unfortunately you don't have any saved drafts, so it appears you have lost your message.

Apologies for the inconvenience.

Jason

irwellconverter

G'day Jason, thanx for your emails and apology for delay in replying - I have not been idle in this spindle 'quest'

Firstly, it is possible that the code '39748' is a plumbing approval code(?). The tap is a Caroma 88-98 series(?) Please refer to attachment for my spindle.

So far a dead end re direct replacement. A possible 'limited' remedy is a Ceramic Disk spindle from extremely helpful West Aust company - 'Easy Tap'. They deal through distributors, but not Bunnings. The item is the TZ2014, 1/4 turn CD spindle. Please refer to attachment. The principal, Tony Zeng, however, remarked that in this set up there could be an abnormal noise issue of 'undesirable water flowing noise' through the basin spout, if aerator is not fitted. I have to take this warning/advice into consideration from a practical viewpoint. I cannot fit an aerator to my chromed cast brass basin spout. "You win so and you lose some!"

Any further help and suggestions would be appreciated? Are you able to offer my thanx, and also pass on this email to Brad, Redracer and MitchellMc.

I shall continue my search...

Regards and Keep Safe

Stan

EricL

Hello @irwellconverter,

It's fantastic that you've received excellent advice from @redracer01, @MitchellMc, and @Brad. My only other suggestion to complete your puzzle is to replace your spout with a Shaw & Mason WELS 3 Star 9/L Min Chrome Plated Low Line Basin Spout. This is an updated spout but should work with your existing plumbing setup. It has an integrated aerator that will satisfy the requirement of putting in a ceramic disc replacement.

Thank you so much for posting those photos and updates. It will be a great resource of information for our members with similar tap spindles in their homes.

Please keep us updated, we look forward to seeing your basin set repaired.

Eric
