How to replace hinge for kitchen cabinets?

Hi,

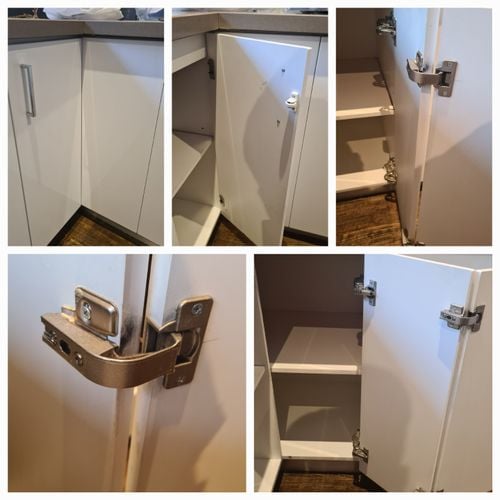

I need to find a suitable hinge for the kitchen cabinet door as the hinge on the door is broken. I have attached photo of the broken hinge. I have also made a collage of how the hinge is meant to operate for the cabinet door as the opposite cabinet door has the same setup and hinge.

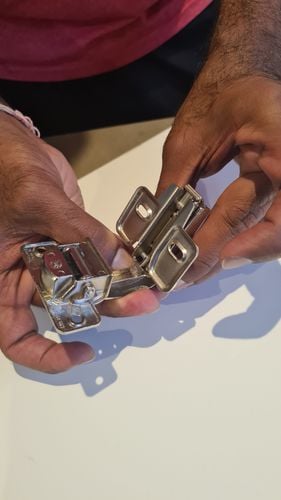

Also attached is the broken hinge photo.

Please let me know.

Regards,

Sunil

Find more posts tagged with

Repairing

Doors and Windows

Accepted answers

All comments

EricL

Hello @sunillinus20

The hinge you have is called a bi-fold corner hinge. I suggest bringing your broken hinge to the store so that you can be sure that the round slot fittings are the same size as the old set. I recommend having a look at the Hafele Salice 70° Bifold Corner Hinge Clip On - 1 Pair. The degree of the closing fold is very large and should work with your existing doors. Please note that both hinges in the middle will need to be replaced.

If you have any other questions we can help with, please let us know.

Eric

sunillinus20

Thank you for replying EricL.

Did speak to a store person. However it was not the correct one.

But ended up getting it online after trying few different ways online.

MitchellMc

Thanks for updating us, @sunillinus20. It's great to hear you got it sorted.

Mitchell
