Need help with designing a small U-shaped kitchen

Hi Guys

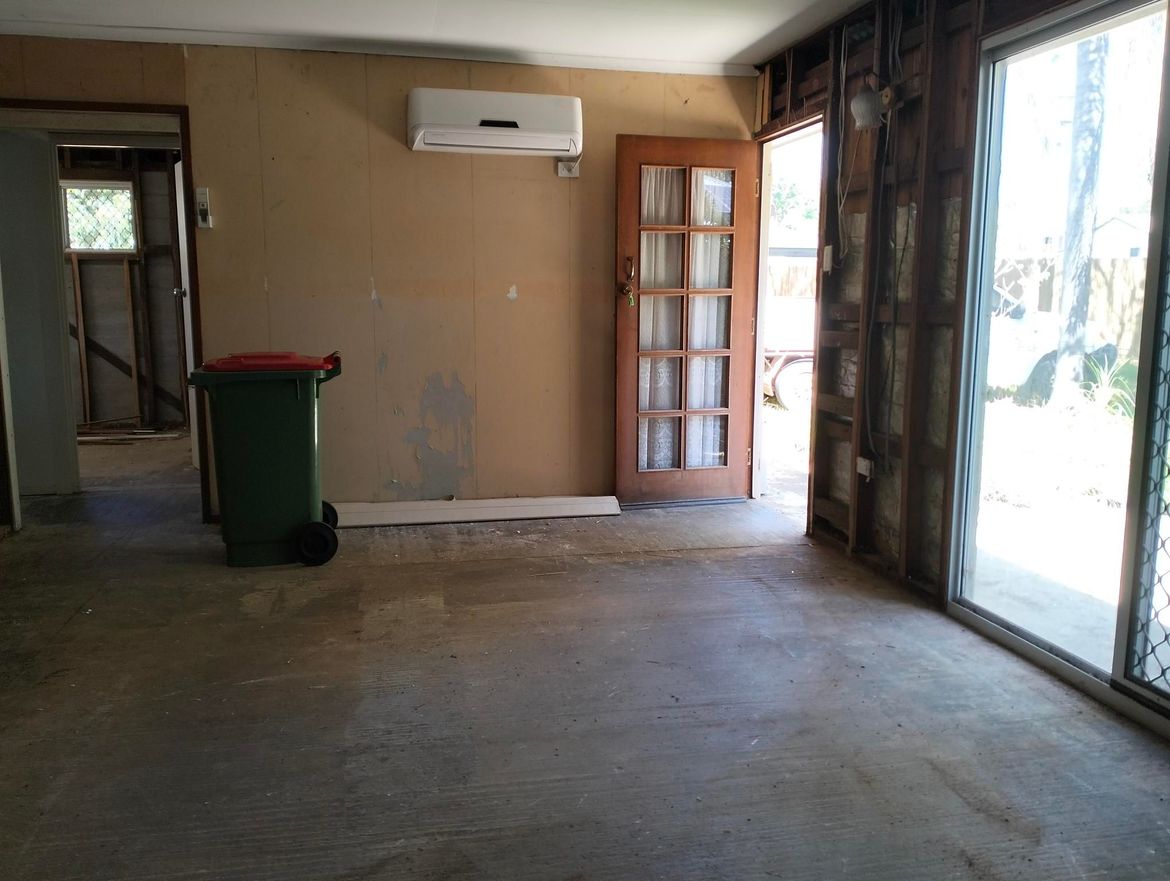

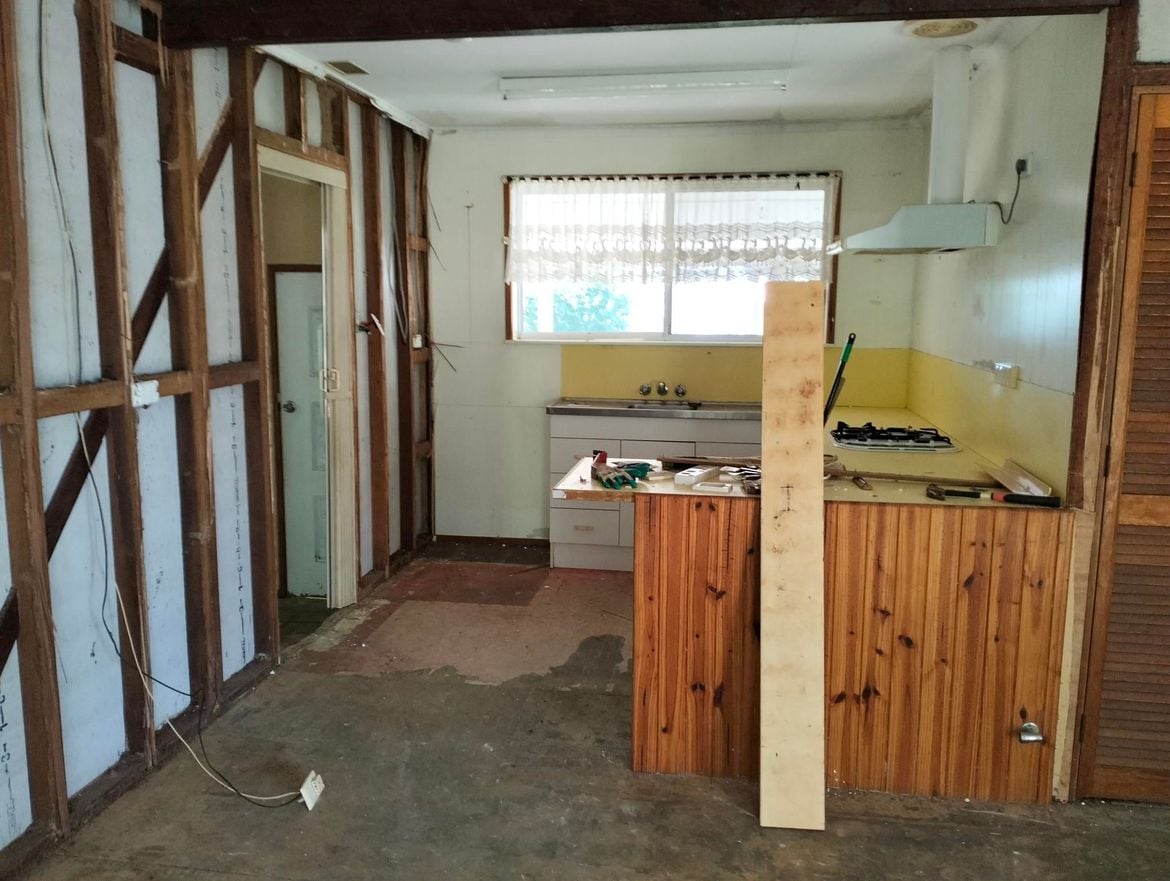

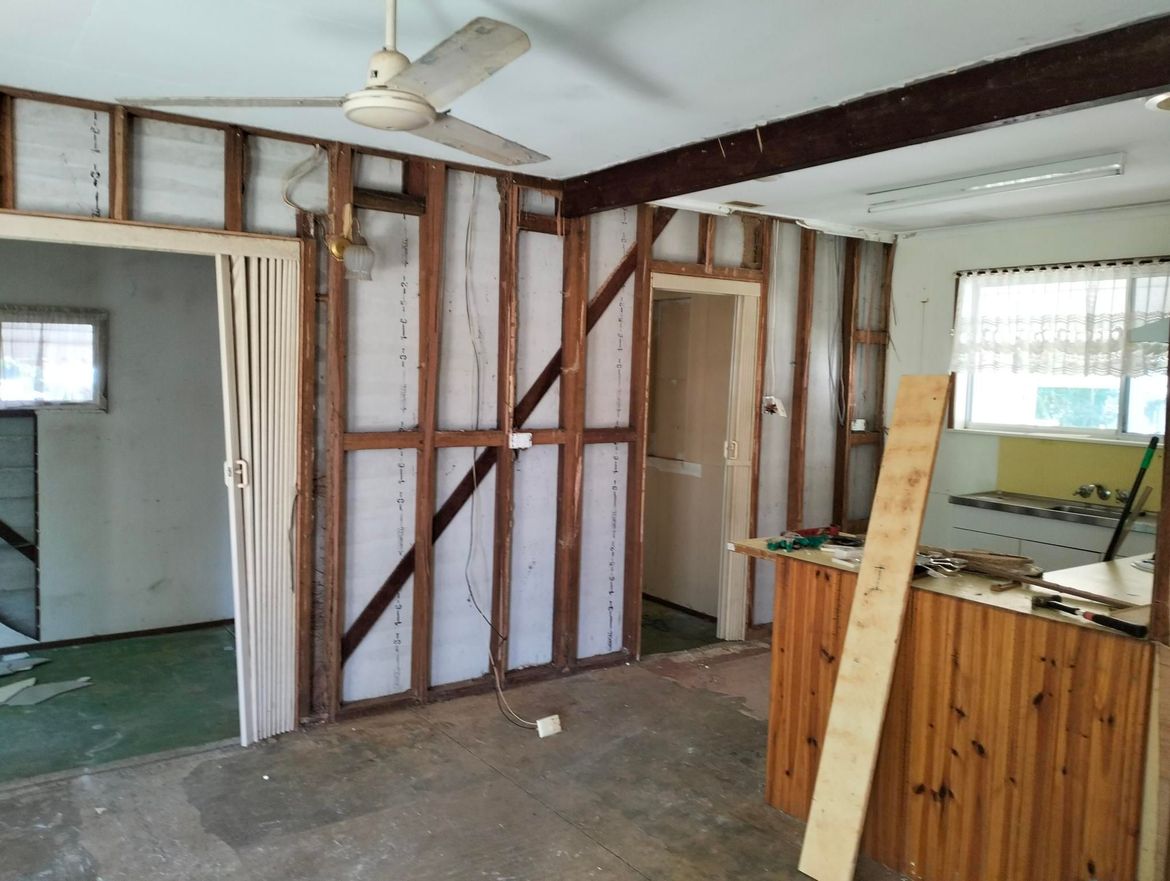

We are on a limited budget and renovating a small 2-bedroom one bathroom cottage. The kitchen is now stripped out and i need to plan a kitchen layout.

rear wall with window is 2700mm with 450mm wall on left of window and 400mm wall on the right side.

Right wall is 2500mmm long

Left wall will have the doorway filled in and can ne up to 3500mm long (3750 to door opening)

We would like sink under the window, and room for a dishwasher.

stove top with oven underneath and range hood on left side

Right side room for large fridge and pantry

Find more posts tagged with

Renovation

Building and Construction

Accepted answers

EricL

Hello @Flash66

Welcome to the Bunnings Workshop community. It's wonderful to have you join us, and thank you for sharing your question about designing your kitchen layout.

I understand that this is both an exciting and stressful time for you as kitchens don't get renovated that often. I understand that you want the cooktop on the left-hand side, but I'm afraid that it will eat up too much of your cabinetry space making it an ungainly layout.

However, I will make another render with the cooktop on the other side. As soon as I'm finished, I'll post it here as soon as I can.

This is a balanced layout with a midsized pantry that allows you to have a large 900 3-drawer cabinet. It's then followed by a blind corner cabinet then an 800mm base unit which is right next to the dishwasher. This is the ideal spot for it as it is right next to the plumbing utilities.

It's then followed by another blind corner cabinet then the oven and cooktop base and finally a 600mm 3-drawer base for pots and pans. A 200mm base cabinet is placed at the end for large serving trays and miscellaneous kitchen items.

Please have a good look at the sample sketch and tell me what you think. If you wish to see it in another configuration, please let me know.

I also suggest having a look at the Top 10 most popular kitchen projects for ideas and inspiration.

Let me call on our experienced members @prettyliving , @lifestylebymari and @redbournreno for their recommendations.

If you have any other questions we can help with, please let us know.

Eric

Flash66 kitchen1.jpg Flash66 kitchen2.jpg Flash66 kitchen3.jpg Flash66 kitchen4.jpg Flash66 kitchen6.jpg Flash66 kitchen5.jpg Flash66 kitchen7.jpg

All comments

EricL

Hello @Flash66

Welcome to the Bunnings Workshop community. It's wonderful to have you join us, and thank you for sharing your question about designing your kitchen layout.

However, I will make another render with the cooktop on the other side. As soon as I'm finished, I'll post it here as soon as I can.

Please have a good look at the sample sketch and tell me what you think. If you wish to see it in another configuration, please let me know.

I also suggest having a look at the Top 10 most popular kitchen projects for ideas and inspiration.

Let me call on our experienced members @prettyliving , @lifestylebymari and @redbournreno for their recommendations.

If you have any other questions we can help with, please let us know.

Eric

Flash66 kitchen1.jpg Flash66 kitchen2.jpg Flash66 kitchen3.jpg Flash66 kitchen4.jpg Flash66 kitchen6.jpg Flash66 kitchen5.jpg Flash66 kitchen7.jpg

Flash66

Hi Eric

Love the design and we are really grateful. I was looking at having the tall ie fridge and pantry on the right so I could look at fitting an island bench project timber timber style leaving a 700mm entry what are your thoughts.

Flash66

Hi Eric the more i look at your design the more i like it , are the timber dining table and cupboards built out of the project panels? And also, could you give me a rundown of what cabinetry i would need to order please.

EricL

Hi @Flash66

Hold that thought because I just finished your revised kitchen layout. Have a look and see which one is to your liking.

Eric

Flash66 kitchenA.jpg Flash66 kitchenB.jpg Flash66 kitchenC.jpg Flash66 kitchenD.jpg Flash66 kitchenE.jpg Flash66 kitchenF.jpg Flash66 kitchenG.jpg

Flash66

Hi Eric both are great designs, I just wondered if the second design could have the dishwasher next to the sink, if so I think the Second design might be the go. As you can see on the floorplan for the house it is a small house so need to maximise space

MitchellMc

Hi @Flash66,

There's likely not enough cabinetry room to have the dishwasher next to/under the sink. However, @EricL will be back after the weekend, and I trust he'll add to the conversation.

Mitchell

Flash66

Would it be possible to get a run down on what cabinets I would require

MitchellMc

Hi @Flash66,

Let me mention @EricL for you so he can let us know the cabinetry he has used in his design.

Mitchell

EricL

Hello @Flash66

Below are the cabinets I used for your second kitchen design.

The microwave cabinet and the book case cabinet are custom built using SpecRite 2100 x 600mm 26mm Timber Panel Okoume FJ Laminated. However, you can use other timber panels at the store if the Okoume is not available. It's then just simply a matter of varnishing the cabinet with your preferred sealer.

I suggest bringing the kitchen design to your local store and asking the In-Store Kitchen Expert to quote the cabinet list. They can then include all the accessories such as door type, handles, hinges and benchtop to the quote.

If you have any other questions we can help with, please let us know.

Eric

Flash66

Hi Eric thank you so much for the list is it possible to get a list for the first kitchen so we can cost up options please

EricL

Hi @Flash66

Here is the cabinet list for the first kitchen.

The microwave and book cabinet are custom made using the same timber panel as the second kitchen. The free-standing island/meal table will have to be built by your kitchen installer. The first kitchen design can also be quoted by the In-Store Kitchen Expert. Just make sure to bring the measurements of your walls so they can use it as a reference.

If you need further assistance, please let us know.

Eric

Flash66

Hi Eric

Iam about to go ahead now and my electrician has requested the dimensions, distance from wall to cooker so he can plan for the power points.

He has also asked if the dishwasher could go next to the sink, if possible, can you assist please.

EricL

Hello @Flash66

My apologies for the late reply. Can you please double check the wall sizes I've posted of your kitchen below? I'll be redrawing your kitchen with the dishwasher near the sink. I'll post the revamped drawing as soon as I am able.

Eric

Flash66

Hi Eric

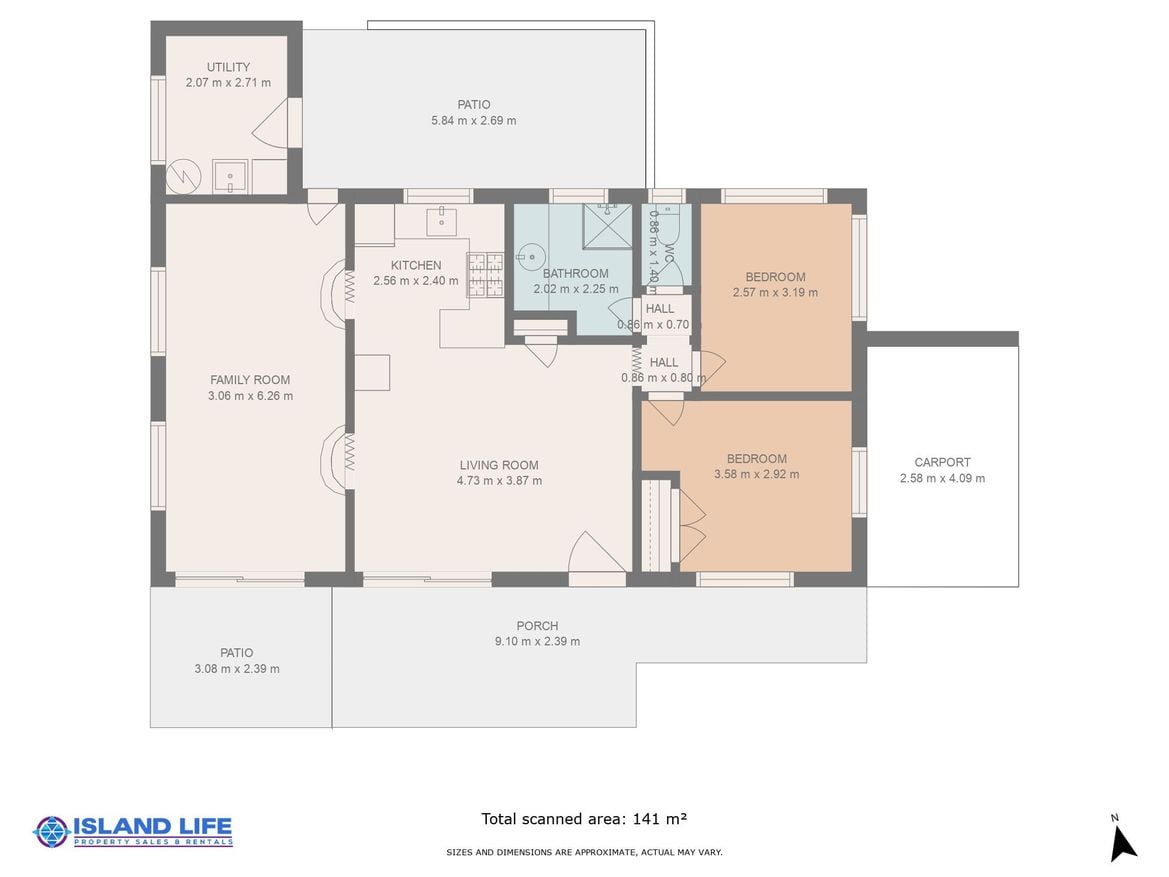

Yes the dimensions are correct I need to work out the distance from the wall to the cooker and if the dishwasher can fit on the sink wall area

EricL

Hello @Flash66

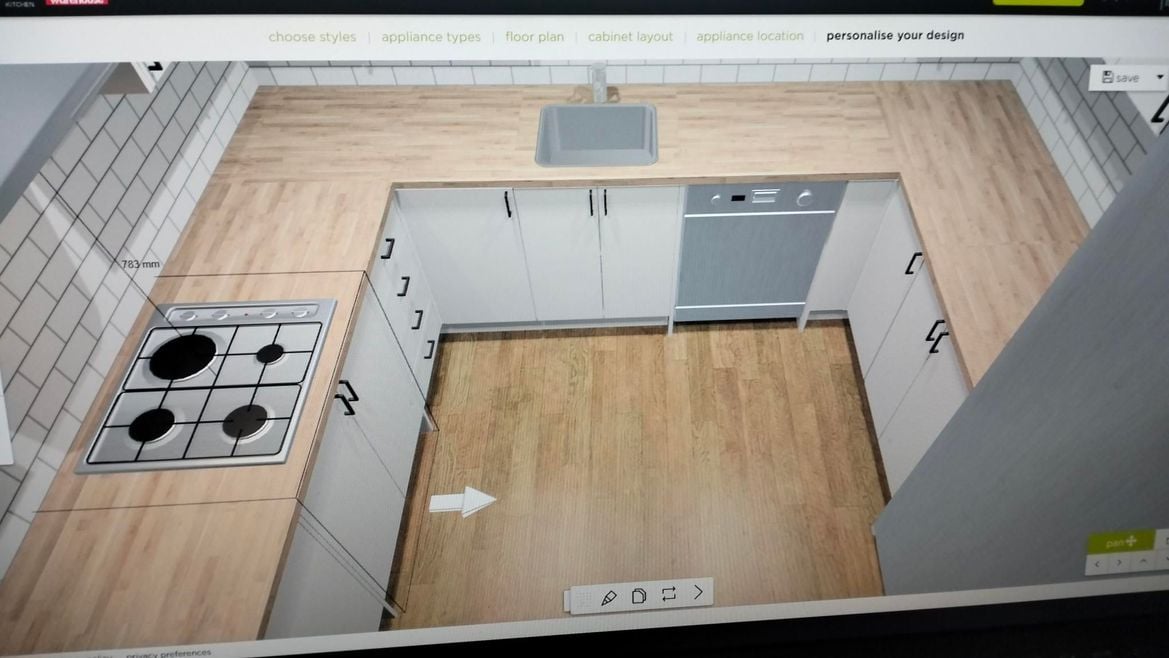

I've redrawn your kitchen in the Kaboodle 3d planner and have placed the cabinet layout below. The floor plan has the cabinet sizes indicated which should enable you to get a good estimate where the utilities need to go. Please note that the plan doesn't include the custom sized timber cabinets for the microwave and the books. I've also place some basic 3d renders to give you an idea of the layout.

Please note that this plan is based on the measurements you've given me, I recommend giving yourself a bit of leeway when locating the utilities so that they will not run into the vertical panels of the cabinetry.

If you have any other questions I can help with, please let me know.

Eric

flash 66 kitchen plan.jpg
