Recycled hardwood and trellis fence with planter boxes

We had a dead area in our back yard that was always to wet for anything to grow. With that in mind we decided to build a trellis fence out of recycled hardwood floor joists, with Cor10 (Corten Steel) Planter Boxes in-between. The planter boxes kept the new plants off the ground and instead of dying, are now flourishing! The sketchy grass was also removed and replaced with Paving. It finished up totally transforming our back yard and we couldn't be any happier with the result.

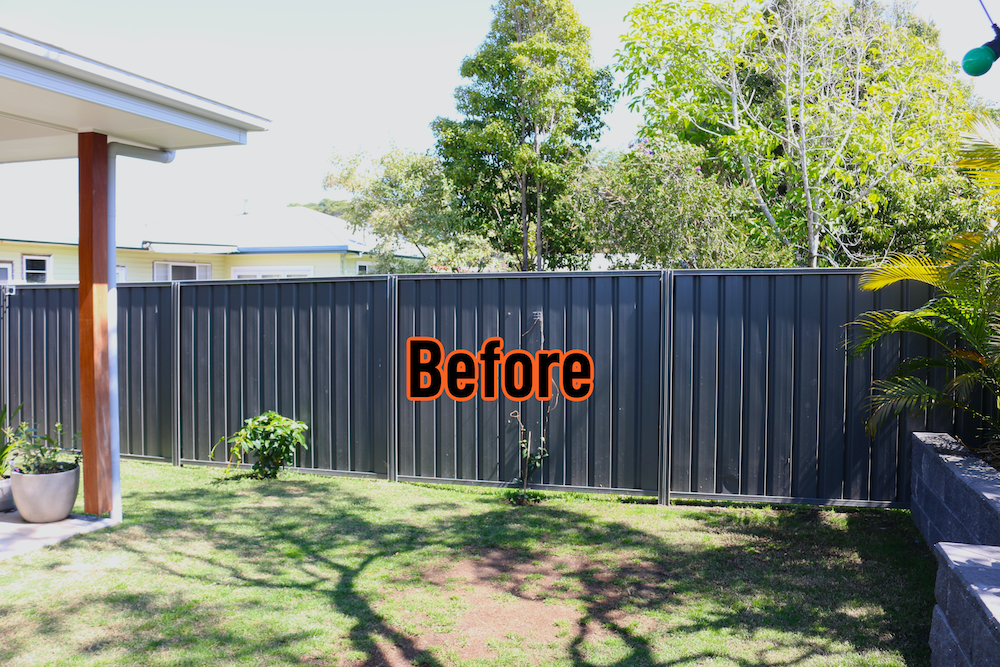

Before Photo copy 2.png

Materials

90x35mm recycled hardwood joists for the trellis posts
Recycled hardwood Fascia Board for the top of the trellis.
450mm High Wind Anchor Posts. I chose these as the trellis fence is free standing (not attached to anything) and it keeps the wood up and off the ground so they should last longer. https://www.bunnings.com.au/pryda-post-anchor-high-wind-450-x-100mm-m12_p1120038
100 x 100mm Gal Mesh between the Posts.
Galvanised Staples to attach the mesh to the wood: https://www.bunnings.com.au/paslode-15-x-2-0mm-100g-galvanised-staple-nail-100-pack_p2360413
Bastion Concrete Mix 20kg bag https://www.bunnings.com.au/bastion-20kg-concrete-mix_p0038287
Cor10 Planter Boxes made to size.
600 x 400 Pavers.

Tools

7 1/4" Makita Circular Saw https://www.bunnings.com.au/makita-1800w-185mm-corded-circular-saw_p6320431
Makita Cordless Drill https://www.bunnings.com.au/makita-lxt-18v-cordless-brushless-hammer-drill-kit_p6240427
Makita Electric Planer: https://www.bunnings.com.au/makita-620w-82mm-planer_p6240082
DeWalt Mitre Saw.
Shovel
Wheelbarrow
Makita Reciprocating Saw. I had a lot of trouble with tree roots from old trees that had been cut down along the fence line so the reciprocating saw was amazing in being able to easily cut those roots away: https://www.bunnings.com.au/makita-lxt-18v-cordless-reciprocating-saw-skin-only_p6240411
Grinder to cut the mesh https://www.bunnings.com.au/makita-100mm-720w-angle-grinder_p6240111
Stanley Socket Set

Steps

Step 1

Like all fence type jobs, setting out the job and digging the holes was the first cab off the rank. I came across a lot of dead tree roots so the reciprocating saw was amazing at easily cutting through those.

Setting Up Profiles.png Setting up stirrup string line.png Stirrup height.png New Tree Root.png New Recip.png

Step 2

Concrete the post stirrups in place. I've used High Wind Anchor Post Anchors as this is a free standing trellis fence and l don't want to have the posts in the ground as that will make them last longer. Since this is free standing, normal post stirrups don't have enough rigidity to hold the trellis straight over time.

Setting Stirrup to String Line copy.png Stirrups Set to a String Line.png Concrete Materials.png

Step 3

Cut the Posts and bolt them into the Post Stirrups. Make sure you take the edge off the posts to remove any splinters.

Plumb the Posts.png Brace the Posts.png Trellis Fence set up .png Arris the Wood.png Drilling Posts.png Tightening Bolts.png

Step 4

Cut the Frames for between the posts and attach the mesh to the frames using galvanised staples.

Trellis Fence Frame copy.png Trellis Fence Frame Installation.png Trellis Mesh.png Cutting the Mesh.png

Step 5

After a coat of oil we left it like that for a while hoping that the creepers would grow but unfortunately that failed which led us to the next step of removing the grass, adding some paving and placing in the Cor10 Planter Boxes which you will see in the next step.

Trellis 5.png Trellis 2.png Trellis 1.png Trellis 3.png Trellis 4.png

Step 6

The job finished, complete with pavers and Cor10 Planter Boxes made to order. Here is the Before and After Comparison.

Before Photo copy 2.png Finished Shot.png

Find more posts tagged with

Gardening

Building and Construction

DIY July entry

Fencing and Screening

Recycling and Upcycling

Comments

EricL

Hello @DIY4Knuckleheds

What a beautiful makeover of the garden area, the trellis fence looks fantastic and will definitely look awesome once the plants start covering the area. The Corten planters blend in so well with the set up and it looks like your plants are agreeing with their new location. It would be wonderful if you could give us an update in a few month's time when your plants have matured, and they've climbed up the trellis.

Thank you for sharing such a wonderful project.

Eric

DIY4Knuckleheds

https://www.workshop.bunnings.com.au/discussion/comment/28142#Comment_28142

Thanks Eric! Since that last photo was taken the plants have really taken off! Currently there is an ugly chicken wire fence in front of it to protect the plants from our insatiable free ranging pet rabbit who would devour those beautiful juicy, young, fresh plants in a heartbeat 😂 Once the plants get a little more established and l can remove that wire fence l'll post a pic 👍😁

Cheers mate,

Shane 👍😁🇦🇺

Dave-1

@DIY4Knuckleheds

😲 Now that is a decent trellis. I always look at them and think "I wonder how long it will last" but somehow I dont think you will have a concern. I like how the height is above your fenceline, it breaks that straightness and gives a larger feeling.

I can imagine the vines or just greenery covering it. Nice work.

Dave

DIY4Knuckleheds

https://www.workshop.bunnings.com.au/discussion/comment/28208#Comment_28208

G'day Dave, thanks for the feedback mate 👍 By keeping the posts off the ground, it will ensure that the structure will remain for a very long time 👍👍

Since that photo was taken the vines have really taken off and it looks awesome! You will notice in the photo our pet rabbit sitting on the Planter Box....because of that little critter l have had to erect a chicken wire fence in front of the planter boxes to keep him out while the vines become established otherwise he would demolish them 😂

Cheers,

Shane 👍😁🇦🇺

chinner

Can I ask where you purchased and what size trough planter boxes you have??

MitchellMc

https://www.workshop.bunnings.com.au/discussion/comment/32240#Comment_32240

Welcome to the Bunnings Workshop community @chinner. It's fantastic to have you join us, and many thanks for your question about this wonderful project.

Let me mention @DIY4Knuckleheds so they are alerted to your question, and hopefully, they can provide an answer. In the interim, you might like to check out the Birdies 1 x 0.45 x 0.3m DLX Planter Corten Raised Garden Bed Kit which is of a similar style.

We look forward to hearing all about your projects and plans around the house and garden. Please feel free to reach out anytime you need assistance or have something to share with the community.

Mitchell

DIY4Knuckleheds

https://www.workshop.bunnings.com.au/discussion/comment/32240#Comment_32240

G'day @chinner.

I went to a guy who is a metal engineer and he made them up for me. He charged me around 1300.00 bucks for the four of them which l thought was very reasonable. They are 1800mm long, 500mm high and 350mm wide.

Cheers,

Shane 👍
