My gorgeous Goldie, Charlie, was recently diagnosed with hip displacia. This condition makes ordinarily simple movements incredibly difficult. It is for this reason that I decided to build a ramp to allow her easy access to some cuddles on the bed. I worked hard to match the bed frame and decor in the room with bright whites and paneling to finish.
Steps
Step 1

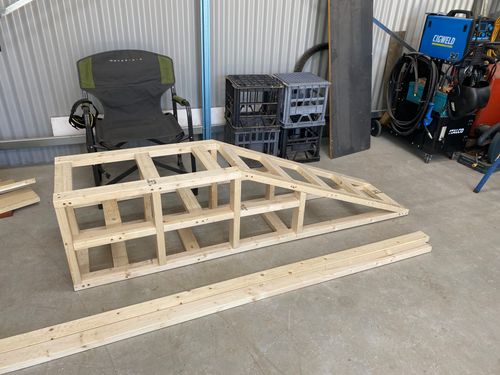

Build the frame using 35x70mm untreated pine. If adding shelving or draws, ensure this is calculated in the frame build. Secure the frame with 75mm 10G Timber Screws.
Step 2

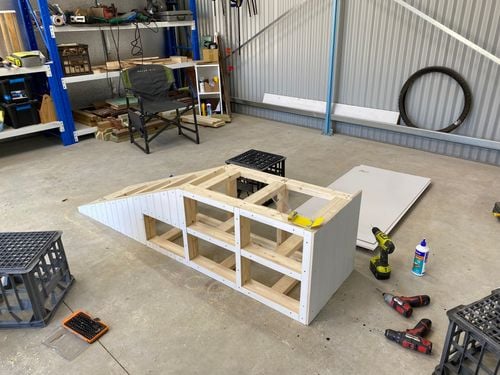

Carefully cut pine cladding to size and secure using 30mm 8G timber screws. Be sure to counter sink screws using a larger drill bit.
Step 3

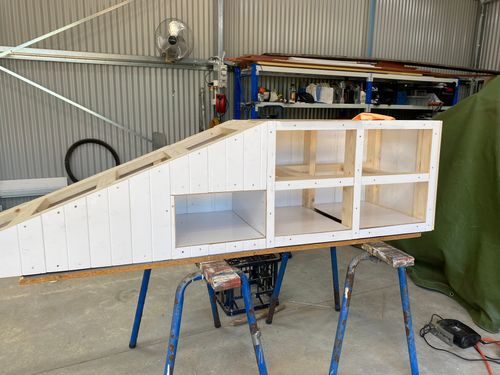

Using 3mm coated MDF board, measure and cut shelving lining. Secure in place using indoor wood glue and 20mm 8G screws.
Step 4

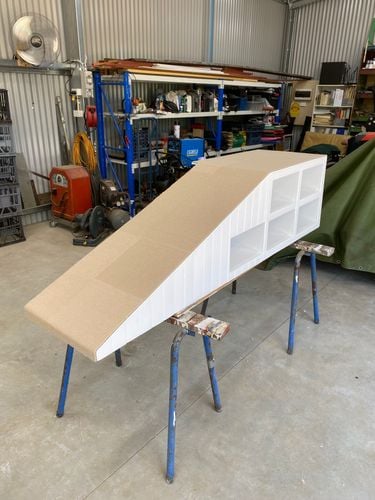

Measure and cut the 9mm MDF top. Secure using countersunk 50mm 10G timber screws. Patch all screw holes and imperfections.
Step 5

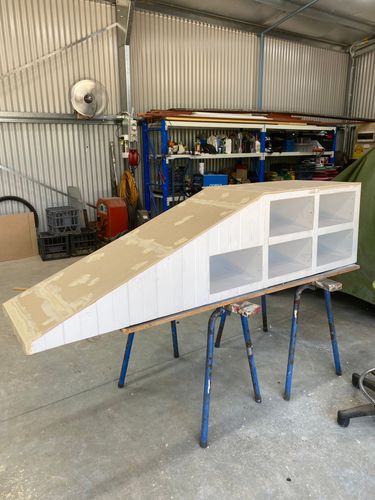

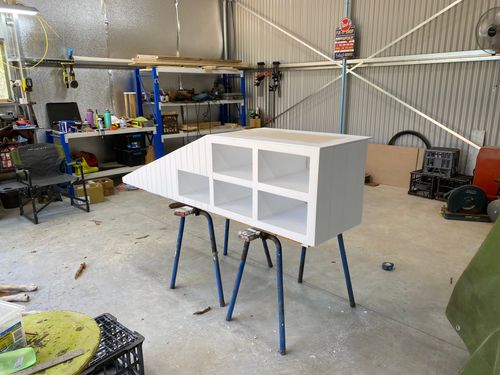

Use white gap filler to seal the edges of the shelves. Sand the ramp back until the surface is completely smooth. Apply a coat of prime, followed by 1 coat of white wall paint.
Step 6
Add your chosen material to the ramp top.
Step 7
Upon installing the ramp and observing Charlie using it, I realised the carpet was far too slippery. I then replaced it with these great foam-based self-adhesive panels.
