How to build a set of Gabion steps?

Howdy All

I have been trying to nut my way through building some steps with gabion wall bases and timber tops. I almost have it but there is a difference in heigh between steps of 10-20mm. The rules states the height should be consistant with the depth and the height.

For my example the height is 170mm and the depth is 300mm (I coppied from my front concrete steps)

The gal mesh I am using is 50mm by 50mm (locks me into certain meausurements)

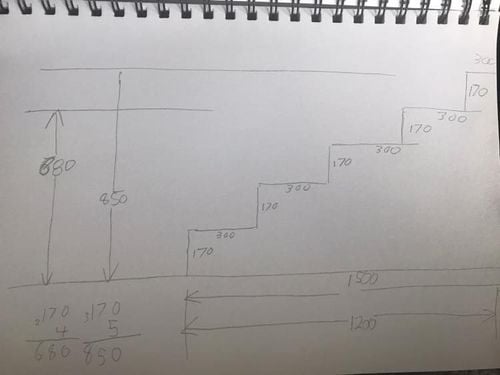

01 23-06-2024.jpg

I am not too concerned with the overall depth of the steps as it can be accomodated. It also matches the steel mesh I have.

02 23-06-2024.jpg

First step no issues, second step and issues of height turn up..

03 23-06-2024.jpg

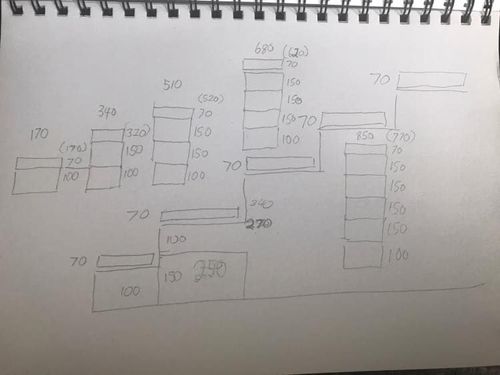

Once I started extrapolating it did my head in. The figure above the blocks is what it should be, the figure in brackets is what it will be due to the limitations of the mesh sizing.

04 23-06-2024.jpg

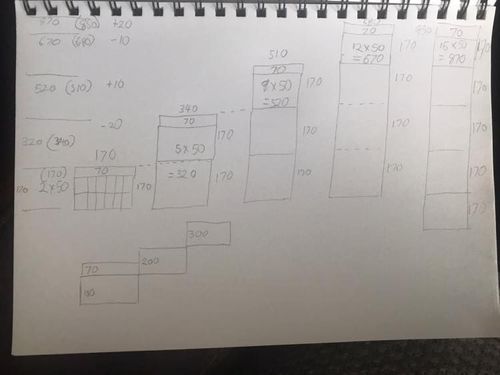

The figures on the left are what should be, brackets are what will be and the plus/minus difference in height over what it should be.

05 23-06-2024.jpg

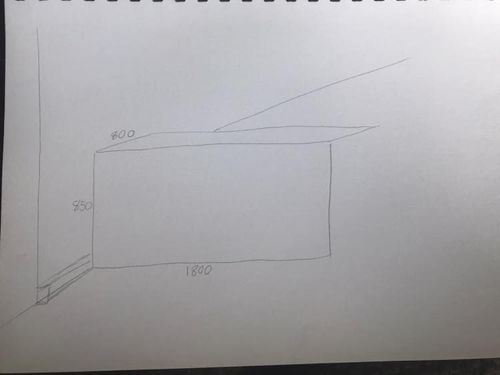

The gabion basket retaining wall size. The house wall is on the left.

06 17-06-2024.jpg

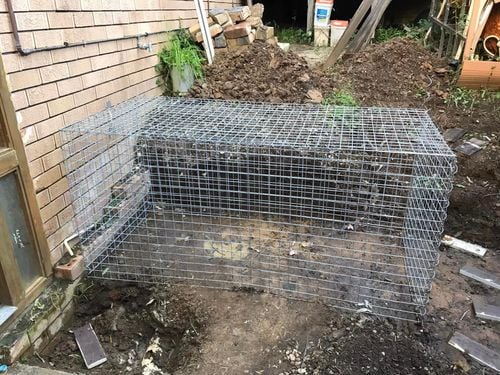

Gabion basket being built (upside down atm)

07 17-06-2024.jpg

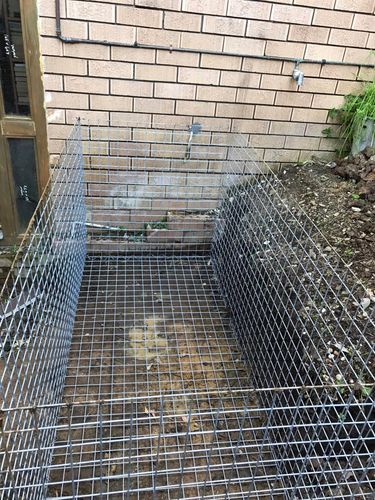

Gabion basket up the right way waiting for the ties to be put into place, will have 3 or 4 all up as its a Large basket.

08 10-06-2024.jpg

The steps will be on the right hand side of the mesh.

Going through the question this morning I am wondering if I try and limit the height of the timber tread to 50mm (the timber is 40mm thick, the timber spacer under it is 20mm which then matches up with another timer spacer under the mesh to screw through to) Then I can have a consistant height of the steps without the 70mm causing the issue. I think I have answered my question lol The first spacer under the timber is to lock them together, maybe I should use steel plate or something else thats only 10mm but solid mmmm

Any ideas or suggestions, and yeah I can change anything at this point (bar the existing large basket size) as I decide to ketch it out first before cutting mesh.

Dave

Find more posts tagged with

Tools and Materials

Decking and Paving

Building and Construction

Recycling and Upcycling

Comments

EricL

Hello @Dave-1

In theory if you copied your original step sizes it should technically work. I drew a quick render below, please have a quick look and tell me what you think. I suggest bending or cutting the mesh to your needed size rather than accommodating the mesh. This should make your step building less troublesome.

What timber were you planning to use? If you were to use a thinner piece like 40mm, it would lower the steps and make the step assembly shorter. The common timber tread available at the store is the 240 x 45mm 1.2m Stair Tread H3 Treated Pine Domestic Use.

If you need further assistance, please let me know.

Eric

Dave-1

https://www.workshop.bunnings.com.au/discussion/comment/38749#Comment_38749

Thank you @EricL

Yeah that sketch is pretty much what my ideal would be, The only problem is the ground level is mostly flat tho I can have a step up into the hill or dig some more out. Putting a cage on hand tamped soil can be done but id rather not. The only place I had to do it is under one of the big gabion cages across the front yard and it dropped maybe an inch in 2 ish years.

The mesh I have is 50mm by 50mm squares so the step height has to follow the 100mm or 150mm plus timber tread and work in multiples going up the steps.

With the timber treads I was going to make up the treads the same style as my bench seat for the gabion bench.

08 14-10-2023.jpg

I have plenty of old hardwood and want to use it for a similar look

09 14-10-2023.jpg

The timber pieces are there to give a levelness to the overall bench and also to allow for the spirals to be would on (in this instance)

09 07-10-2023.jpg

The steps are going to be around 800mm wide, maybe a little more. The intention is to drill a hole (and countersink) through the lengths, through the spacer and through the piece under the mess and then use a screw bolt to go down through all three. Or to give me that magic 50mm timber height for the step I find some flat steel bar with holes through it as long as the bar is close to 10mm (or 5mm) That way I can build the steps with the timber washer on the underside of the mesh, then come back and install the steps all the way up.

Might try and show a mockup if its still sunlight out when i get home.

Dave

EricL

Hi @Dave-1

If you can do a mock up that would great, we'll get a much better idea for spacing and height.

Eric

Dave-1

https://www.workshop.bunnings.com.au/discussion/comment/38753#Comment_38753

@EricL

hahaha off to play in the mud! Well will be soon 🙂

Dave

Dave-1

https://www.workshop.bunnings.com.au/discussion/comment/81536#Comment_81536

Evening @EricL

Here is my mockup of the steps. The more I look at it and do the maths the mo9re I think If i keep to the 50mm tread height then I can make it work eaiser. I may raise the steps to 200mm height with a 300mm depth. Will do a mockup tomorrow of that. It will decrease the overall depth into the hill. I just need to see where the top most step will work out that way.

01 24-06-2024.jpg

So to make sense of the mock up.

50mm square mesh.

Steps work out to be 170mm high 100mm of mesh and 70mm of timber step. Mock up has 100mm of mesh and 45mm of timber step.

Steps are 300mm deep.

02 24-06-2024.jpg

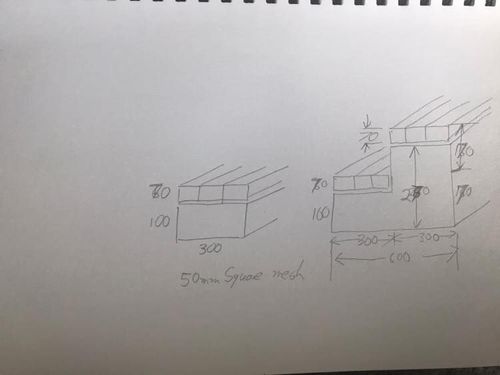

Second step 300mm of square mesh and 45mm of Timber, On the first step you can see two of 50mm mesh and then the timber step, If I have a timber slat under the three pieces of timber it raises it by another 22mm
