How to fix the drawer bracket?

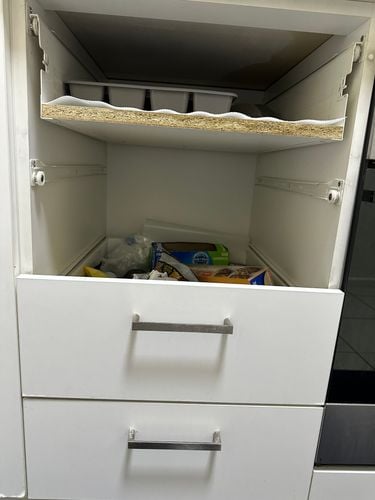

Can someone please tell me how to fix or unscrew and screw these on to the drawer? I have tried pushing these on to the drawer but it doesn’t stay put or click on the drawer. It stays loose.

Do i need to use glue or something? Any helpful videos please? Should i get a new one? Is it available at bunnings??

Thanks a lot.

Find more posts tagged with

Repairing

Accepted answers

All comments

EricL

Hello @amydroid7

Thanks for sharing your question about the Blum drawer clips. If I recall this particular model has a cover that is clipped on and is hiding the screw that tightens the spring-loaded hook. I suggest trying to remove the cover by trying to either slide or lift the cover off. Should you succeed, you'll be able to see the screw that tightens the assembly.

Please note that if the clip refuses to come off, please do not use excessive force. Allow me to contact our supplier and make inquiries regarding the drawer clip. As soon as I have more information, I'll get back to you.

Thank you for your patience.

Eric

amydroid7

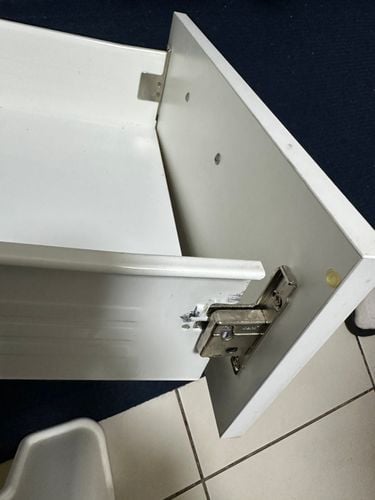

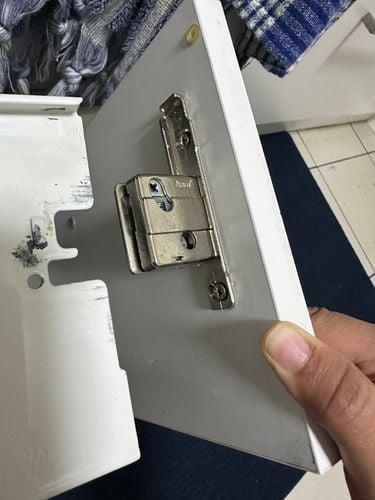

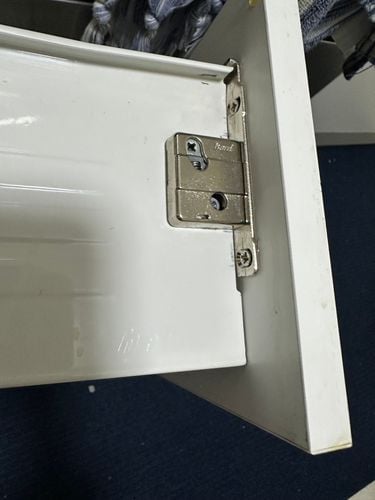

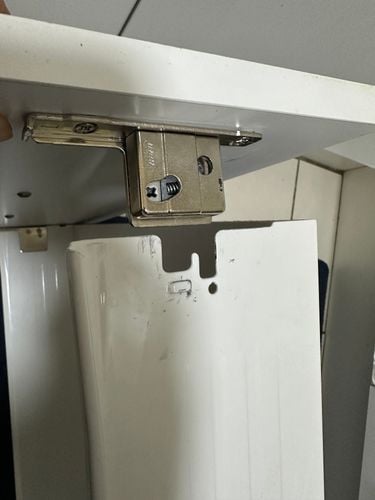

Thank you @EricL for your detailed response. Actually it is not the Blum drawer clips. It is some Harn Impaz brand (outdated version). I have a broken one (see the images) looks like it’s not the clip-on kind of drawer bracket.
Any idea if the Blum one would fit if I replace it with that one?

EricL

Hello @amydroid7

I suspect that a Blum Front Fixing Bracket for METABOX Drawer Slide might work with your drawer set. I suggest bringing the old drawer clips along with your drawer and testing it at the shop to make sure that it fits.

I propose speaking to the hardware specialist at the store as they will be able to identify and find out if the Blum set will work on your drawer sides. Please make sure to bring your drawer front as well to determine if the front bracket spacing is also compatible.

If you have any other questions we can help with, please let us know.

Eric

amydroid7

Sounds like a good idea. I was gonna bring the bracket only but thanks for suggesting to bring the drawer.

Thanks again @EricL ☺️ appreciate your help.

amydroid7

@EricL Thanks for your suggestion.

Just an update that it might be helpful for anyone else:

I got the Blum brackets (image attached). And the drawers are sorted for now (even though the outside covering/bracket doesn’t really fit our drawers) but they are still a better and tighter fir than the original ones as one of the screw can be tightened to keep the face of the drawer attached to the drawer’s body.
I didn’t had to drill anything. The length was a good match.

thank you so much!

Note: I thought about getting the original ones but saw some comments on the YouTube that they don’t click-on even with everything in-place (proper alignment and new brackets etc). They might be cheap but they are faulty.

So I am glad that Blum ones are much better than those. thanks a lot Bunnings!

caiokf

I had the exact same issue. Tried the Blum Fixing but it did not work for me. The contents of the drawer are a bit heavy, and since the Blum bracket doesn't fit properly, it wasn't enough to hold the drawer. I made a 3D printed replacement part for the original and although it doesn't have height adjustment, it solved my problem. In case someone else would like to try: https://www.thingiverse.com/thing:6843975

MitchellMc

Welcome to the Bunnings Workshop community @caiokf. It's terrific to have you join us, and many thanks for jumping into the discussion.

What a novel idea and great use of 3D printing. It's amazing what problems you can solve with it.

We look forward to hearing all about your projects and plans around the home and garden. Feel free to reach out anytime you need assistance or have something to share with the community.

Please let me know if you have any questions.

Mitchell
