New House Build-Concrete Footings

BIM_Engineer

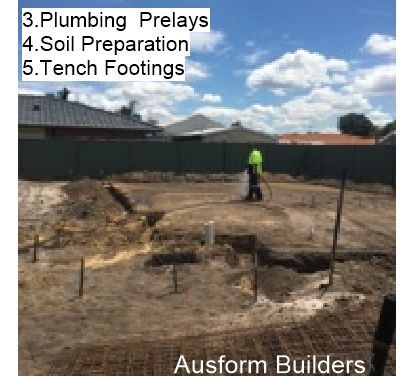

Siteworks and footings are the first stage of your build

I thought I'd share some of the new building photos, data and processes

Its great for linking in all the important info during your build

A special thank you to Shouri and Barry the Builder for sharing

If you require assistance post back or leave a PM

Cheers

Chris

Find more posts tagged with

Building and Construction

Comments

raymonda

Hi;

Thanks for sharing, it's interesting to see how different engineers design strip footings. How deep is the strip and the footings? When I did my build my engineer designed the strip to be 250-300 deep and the footing 600 or 400 if we hit roc, its for a suspended slab.

Strip footing before concrete pour

Block work before corefillSuspended Slab with bondek.

Jason

https://www.workshop.bunnings.com.au/discussion/comment/5215#Comment_5215

Thanks for joining in the discussion @raymonda. Great to see you make your first post. Let me tag @BIM_Engineer for you so he is alerted to your question.

Feel free to post anytime you need a hand or have something to share. We look forward to reading about your projects and plans. Also please let me know if you ever need help getting the most from the site, or have any feedback about how we can make Workshop even more useful to you.

Welcome to the community,

Jason

BIM_Engineer

https://www.workshop.bunnings.com.au/discussion/comment/64759#Comment_64759

In the coastal areas of Perth the sand soils are quite stable for building on, the single storey footings are 300 wide x 300 deep

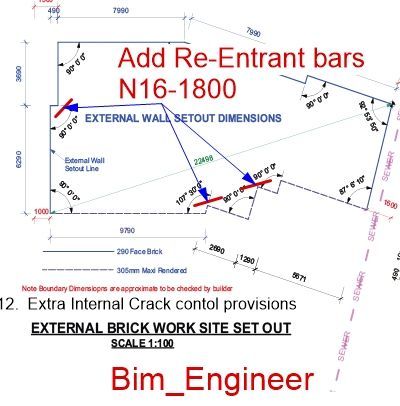

the added steel is for crack control as the client intends putting in large porcelain tiles

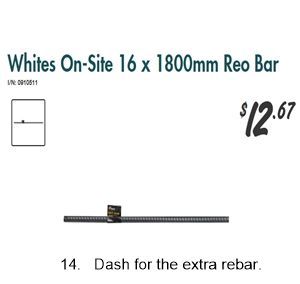

At an extra cost of a few $'s for the re entrant bars and upgrade mesh, it's well worth the extra,

The sand is also cheap enough to use as fill, I don't get a call for Bondek

Cheers
