How to mount a bar fridge on a brick wall?

jegan

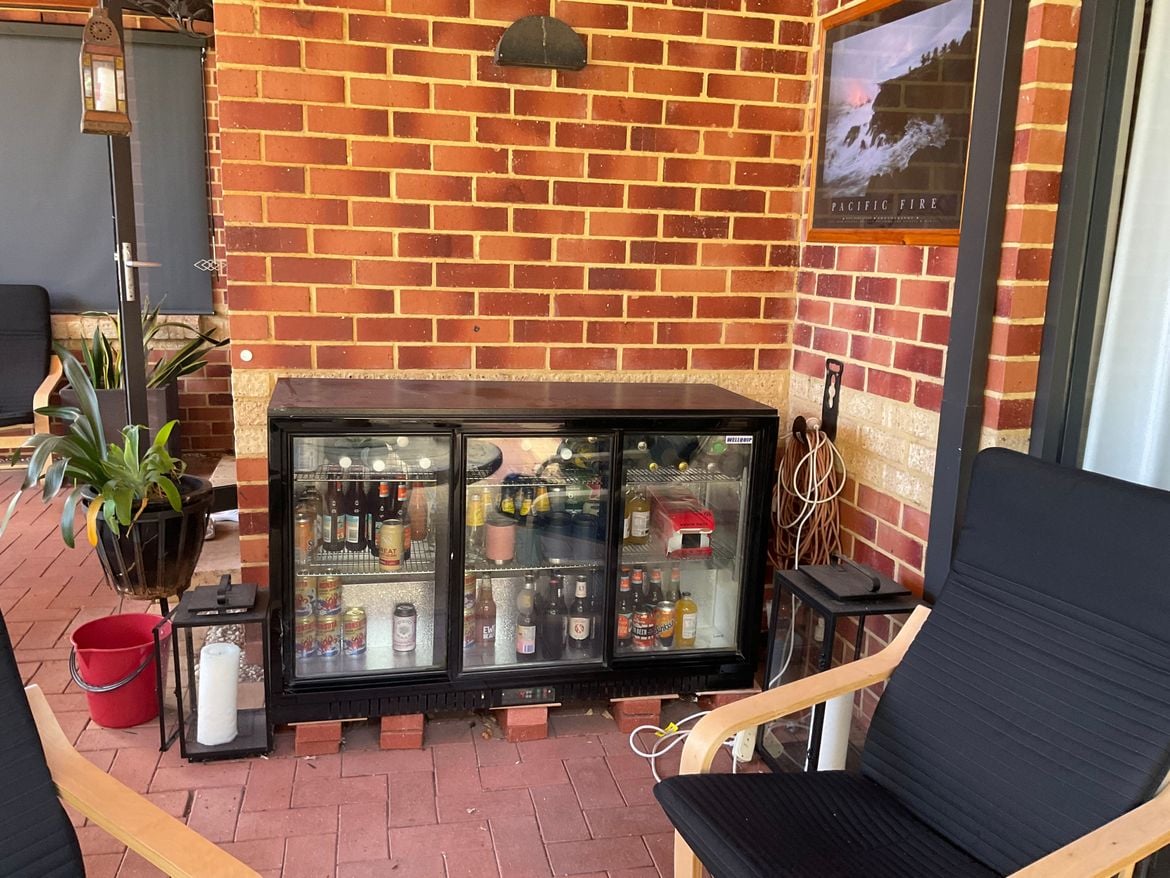

hi! I have an outdoor barfridge presently on the ground and I would like it mounted on the brick wall behind to provide more patio space

. I have checked with the manufacturer and they tell me it is done. It is pretty heavy approx 100-200kg??

Can you tell me how to safely mount it please? What brackets and fixtures etc etc Will it need to be on a supporting shelf. Ideally I don’t want a cupboard under as it defeats the purpose.

Thanks

MitchellMc

Hi @jegan,

First, it's important to check if the manufacturer offers any specific instructions or mounting accessories for your bar fridge, as they would provide the safest and most secure method for mounting. If they don’t offer any solutions or mounting options, you would need to design and build a custom support structure. Given the fridge's weight (around 100-200kg), you'll need a sturdy shelf and strong brackets. I recommend using heavy-duty steel brackets and 19mm plywood for the shelf, which will provide the necessary support. The brackets should be secured to the brick wall with Dynabolts to ensure a strong, stable connection. You’ll also need to make sure the shelf is large enough to support the entire fridge, leaving enough space for ventilation around the appliance.

Install at least four heavy-duty brackets, ensuring they are rated to hold at least double the fridge’s weight. The brackets I've linked to above are rated at 400kg each. Mount the brackets securely to the brick wall using Dynabolts. Ensure the wall can handle the load, and if unsure, consult with a professional for wall integrity.

Also, the fridge itself must be attached to the wall, which might require custom bracketry. This ensures it can't topple forward and cause a crush injury.

If you are not confident with the installation, even in the slightest, I recommend you enlist the services of a professional to assist.

Please let me know if you have any questions.

Mitchell
