Steps
Step 1
A sliding saw that can lock in the tilt and the miter angle, with a g clamp s a stopper.
also a separate angle measuring device to double check the slide saw settings.
Step 2
Someone else sent a picture of their doves at feeding time.
Step 3
Here I worked out the settings for the saw to cater for three floor boards slotted together. Tape was used the hold both sides together. Also tape going across from one slant to the next. The idea is placing 24 individual wood pieces in the correct spots all at once is hard. Tape gives when this is lifted up to get the ends to join. It’s like a set of simultaneous equations at once.
Step 4

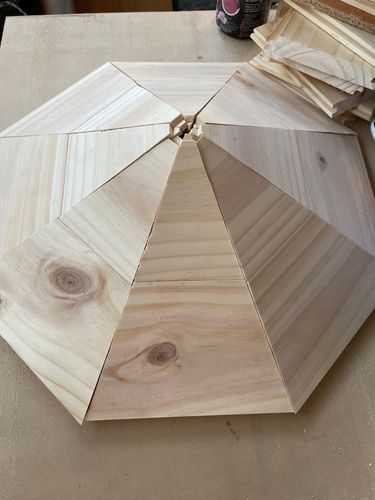

After glue was applied and the tape removed
Step 5
I’ll make another roof out of 0.3mm aluminium, to protect the wood.
Step 6

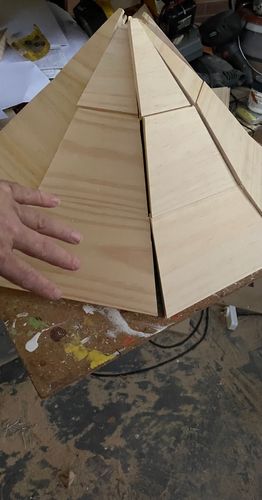

Holding 24 segments in place at once is hard.
Step 7

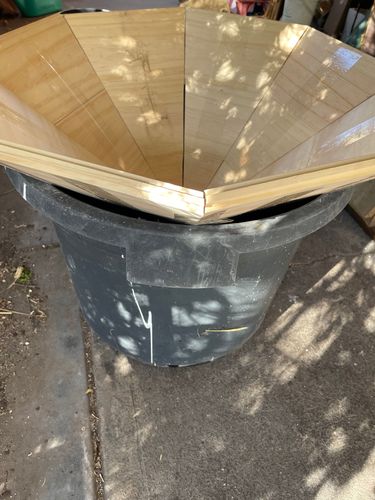

Here, using a larger pot to hold the segments flush under their own weight.
Step 8
Here a roof at a shallow angle to get away with using two floor boards on each side. Didn’t look right for a dovecote.
Step 9

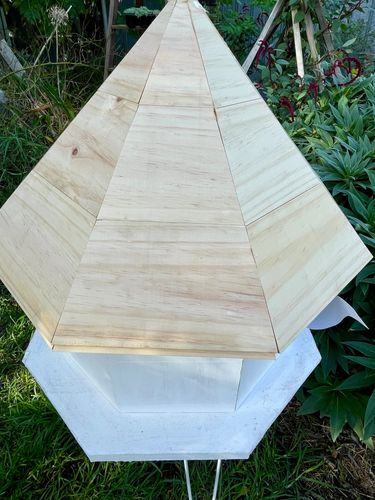

Here a 32degree angle was too shallow, so opted for 42 degrees. Worked it out knowing the length of three boards and the required over hang to work out the angle using trigonometry. The mitre and tilts using a table on line.
Step 10
Thinking of using cut out doves. White plastic.
