Feature fences

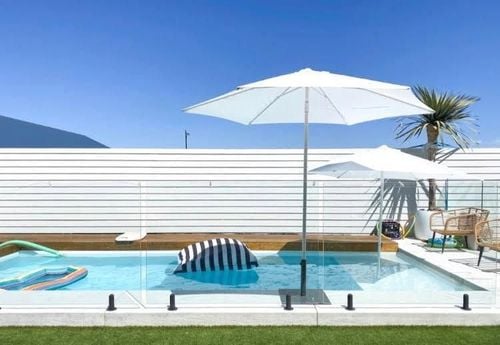

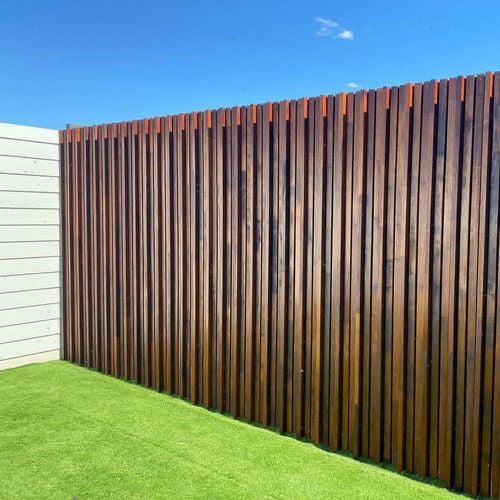

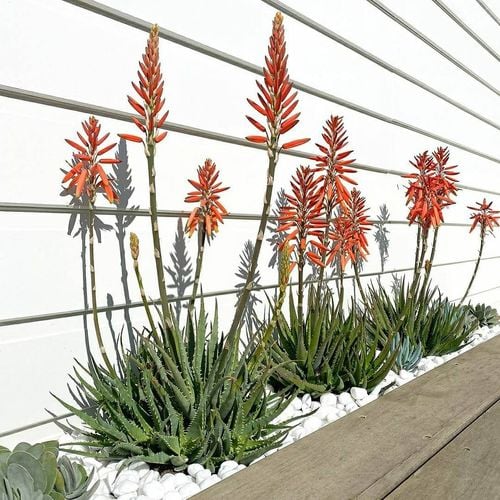

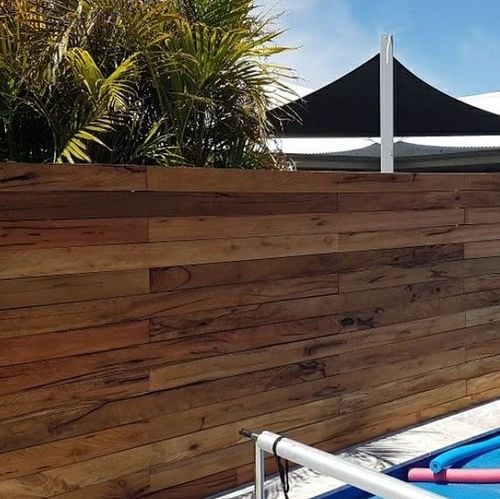

Now I've done 4 different types of feature fencing in recent times, I thought I'd pop them all into one post to hopefully give some creative inspiration.

Some options are more challenging than others but all are within a DIYer's reach.

Hope you enjoy.

Find more posts tagged with

Building and Construction

Landscaping

Fencing and Screening

Other

Comments

MitchellMc

Simply outstanding Pete (@ProjectPete)!

You've really nailed every visual element there perfectly. The warmth of the timber versus the stark contrasting white walls is amazing. Even with your well above average D.I.Y. skills I am still impressed you've pulled this off.

I'm sure that you'll have many members asking about how they too can achieve a similar result.

Congratulations and many thanks for sharing.

Mitchell

jonathan_adolph

Hi Pete,

These look great! I am looking at potentially using Axon Cladding to dress up my colorbond fence. At this stage, I believe I will need to build a separate treated timber frame in front of the fence so that the fence does not carry the load of the cladding. I've been looking for someone who has completed something similar and your work here seems close. Would you be able to share a bit more about your process and any potential tips?

Thanks,

Jonathan

MitchellMc

https://www.workshop.bunnings.com.au/discussion/comment/10148#Comment_10148

Welcome to the Bunnings Workshop community @jonathan_adolph. It's fantastic to have you join us and many thanks for your question.

Let me mention @ProjectPete so he is alerted to your question as I trust he would be happy to provide some more information and some tips.

We look forward to hearing more about your project and we'd encourage you to let us know if you need assistance with it or would like to share with the community. I trust you'll find loads of inspiration, just like this fantastic project, within the community as our creative members are sharing their work here all the time.

Mitchell

ProjectPete

https://www.workshop.bunnings.com.au/discussion/comment/10148#Comment_10148

You're right @jonathan_adolph, you need to started with a timber (H3 pine) frame.

Generally the 70x35mm timber frame is best as it's strong and sturdy, preventing any flex from the cladding itself. There is 50x25mm but generally isn't sufficient for this type of cladding to be installed.

Waterproof the lengths being fixed along the bottom of the fence so they're protected.

Then it's a case of fixing the timber frame to the Colorbond frame (never the sheets) and installing per the James Hardie guide re centres, noggins, etc.

diy_hausdesigns

This is incredible. You really created a unique space there. Love the colour palette and the overall design!

Nice job @ProjectPete

ProjectPete

https://www.workshop.bunnings.com.au/discussion/comment/10155#Comment_10155

Thanks very much @diy_hausdesigns - it's all coming together nicely. Currently planning my cabana for the corner. Looking to use breeze blocks, timber frame, the same Merbau cladding for the roof allowing the light to shine through, concrete bench seating, etc.

diy_hausdesigns

https://www.workshop.bunnings.com.au/discussion/comment/67436#Comment_67436

That sounds good and complementary to your work so far. Can't wait to see it !

jonathan_adolph

https://www.workshop.bunnings.com.au/discussion/comment/67432#Comment_67432

@ProjectPete thanks so much for the advice! Really helps! Hoping to get started sometime soon!

Thanks again! Jonathan

ProjectPete

https://www.workshop.bunnings.com.au/discussion/comment/96583#Comment_96583

No worries @jonathan_adolph and feel free to reach out with questions any time.

Example of frame for the shiplap style cladding.

jonathan_adolph

https://www.workshop.bunnings.com.au/discussion/comment/114919#Comment_114919

@ProjectPete thanks so much for the photo, that is very helpful!

Jason

Followers of this discussion might like to check out @ProjectPete's new step-by-step guide How to add an extension to a Colorbond fence

Hope you find it useful.

Jason

Itai

https://www.workshop.bunnings.com.au/discussion/comment/114919#Comment_114919

Hi @ProjectPete

These look great. How did you fix that frame to the colourbond? Just screws, or bolts? A bit hard to see in the photo.

Also, what is the frame resting on? Looks like some more timber? And what did you do to waterproof the bottom of the frame? Did you add drainage holes in case water gets in some how?

Also, how did you make the wall behind the Cactus? Is that a frame with Fibre Cement Sheets? Is it rendered, or texture paint? Thanks

ProjectPete

https://www.workshop.bunnings.com.au/discussion/comment/125369#Comment_125369

Thanks @Itai

Frame fixed to fence with 14g Metal Teks bugle screws.
Frame doesn't rest on anything, fixed direct to top and bottom fence rails.
I use a Crommelins waterproofing agent - only required for bottom of frame as it's installed close to ground. Avoid it actually touching the ground.
Drainage holes not required.

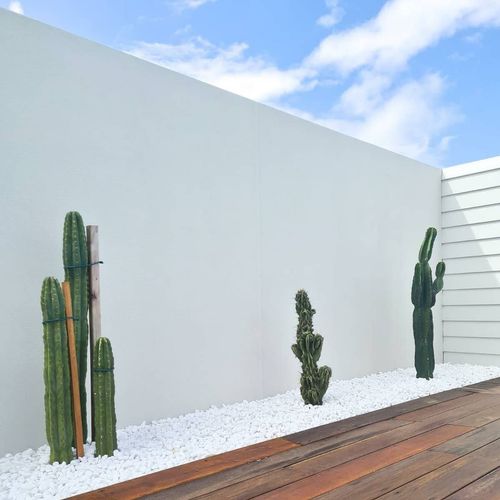

The cactus wall are Hardiflex sheets painted with Dulux Fine Cover Texture paint tinted Colorbond Surfmist. Prime it first.

Hope this helps 😀

MitchellMc

https://www.workshop.bunnings.com.au/discussion/comment/132281#Comment_132281

Hi @ProjectPete,

Do you have any concerns about the additional weight on the fences? I was trying to convince my mother to do something like this at her house and described how I would fix the frame. I had presumed the frame and cladding weight was supported from the ground, and they were merely pinned back against the fence. She was concerned that might not be great for the fence, but you're saying the entire weight is born by the fence? Even I'm surprised by that, but I trust your expertise.

Either way that's great to hear, as once I explain how you actually constructed it I'm sure she'll be happy with me just pinning them back to the fence for extra security.

Mitchell

Itai

https://www.workshop.bunnings.com.au/discussion/comment/132281#Comment_132281

Thanks @ProjectPete

That's really helpful 🙂

I assume you ran some hardiflex along the top as well. How did you seal where the two hardiflex sheets meet, and how did you sell between the top and the colourbond fence, or did you not seal that part and it's be fine that water gets inside the frame due to the corrugated profile it's resting against?

Thanks

ProjectPete

https://www.workshop.bunnings.com.au/discussion/comment/136487#Comment_136487

I've never had an issue with affecting the structural integrity of the fencing @MitchellMc . The first one I did was about 5 or so years ago and it's still standing strong and true.

LiRey85

😳😱 seriously. This is my dream garden. Well done. It looks amazing

RebeccaJ

@ProjectPete

Hi Pete

The above projects look extremely elegant and professional. I am looking to hide my wooden fence behind cement cladding and need it to be secure enough to keep my pets confined to the garden. I am looking for a professional to install the cladding and wondered if you can help me.
I would truly appreciate your recommendations.

thank you .
Rebecca

North Dandenong, Victoria

Jason

https://www.workshop.bunnings.com.au/discussion/comment/30773#Comment_30773

Hi @RebeccaJ,

Welcome to the Bunnings Workshop community. We're pleased to have you join us and look forward to reading all about your projects and plans for around the house and garden.

I know @ProjectPete is based in Perth so is unlikely to be able to assist. If you are looking for recommendations on a tradesperson, we would always recommend you try a site like Airtasker or hipages. As Workshop is a community for people right across Australia and New Zealand, it is unlikely that there will be a member near you who can recommend someone suitable. It's best to go direct to a site that is designed for that purpose.

Jason

mich1972

@ProjectPete They are ALL beautiful fences. Do you need council approval when you are changing your fence ?

RebeccaJ

https://www.workshop.bunnings.com.au/discussion/comment/77850#Comment_77850

Hi Jason

Thank you 🙏🏾

Rebecca
