I used a $30 arch mirror from Bunnings as the main component in this project to create a stylish and unique shaving cabinet. The shaving cabinet is a practical and esthetic storage solution for any bathroom. I made 3, 2 for my ensuite and 1 for our powder room
Materials
Mirror Arch frameless 0.6x60x90mm
Melamine board
https://www.bunnings.com.au/2400-x-1200mm-16mm-melamine-particleboard-white-matt_p0097412
Melamine edging white
https://www.bunnings.com.au/21mm-x-10m-melamine-edging-white_p0290017
1 pair of soft close hinge
https://www.bunnings.com.au/blum-110-soft-close-full-overlay-hinge_p4160514
Liquid nails for mirrors
https://www.bunnings.com.au/selleys-310g-liquid-nails-mirror-metal-and-glass-adhesive_p1231848
Chipboard screws
Stick on kitchen screw caps
https://www.bunnings.com.au/kaboodle-stick-on-kitchen-screw-caps-100-pack_p2661998
Surface Gard
https://www.bunnings.com.au/surface-gard-8mm-clear-round-rubber-bumper-25-pieces_p0262216
Tools
Circular saw or table saw
Jig saw and blade
Melamine edging (Stanley knife or cutting tool, iron)
Drill + bits
Caulking gun
https://www.bunnings.com.au/dripless-300ml-heavy-duty-caulking-gun_p1662783
Concealed hinge jig
Corner clamps
Steps
Step 1

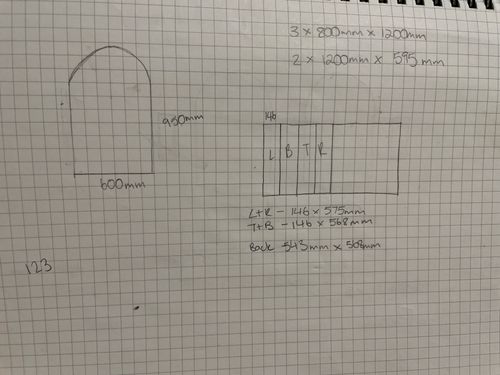

First, I devised a plan of measurements that would fit the arch mirror. 600mm x 950mm
Cut list
2 x 146mm x 575mm
2 x 146mm x 568 mm
Back panel 543 x 568mm
Step 2

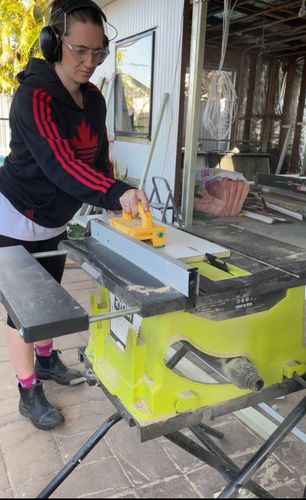

Using a mitre saw or table saw with a blade suitable to cut melamine (you can also add tape along your cut line to reduce tear away), I cut all the pieces to size
Step 3

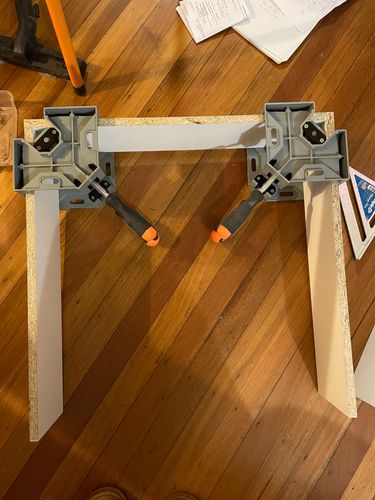

I used corner clamps to create the box, and with pilot holes and chipboard screws, I screwed it together.
As long as it is squared, you can add your back panel. TIP: If it doesn't fit perfectly, you can always sand down the edges of melamine and gap-fill the corners for a seamless finish.
Step 4

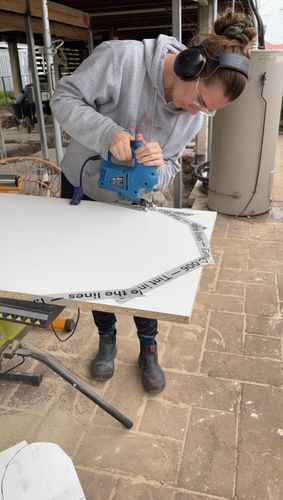

I added tape and then traced around the mirror onto melamine and cut the arch shape using a jig saw and the right blade for melamine.
Step 5

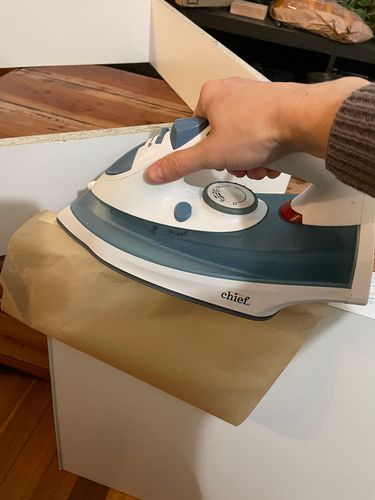

Using an iron and melamine edge banding I followed the direction, and I found using a Stanley knife and 240 grit sand paper to clean up the edges worked better than the fancy tool.
Step 6
Optional step!

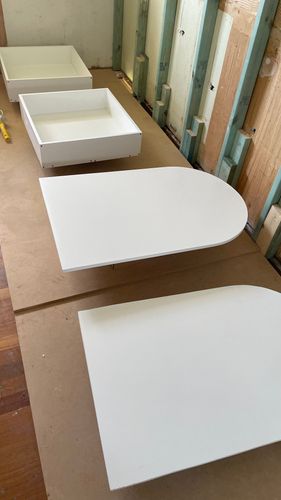

This was my first time working with melamine, and it wasn't the professional finish I wanted, so I decided to paint the melamine to cover up imperfections. I first used BIN Primer and then Dulux aquanamel in semi-gloss.
Step 7

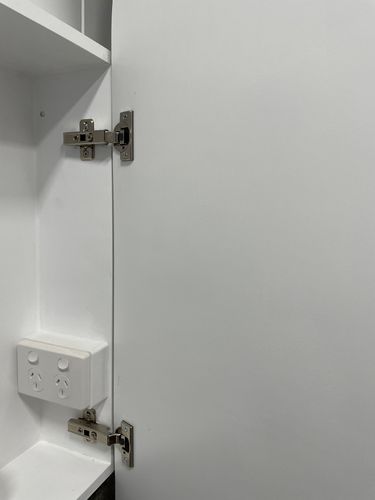

After figuring out where I wanted the hinges to sit and where I wanted the mirror to sit above the basin, I followed the directions on the hinge package. I had a hinge jig which made this step easier.
Step 8

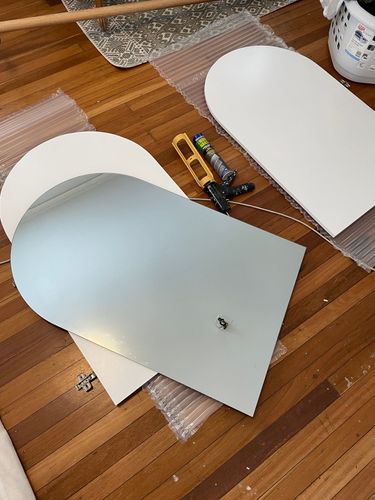

I followed the directions on the liquid nails and glued the mirror to the melamine arch, and prayed that it held 😕
Step 9

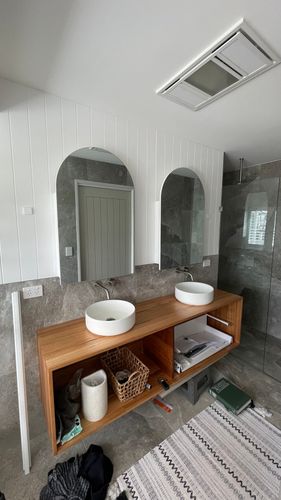

I installed the mirror after it had cured and fiddled around with the hinges to get everything aligned, and TA-DA, it is DONE!
.... well I still need to add a shelf. I bought these clips, so it should be an easy install.
https://www.bunnings.com.au/taskmaster-5mm-pin-nickel-plated-metal-shelf-supports-10-pack_p0290585
