Leaking shower recess, waterproof and retile

Sidney7
Budding Contributor

Leaking shower recess, waterproof and retile

Decided it was time for a shower recess reno, upon removal of old 80's era tiles found was no visible waterproof membrane between shower tiles and plasterboard wall.

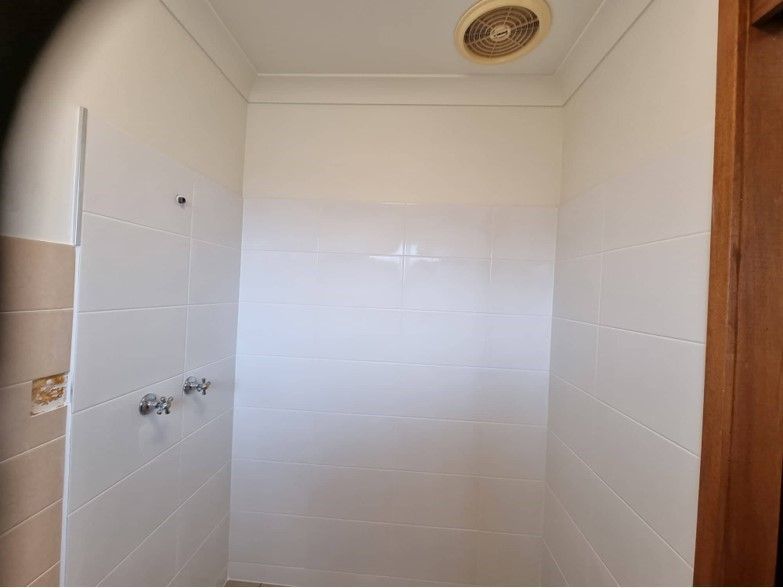

Brushable waterproofing membrane was applied and replaced 'drummy' shower tiles with Bunnings 'Duratile 60x30cm ceramic wall tiles.

Result looks fantastic.DSCN6399.JPGnew shower3.jpgnew shower4.jpg



EricL
Bunnings Team Member
Bunnings Team Member

Re: Leaking shower recess, waterproof and retile

Hi @Sidney7



Thank you so much for sharing those progress photos and the final result after tiling. Looking at the earlier photos without the waterproofing was a bit alarming. Had there been a major grout failure, it would have damaged your timber framing as well. Which waterproofing membrane did you use? How many coats did you apply? How much time did you spend on the entire project? My apologies for the many questions, I'm sure our members would appreciate any other details you can share about the renovation. Now that the project is finished, are there any tips or advice you would like to share with those who are thinking of attempting this kind of renovation?



Again, thank you so much for sharing your bathroom renovation, we look forward to seeing your next project.



Eric



See something interesting? Give it the thumbs up!
Reply
Loading...
KatieC
Member Engagement
Member Engagement

Re: Leaking shower recess, waterproof and retile

@Sidney7  what a great transformation! I also agree with @EricL  that it was alarming to not see waterproofing behind the original tiles!



Great job, looking forward to seeing more of your projects.



Katie

See something interesting? Give it the thumbs up!
Reply
Loading...
Sidney7
Budding Contributor

Re: Leaking shower recess, waterproof and retile

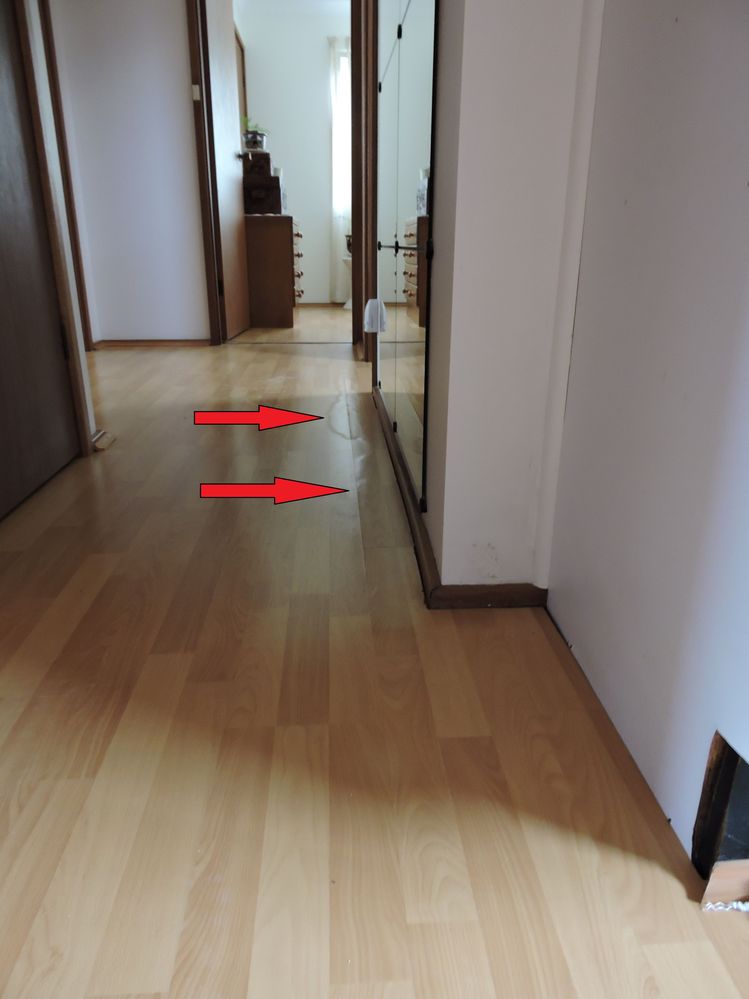

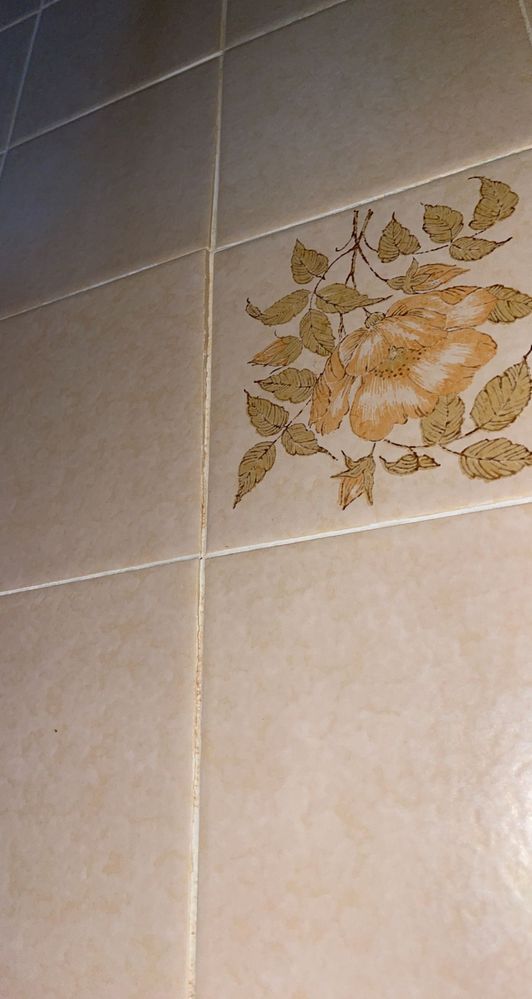

Yes it all began with noticing 2 strips of swollen bulged floating floor in the adjacent hallway. Upon removing the floor trim found damp and appearing to be coming from shower base perhaps. Bottom shower wall tiles were a tad swollen and 'drummy' when tapped and suspected grout failure.

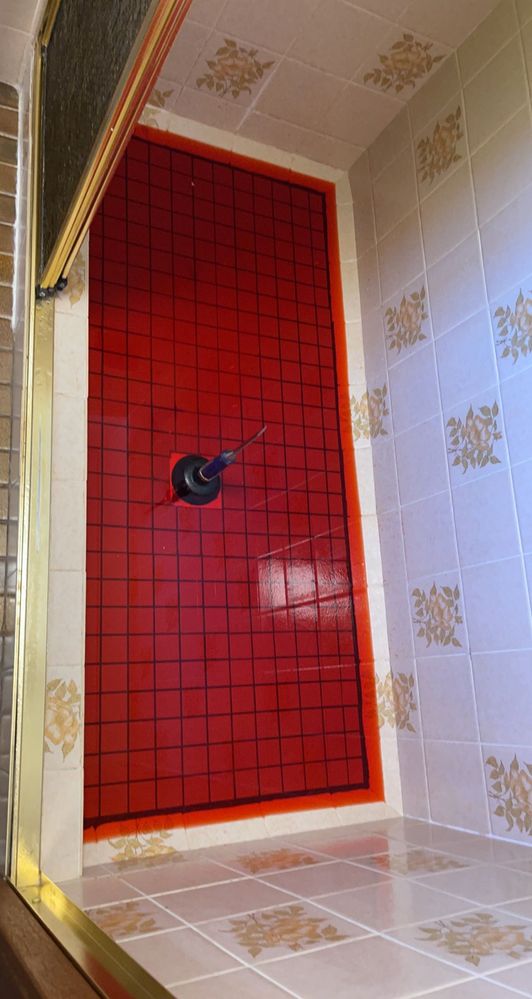

Pressure pipe test was ok and dye leak detection test showed failed grout and 'waterproofing' has allowed water to leak from the shower recess area when in use.

water damaged floating floorwater damaged floating floorwater leak dye testwater leak dye testunsealed grout failureunsealed grout failure



Reply
Loading...
MitchellMc
Bunnings Team Member
Bunnings Team Member

Re: Leaking shower recess, waterproof and retile

It's a good thing you picked up on the issue before the leak did any significant damage to the framework @Sidney7. Well done on your waterproofing and tiling job. It looks fantastic.



Mitchell



See something interesting? Give it the thumbs up!
Reply
