How to build simple woodworking joints

MitchellMc
Bunnings Team Member
Bunnings Team Member

Simple woodworking joints.png



Woodworking joints are essential for building sturdy timber projects such as tables, picture frames and shelves.



Beginners should become familiar with these basic woodworking joints to help you assemble well-made furniture and other timber creations with confidence.



Butt joint



The butt joint is one of the simplest woodworking joints, where two pieces of wood are joined by placing the end of one piece against the face of another. This straightforward joint aligns the end grain of one piece with the face grain of the other.

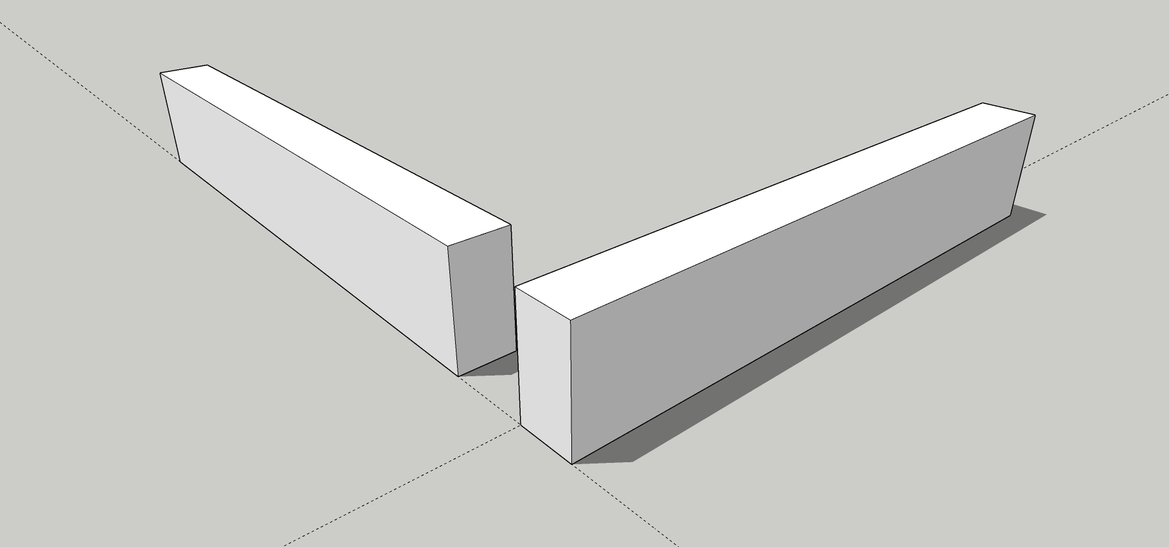

Butt open.png



Butt joint construction



To construct a butt joint, position the end of one piece of wood against the face of another. Secure the joint using wood glue, nails, or screws. Clamps are used to hold the pieces together while the glue dries.



Tools required include wood glue, clamps, nails and screws.



Butt joint applications



Butt joints are commonly used in constructing simple frames, boxes and cabinetry. They are suitable for projects where high strength is not a primary concern, such as basic furniture including coffee tables, storage chests or nightstands.

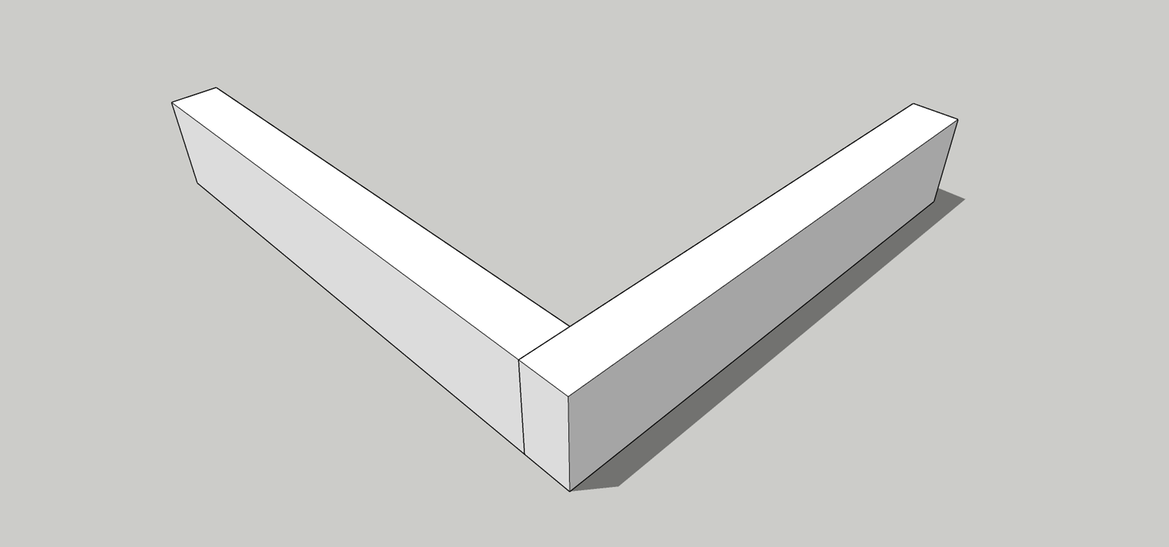

Butt closed.png



Strengths and weaknesses of using butt joints



The butt joint is easy to make and requires minimal tools, making it ideal for beginners. However, it can be relatively weak if not reinforced, especially in high-stress applications like a heavy dining table or a fully loaded bookshelf. In these cases, additional reinforcements such as screws, dowels, or corner braces are recommended for strength.



Mitre joint



A mitre joint is used to create a clean, angled corner by cutting the ends of two pieces of timber at a 45-degree angle. This joint results in a neat, professional-looking finish.

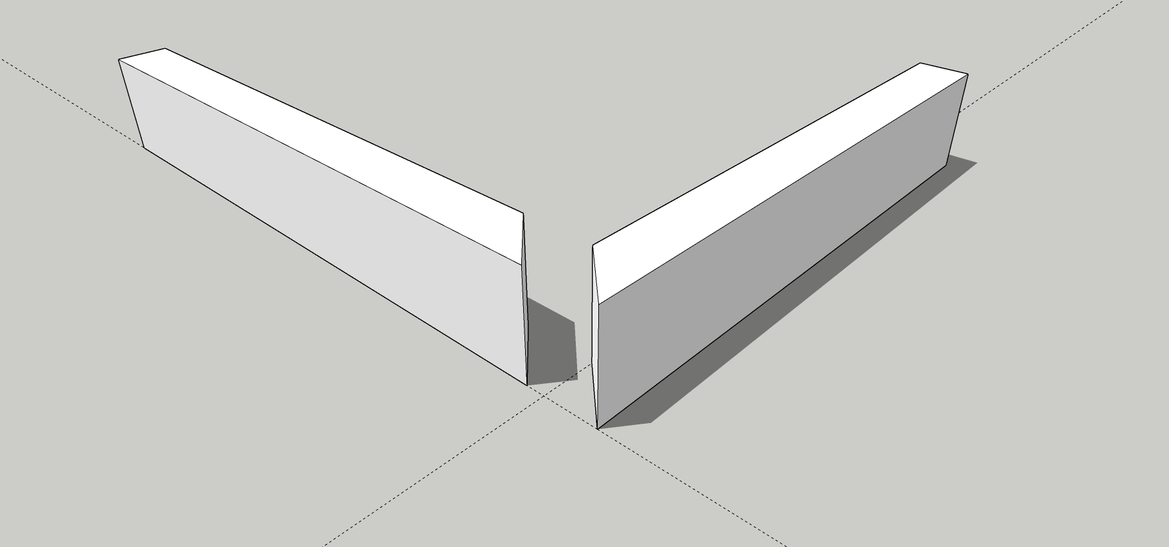

Mitre open.png



Mitre joint construction



To create a mitre joint, cut the ends of both pieces of wood at a 45-degree angle using a mitre saw or a mitre box. Align the angled cuts and apply wood glue before clamping the pieces together to ensure a tight fit.



Tools required include a mitre saw or mitre box, wood glue and clamps.



Mitre joint applications



Mitre joints are frequently used in picture frames, door casings and other projects where a neat and professional appearance is desirable. They are ideal for any project that requires precise, aesthetically-pleasing corners, such as custom cabinet trim, mirror frames, or decorative mouldings.

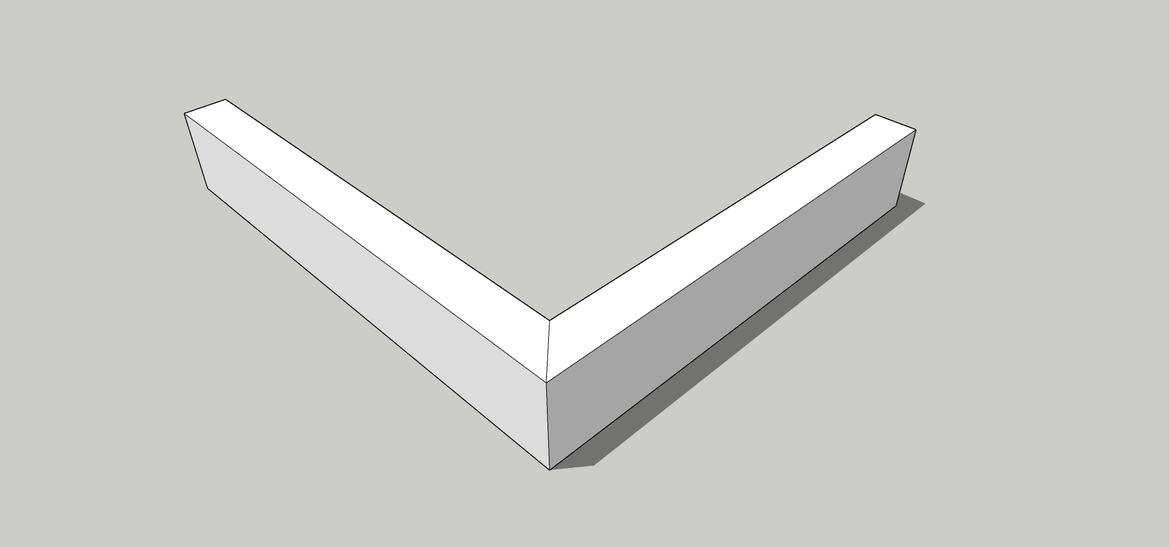

Mitre closed.png



Strengths and weaknesses of using mitre joints



Mitre joints offer a clean and finished look, making them suitable for projects where appearance is important. However, they may lack strength if not reinforced, as the end grain of the wood is not interlocked. To reinforce mitre joints, you can use techniques such as adding dowels or corner brackets to improve durability and strength.



Dowel joint



The dowel joint involves using small cylindrical rods called dowels to connect two pieces of wood. This joint provides both alignment and additional strength.



Dowel open.png



Dowel joint construction



To create a dowel joint, drill corresponding holes into the edges of both wood pieces. Insert dowels coated with wood glue into these holes, then align and clamp the pieces together until the glue sets.



Tools required include a doweling jig, drill, dowels, wood glue and clamps.



Dowel joint applications



Dowel joints are frequently used in furniture construction, cabinet making and projects requiring precise alignment and strength. They are particularly useful for joining panels and frames where accuracy is crucial. For example, dowel joints are commonly used in dining tables, wardrobes and modular bookcases. They ensure precise alignment and strong, reliable connections.



Dowel closed.png



Strengths and weaknesses of using dowel joints



Dowel joints offer strong, accurate alignment and enhance the joint's stability. The precise placement of dowels improves strength and durability. However, achieving a successful dowel joint requires careful drilling and alignment, which can be made easier by using a doweling jig for precise hole placement.



Biscuit joint



The biscuit joint uses small, oval-shaped wooden pieces called biscuits, which are inserted into slots cut into the edges of the wood pieces being joined. This joint aids in alignment and adds strength.

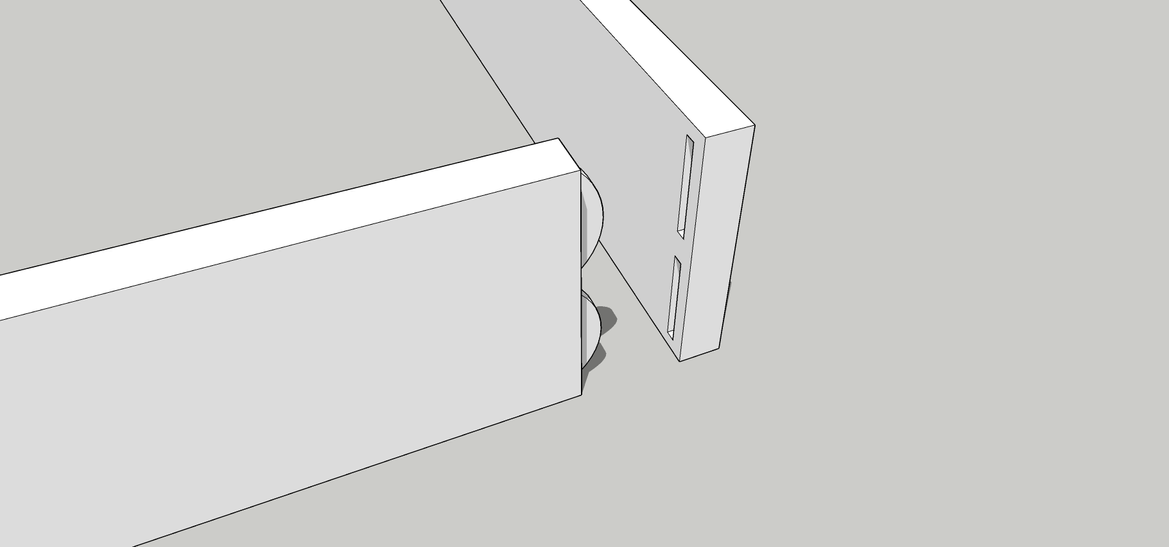

Biscuit open.png



Biscuit joint construction



To create a biscuit joint, use a biscuit joiner to cut matching slots in the edges of the wood pieces. Apply glue to both the slots and the biscuits, insert the biscuits, then clamp the pieces together while the glue dries.



Tools required include a biscuit joiner, biscuits, wood glue and clamps.



Biscuit joint applications



Biscuit joints are ideal for joining large panels, such as dining tabletops, constructing a cabinet door, or joining wardrobe panels. They are useful for edge-to-edge and end-to-end joints where precise alignment is important.



Biscuit closed.png



Strengths and weaknesses of using biscuit joints



Biscuit joints provide excellent alignment and added strength, making them effective for larger assemblies. However, they require a biscuit joiner and accurate slot cutting for optimal results.



Lap joint



The lap joint involves overlapping two pieces of wood and removing a portion of material where they overlap to create a flush surface. This joint offers a larger bonding area.

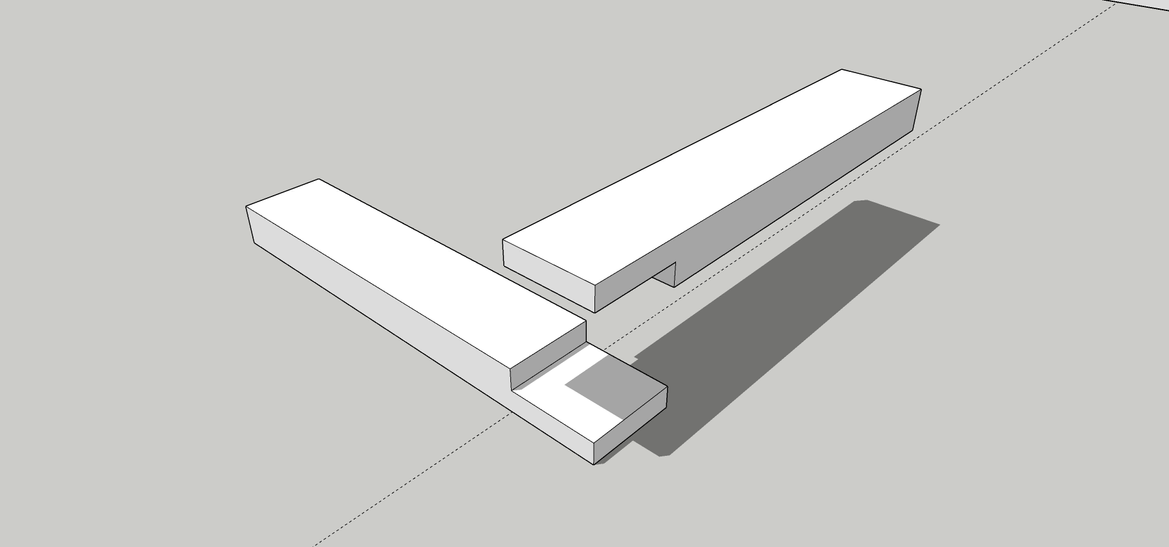

Lap open.png



Lap joint construction



To construct a lap joint, cut away parts of each piece of wood where they will overlap. Apply glue to the overlapping surfaces and clamp the pieces together until the glue sets.



Tools required include a saw (hand saw, circular saw or jigsaw) wood glue and clamps.



Lap joint applications



Lap joints are used in frame construction, furniture making, and structural components. They are particularly effective when building a coffee table frame, door frame or constructing a workbench. These joints provide a large surface area for gluing, making them ideal for projects requiring a strong and durable connection.

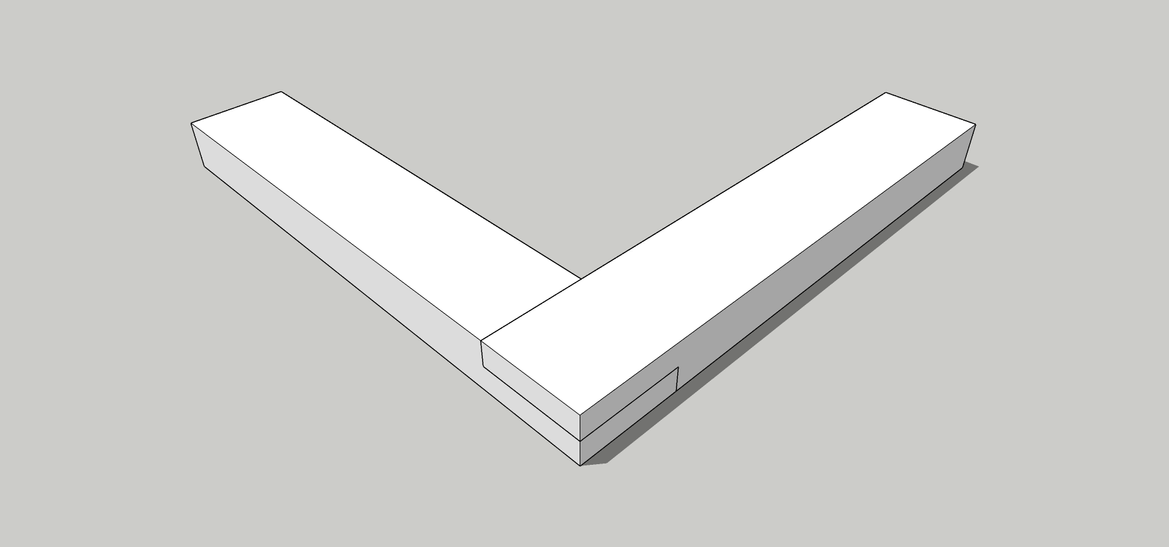

Lap closed.png



Strengths and weaknesses of using lap joints



Lap joints offer a strong connection due to the increased surface for glueing. They are particularly useful for structural applications where strength is crucial. However, precise cutting is required to ensure a flush fit, which can be achieved using a table saw with a guide, a mitre saw or a router with a straight bit for accurate, clean cuts.



How to build advanced woodworking joints



If you have mastered these simple woodworking joints and are eager to elevate your skills, exploring advanced joints is the next step.



These advanced woodworking techniques provide enhanced strength, greater precision and improved aesthetics, allowing you to create more sophisticated and durable projects. Check out our guide How to build advanced woodworking joints
