Brick pavers need an uplift

Susiegot
New Contributor

Brick pavers need an uplift

Hi our pavers have started to lose the grouting between them and when we did a section using M3 mortar from Bunnings the colour was inconsistent.  The next section is in a prominent position so we are reluctant to use the same product.  The pavers have an 8mm+ gap between them.  What product would you suggest and what process would you use ?Grouting replaced in this section but colour of mortar varies.Grouting replaced in this section but colour of mortar varies.

StevieB
Projects Editor
Projects Editor

Re: Brick pavers need an uplift

Welcome to the Bunnings Workshop community, @Susiegot. It's fantastic that you've joined us, and thanks for your question.



Let me mention @Yorky88 and @MitchellMc who can offer advice. Just note that @MitchellMc will be back on the site on Friday.



Keen to hear more about your projects around the house and garden.



Stevie



See something interesting? Give it the thumbs up!
Reply
Loading...
MitchellMc
Bunnings Team Member
Bunnings Team Member

Re: Brick pavers need an uplift

Hi @Susiegot,



I apologise for the delay in my reply. Are you referring to a colour inconsistency of the new mortar to itself or between the new and old mortar? If you are mixing batches of mortar from the same bag, it should be identical. It looks like you have some residual white stains on some of the areas, and scrubbing them back with a stiff bristle brush and cleaning up the area should resolve them. You'll also find the joints will age eventually to a more consistent colouring.



If you are referring to the difference in colour between the new and old mortar, then there will be differences, which results from patching the area. I'd suggest the first thing you do is to use a high-pressure cleaner and either Chemtech 5L Concrete And Driveway Cleaner or Bondall 5L Hydrochloric Acid to clean the old mortar joints. Please wear appropriate PPE gear when using these chemicals, including gloves, goggles and respirator if in a confined space. By cleaning the old mortar, it will restore it to its original light grey colouring.



If you are still having issues matching the older soiled mortar, you can add oxides to the new mortar to tone the colour down. Please bear in mind that the new mortar will age naturally over the next six months and end up much darker than it is now through natural weathering and grime build-up regardless of adding oxides. If you add oxides to make it the same colour as the older mortar, in 12 months and through natural ageing, it will be darker than the old mortar causing another issue.



It would be my opinion that the mortar you have used looks almost identical to the old mortar colour-wise. It just needs to go through a similar ageing process.



Please let me know if you need further assistance or have questions.



Mitchell



See something interesting? Give it the thumbs up!
Reply
Loading...
Susiegot
New Contributor

Re: Brick pavers need an uplift

HI

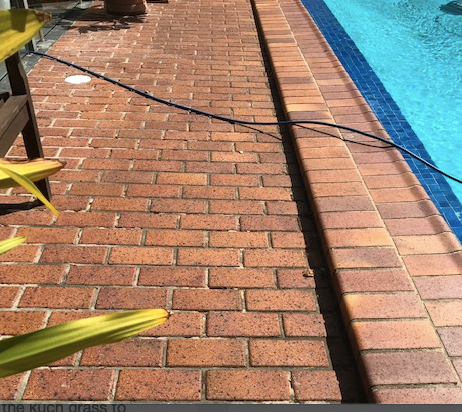

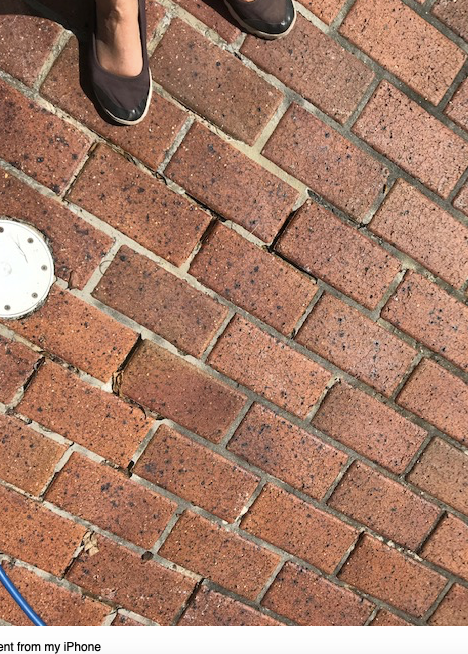

The white stains were part of the new grouting replaced recently, that was why I said the colour was inconsistent.  Even in a replaced long strip the colour varied.  Is the M3 mortar the right product for the grouting replacement?Screen Shot 2021-04-14 at 6.37.07 pm.pngScreen Shot 2021-04-14 at 6.37.50 pm.pngScreen Shot 2021-04-14 at 6.37.21 pm.pngScreen Shot 2021-04-14 at 6.37.33 pm.png



These photos are of the original paving.  We had the grouting fixed about 18 years ago and that grouting doesn't seem to be as stained with age as the original grouting.  Should we just use the M3 mortar and see how it goes?

Reply
Loading...
StevieB
Projects Editor
Projects Editor

Re: Brick pavers need an uplift

Hi @Susiegot,



Thanks for sharing those extra photos. @MitchellMc will be back on the site on Friday so he'll be able to help with your question then. Thanks for your patience in the meantime.



Stevie



See something interesting? Give it the thumbs up!
Reply
Loading...
MitchellMc
Bunnings Team Member
Bunnings Team Member

Re: Brick pavers need an uplift

Hi @Susiegot,



M3 is a mortar class used for general block laying around homes and should be suitable for this purpose. If you've used one of our mortars, I would be happy to contact the manufacturer to ensure it is the correct product.



The type of sand used in the mortar changes the colouring. Since mortar supplied from various localities uses different sand in manufacturing, the colouring can vary dramatically. However, new mortar is always going to be much lighter in colouring than old mortar. In some of your photos, the old mortar is quite stained and aged, appearing almost dark grey. I am not aware of any pre-packaged mortar that is dark grey. It would likely be best to add Avista Oxide 1kg Jet Black Cement Colouring to the mortar, toning the white down. As I previously mentioned, pressure washing the old mortar should lighten it. Hopefully, by darkening the new mortar with an oxide and cleaning the old mortar, you should meet somewhere in the middle and get a reasonable transition.



Mitchell



See something interesting? Give it the thumbs up!
Reply
Loading...
Susiegot
New Contributor

Re: Brick pavers need an uplift

Hi Mitchell

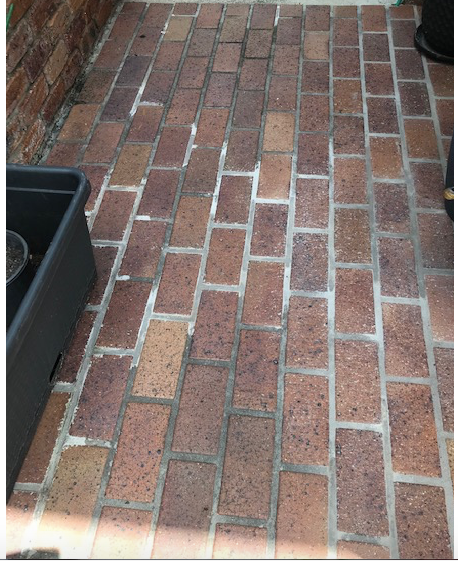

Thanks for trying to solve our paver issues.  We are planning to clean the old mortar.  If you look back at the first photo I sent, the areas of replaced grouting have white colour in the grouting.  Could this be from too much water in the mix (I didn't mix it myself) or water getting into the grout when wiping away the grout that spreads onto the adjoining pavers?  Section of paving regrouted recently.  Note the  white in the 'mix'Section of paving regrouted recently. Note the white in the 'mix'

Reply
Loading...
redracer01
Trusted Contributor

Re: Brick pavers need an uplift

Hello @Susiegot

Welcome to Bunnings Workshop. I suspect what you are seeing is a phenomenon called cement surface mottling. It often occurs in certain conditions.



Too much water in the cement mix

Inconsistent turnover of product with water.

The grout was worked over too much while in the drying process.

Too much water in the sponge and was trapped on top of the grout.

( giving you that lighter finish.)

The grout was overheated while curing.

Water got trapped at the bottom of the mix while grouting.



Don't feel bad, even professional tilers and cement specialist run in to this issue no one is spared.



To avoid mottling I advise working only in the cooler part of the day. Once the grout is laid do not rework it with the grout tool. Overworking is not good as well. Cover fresh grout with black builders plastic and keep cool by spraying with garden hose on top do not get grout wet. What we are trying to do is achieve a uniform drying finish. Uniformity in depth and laying is paramount as inconsistent levels also produce the effect your seeing. These are my best suggestions for this particular issue. I suggest using a light detergent and a stiff brush to see if you can salvage your fresh work. You can also try using a rubbing stone to scratch the surface of the grout to get a uniform finish. You may have to modify the stone so that it's the same width as the grout line. Good luck and stay safe.



Cheers,

Red








I am a Bunnings team member. Any opinions or recommendations shared here are my own and do not necessarily represent those of Bunnings.
Please visit the Bunnings website
if you need assistance from the Bunnings customer service team.


Reply
Loading...
MitchellMc
Bunnings Team Member
Bunnings Team Member

Re: Brick pavers need an uplift

@Susiegot,



As @redracer01 has mentioned, it could be because of several reasons. It does look like excess water on the surface has allowed the cement to creep out of the joins through the brick's pores. However, after the mortar replacement has been completed, a clean-up process needs to be done. Have you tried scrubbing the white areas down with a stiff bristle brush? It could just be a very fine coating of lighter mortar on the surface that needs to be brushed back. Some Chemtech 1L Brick Tile And Paver Cleaner will assist in this process as it is designed to help remove mortar slurry stains from bricks.



Mitchell



See something interesting? Give it the thumbs up!
Reply
Loading...
Susiegot
New Contributor

Re: Brick pavers need an uplift

Thanks Red. What do you do for consistency when you are basically patching the paving grouting like in my case?  There will be variations in the missing grout depth unless the grout is all removed and also old vs new grouting will vary.  Are you saying the variations in depth of the repair sections will cause the colour of the grouting in the repair grouting to vary due to the depth differences?  What product would you use?
