Garden bench seat

Jim57

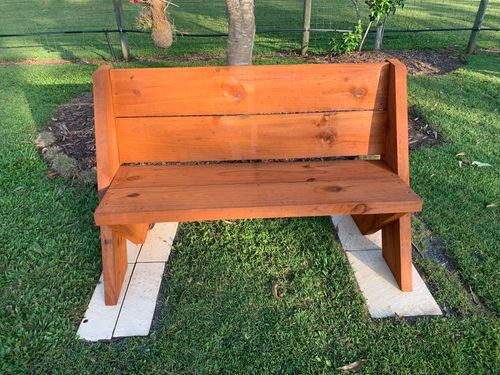

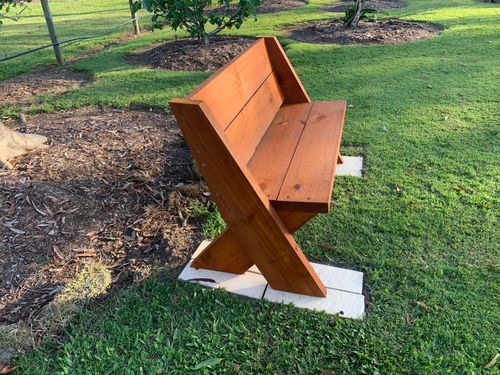

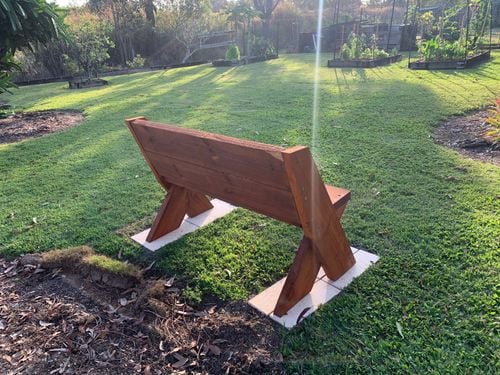

Gday just want to thank everyone for the advice on what to finish my garden bench seat with so it wouldn’t rot.

Purchased all my products for the entire job from Bunnings.

If anyone is interested in making one themselves just PM me and I will give details.

Next project birdhouse!

Find more posts tagged with

Tools and Materials

Furniture

Building and Construction

Painting

Comments

MitchellMc

Fantastic work, @Jim57; I love the design you've chosen. That tapered cut you've done on the backrest support really adds a nice contemporary touch.

I'm sure there will be plenty of members interested in building one of these, so if you could provide as much detail as possible here, that would be appreciated.

Well done, and I look forward to seeing what project you tackle next.

Mitchell

Jason

Well done @Jim57. We love it when community members come back and share their finished projects. It's very inspiring and helpful to others. If you could share as much detail as possible and what you learned along the way, I'm sure other members would really appreciate it.

Thanks again for sharing.

Jason

Remarka6le

@Jim57 this looks fantastic! You might want to consider posting the step by step publicly, I Know members would appreciate being able to follow your build instantly to create their own versions. Well done on this 🙂

Jim57

Please find a utube link which details the building of the bench seat .It’s gives details in imperial so you will need to convert to metric.

Please be aware when the guy in the video talks about the 2nd 30 degree cut in the longer leg he says 30 inches from the first 30 degree cut it’s actually 38inches.

https://youtu.be/IbRe74p3_Jo

Jason

https://www.workshop.bunnings.com.au/discussion/comment/23287#Comment_23287

Great work @Jim57, thanks for sharing a video. Members love seeing how projects were made in plenty of detail - really helps when wanting to replicate your handiwork.

Jason

RichardC

Hi,

I would like to make this outdoor seat as shown on the Bunnings DIY workshop site. The accompanying video clip gives all the instructions etc, but I'm wondering if someone could kindly forward me the plans with dimensions & angles etc?

Thanks in anticipation,

Richard

JacobZ

https://www.workshop.bunnings.com.au/discussion/comment/44798#Comment_44798

Hi @RichardC,

Thank you for your post and welcome to the Bunnings Workshop community it is wonderful to have you with us.

I have put the bench together in rendering software based on the video and created something you should be able to use. Note that I have converted everything from imperial to metric to make it as easy as possible.

Start by purchasing 4 x 2.4m lengths of 190 x 45mm H3 Treated Pine and a box of 75mm galvanised batten screws.

Cut two of your lengths of timber in half. You will now have 4 x 1.2m lengths that will make up the backrest and bench on the seat.

On one of the remaining 2.4m lengths of 190x45 you will make a 30° cut along the blue line in the below image.

Measure from the point of the angle 965mm along the board and cut at the same 30° angle. Repeat this twice so you have two timbers of this shape and length.

I have marked the measurements for the next cut in the next photo. Make this cut on both of these timbers.

On your remaining 2.4m length of 190x45, make a 40° cut.

From the sharp point measure down 483mm and make a 45° cut. Repeat the exact same cuts so you have two of these timbers.

You will have the following pieces ready to assemble.

Take the piece that will act as your support for your backrest and make a line between the points I have shown.

Take the cross piece and place it on this line ensuring the 45° cut is facing up and the bottom of the legs will both touch the ground on the same line. You can use a scap piece of timber to line them up. Screw them together.

Start by placing one of the 1.2m pieces so it sits 30mm in front of the sharp point of the supporting leg. Screw this piece to both legs.

You'll then screw the second bench piece behind this one with a gap of 3-5mm for expansion. You can then attach the two remaining pieces to act as a backrest and voila, you are all done.

Let me know if you have any further questions.

Jacob

RichardC

https://www.workshop.bunnings.com.au/discussion/comment/84518#Comment_84518

Thanks Jacob.

That will be very helpful & I appreciate all you did.

Thanks again,

Richard
