How to replace faulty Lytworx power adapter?

We have had our lights up for almost a year and they took some time getting right. We recently went to turn them on but they won’t stay on, rather flicker. We’ve tried lots of different trouble shooting and think we’ve narrowed it down to the power supply. we really don’t want to have to take all the lights down to return to Bunnings and hoping we can just get a new power adapter. Any ideas? 💡

Find more posts tagged with

Tools and Materials

Lighting and Electrical

Comments

EricL

Hello @blaister

Welcome to the Bunnings Workshop community. It's sensational to have you join us, and thanks for sharing your question about the Lytworx power adapter.

Would it be possible for you to post a photo of the back of the power adapter. It usually has details regarding its voltage output and number of amps it provides. I'll try and ask our electrical team at the store and see if spares are available for this type of power supply. As soon as we have more information, we'll get back to you.

Thank you for your patience.

Eric

EricL

Hello @blaister

I'm just following up in regards to the information printed on the power adapter of your lights. If you can provide us with a bit of information as to the voltage and amp rating of the adapter that would be very much appreciated.

Eric

blaister

https://www.workshop.bunnings.com.au/discussion/comment/45960#Comment_45960

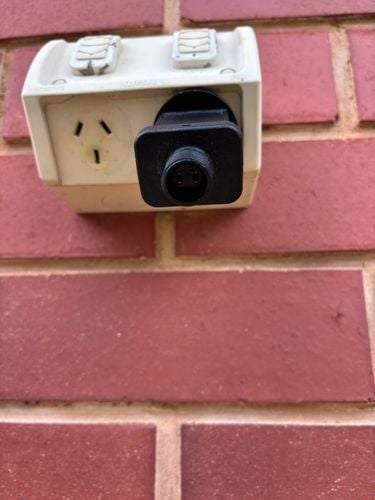

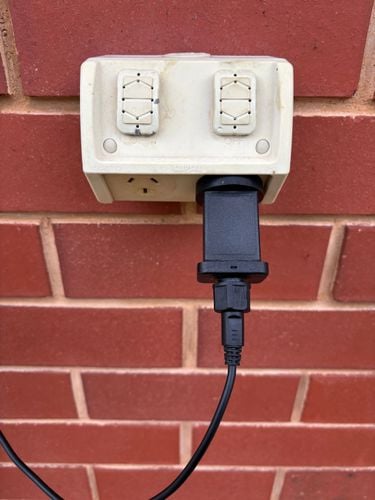

Hi EricL, thanks for your help. Attached is the photo of the details on the power supply.

Dave-1

https://www.workshop.bunnings.com.au/discussion/comment/85450#Comment_85450

Evening @blaister

Just to help out @EricL how long is the overall length of lights? And have you joined a few together?

Ive just "fixed" my mums Christmas lights, they are a few seasons old and the sun has done a decent job in pushing them to the limnit (limit was a bird chewing on the lights when mum didnt give the bird seed at the right time) If the lights are multiple sections joined together, maybe disconnect the second section (you prob have tried that already 🙂 ) and see if it still flickers.

Dave

blaister

https://www.workshop.bunnings.com.au/discussion/comment/107909#Comment_107909

Hi Dave, we just have the standard 30 glove length and haven’t joined any sets together. They are under our pergola, so are still in excellent condition. They are only a year old as we purchased last year for our New Year’s party. They’ve only been switched on a handful of times since purchased so we were disappointed when they wouldn’t work properly recently.

Dave-1

https://www.workshop.bunnings.com.au/discussion/comment/121213#Comment_121213

Thank you @blaister

🙂 Cool, I am sure that will help @EricL in figuring out the issue. Never good when things dont do what is expected of them 😕

Dave

JacobZ

https://www.workshop.bunnings.com.au/discussion/comment/121213#Comment_121213

Hi @blaister,

I have recently done some investigating for a similar issue in the discussion How to replace power supply for Lytworx 24 Warm White LED Café Lights?

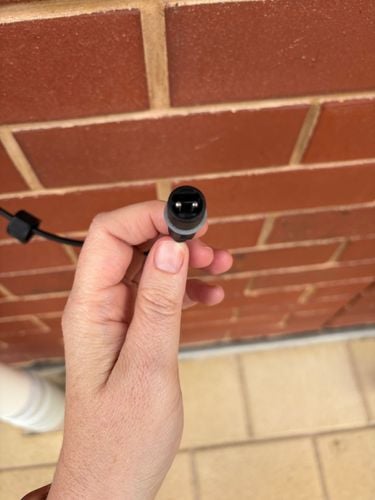

I found the Lytworx adaptor uses a slightly different pin than other 12V adaptors, meaning there was unfortunately no off-the-shelf replacement.

My suggestion is to contact our Spare Parts team for assistance with a replacement. If you can remember the exact lights that you purchased, this would certainly help them narrow down a replacement, but the photo you have provided would certainly be a start.

Let me know if you need assistance with this, I am happy to help if required.

Jacob

blaister

https://www.workshop.bunnings.com.au/discussion/comment/129531#Comment_129531

Hi JacobZ,

I contacted spare parts some time ago but haven’t heard anything back from them. How will I know if they can help? Will they email?

EricL

https://www.workshop.bunnings.com.au/discussion/comment/134908#Comment_134908

Hello @blaister

I apologize for the delay in service. The spare parts team should have emailed you if a spare power adapter has been found. Please allow me to get in contact with you through private messaging so that I can provide you with further assistance.

Eric

MitchellMc

https://www.workshop.bunnings.com.au/discussion/comment/134908#Comment_134908

Hi @blaister,

Have you discussed this issue with the store of purchase? I'd recommend you take your proof of purchase and the power adaptor into the Bunnings store and speak to a manager. Since the product is likely still under warranty and if you can explain the situation, I trust the manager will do their best to swap the power adaptor over.

Mitchell

angietiare

Hi there,

Really interested to know if you managed to find a suitable adapterreplacement? We are having the same issue, the adapter for our Lytworx Festoon lights (less than a year old) has blown. I've searched high and low online but can't find the exact specs, particularly matching the output voltage of 26V which is pretty crucial! All the other specs I can match.

I even contacted Dats Pty Ltd which was listed on the tag on the light lead itself, but no luck there.

Really hoping can just resolve the issue by getting another adapter! Seems simple enough 🤔 would be a shame to waste money, and the lights if we can't power them.

Cheers!

AlanM52

blaister

The faulty transformer secondary voltage is 24V DC and the wattage is 9W.

I = P/E

I = 9/24

I = 0.375A or 375mA (Transformer current rating).

With that bit of trivia out of the way let's move on.

Tools:

Multimeter.

Click Hobbyist Multimeter (0381004)

Cutters.

Strippers.

Knife.

Screwdriver set.

Terminal block - Deta 20A 12 Terminal Connector Strip (4332100)

Purchase:

24V 1A 24W Power Supply Adapter AC 100V-240V to DC 24volts Power Adapter Universal Switching 24V Christmas LED Light Strip


https://tinyurl.com/33894dys

(Or similar)

Cut the plug off the LED lights and strip the ends - twist together.

Cut the plug off the new transformer and strip the ends - twist together.

Cut off two terminals (pair) off the strip.

Polarity check:

We must connect power supply positive to LED wire positive.

Same for the negatives.

Transformer polarity check:

Make sure the transformer wires are separated.

Plug in and switch on transformer.

Set multimeter to DC 200 and check the wires.

If you get a negative reading swap the probes.

The transformar wire on the black probe is negative.

Identify that negative wire with a bit of sticky or masking tape.

LED lights polarity check:

Set the multimeter to diode mode.

Touch the red probe to one wire and the black probe to the other wire.

If the LED lights up, the probe that's touching the strip's positive wire is red (positive) and the probe touching the negative wire is black (negative).

If the LED does not light up, reverse the probes.

Mark the negative wire.

Connections:

Insert the transformer wires into one side of the terminal block.

Connect LED light wires the other side observing polarity.

Cheers

MitchellMc

https://www.workshop.bunnings.com.au/discussion/comment/52850#Comment_52850

Welcome to the Bunnings Workshop community @angietiare. It's sensational to have you join us, and many thanks for your question about festoon lights.

I'm sorry to hear you've had an issue with your lights. If your Lytworx Festoon lights are less than 12 months old, they should still be covered under the manufacturer’s warranty. I’d recommend returning both the lights and the adapter to the store you purchased them from, along with your proof of purchase. The team in-store should be able to assist with a replacement or offer a suitable solution.

Please let me know if you have any questions.

Mitchell
