Stormwater rectification stage 2

Dave-1
Community Megastar

Stormwater rectification stage 2

This is the second part of my stormwater rectification. Now that the side of the house had been done and I could access it again I needed to redo the stormwater pipe to the front of my boundary. I had calculated that the trench would follow the red line up the block but made a call to follow the old pipe as then I would know where it went for sure. The ground was mostly solid clay and full of large rocks plus builders ruble. I knew that the NBN line in and the power for the lights plus where the sewage pipes were. so figured it wiser to be cautious.

Materials

100mm PVC DWV piping 4 of

PVC Glue

Various angled fittings.

Screw top T piece (Inspection point)

15 degree bends PVC pipe



Tools

1800mm crow bar (Fencing bar )

 Shovel flat Long handled

Grinder

Mattock



Steps

Step 1

The second half of the stormwater went straight through the patio area. I was intending to save the area as much as possible but as soon as I started work through it, well dodgy bro inc must have been putting it in is all I can say. The stormwater pipe kinked to the left so I though I wouldn't have to remove the posts to the path and then realised the path would have to come up (it was all broken from age and having a tree being chopped down fall on it in sections)



01 06-07-2021.jpg

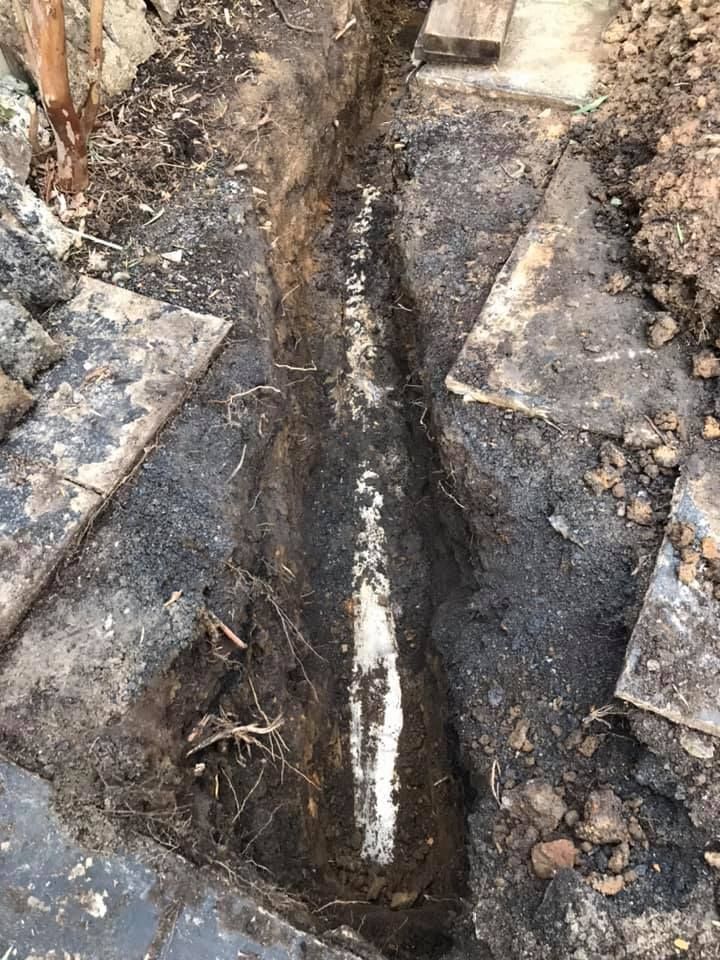

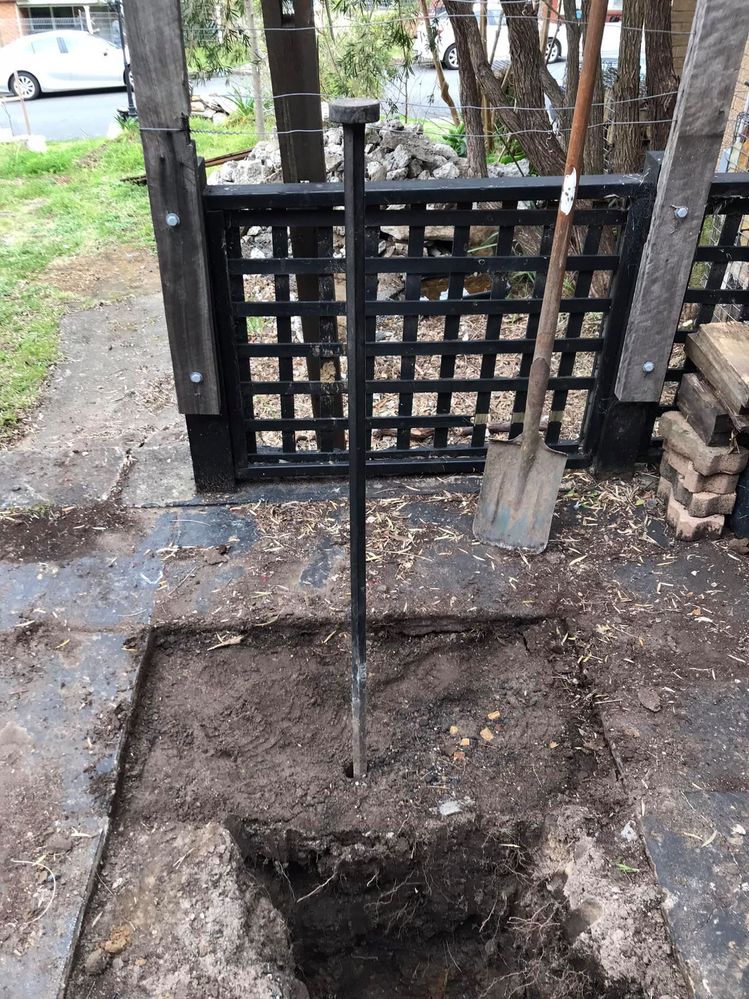

The shovel handle shows approximately where I though the pipe was heading... I had lined it up with the first foot/two foot of pipe I had unearthed...



02 06-07-2021.jpg

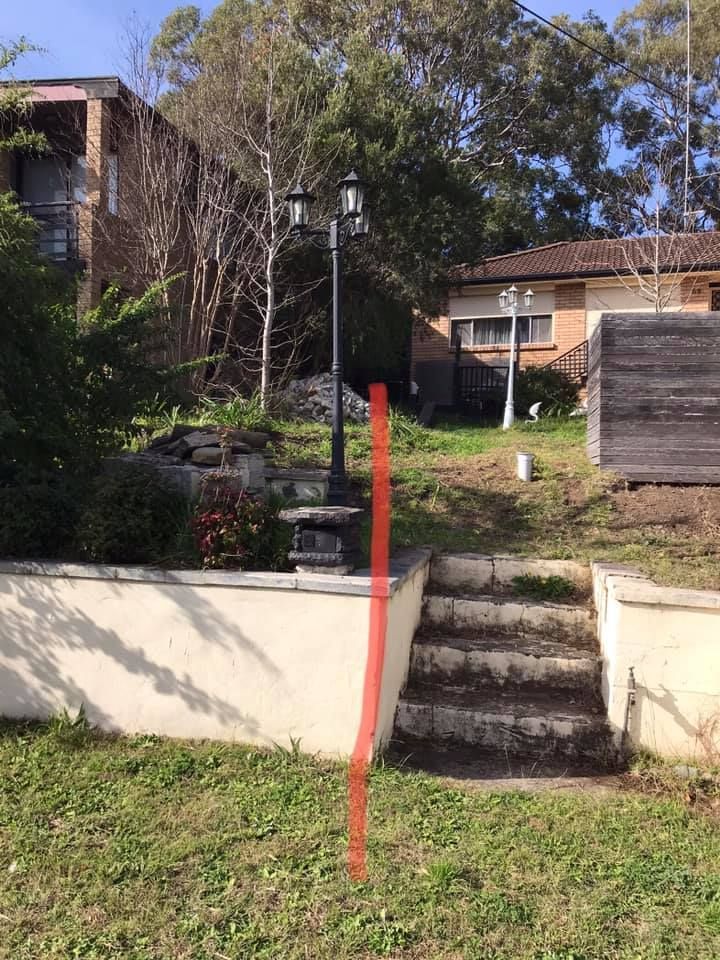

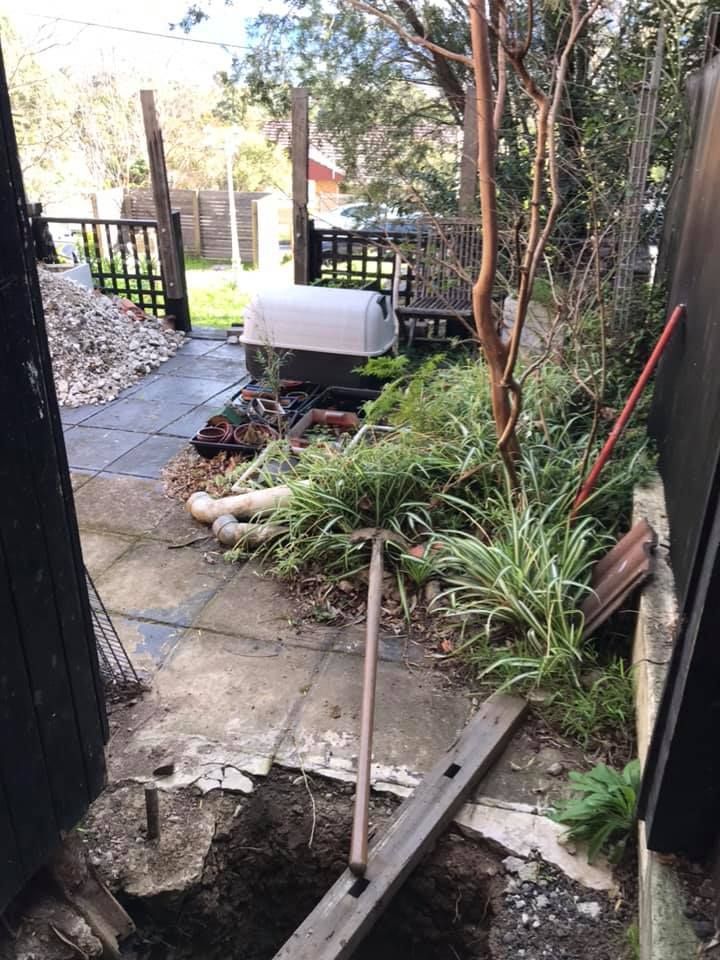

This is the direction I thought the stormwater pipe would take.



03 22-07-2021.jpg

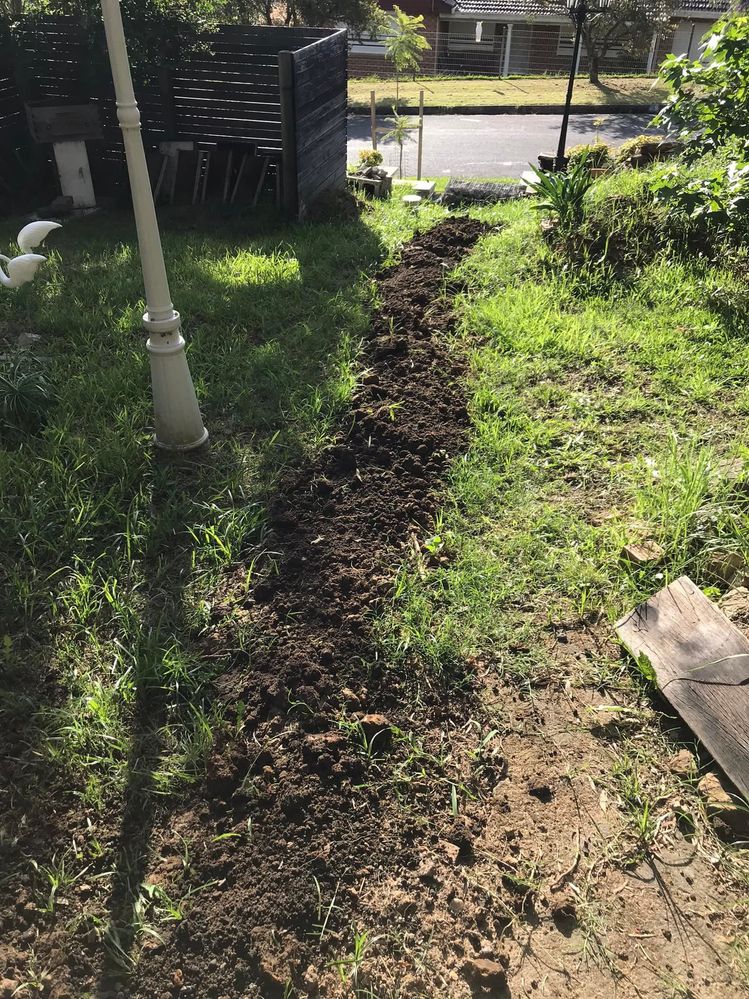

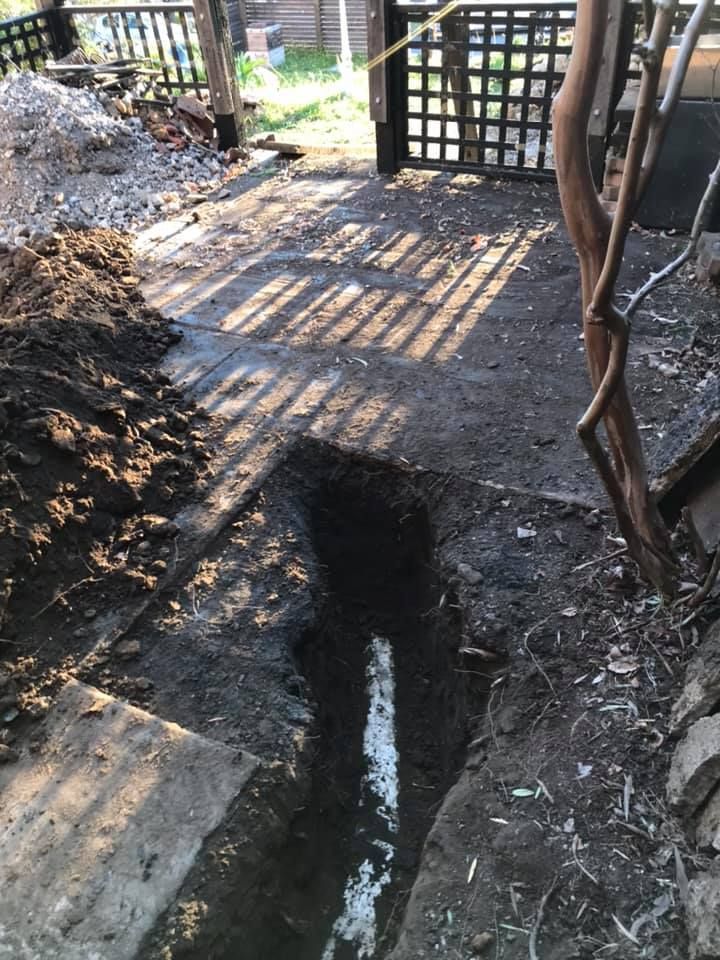

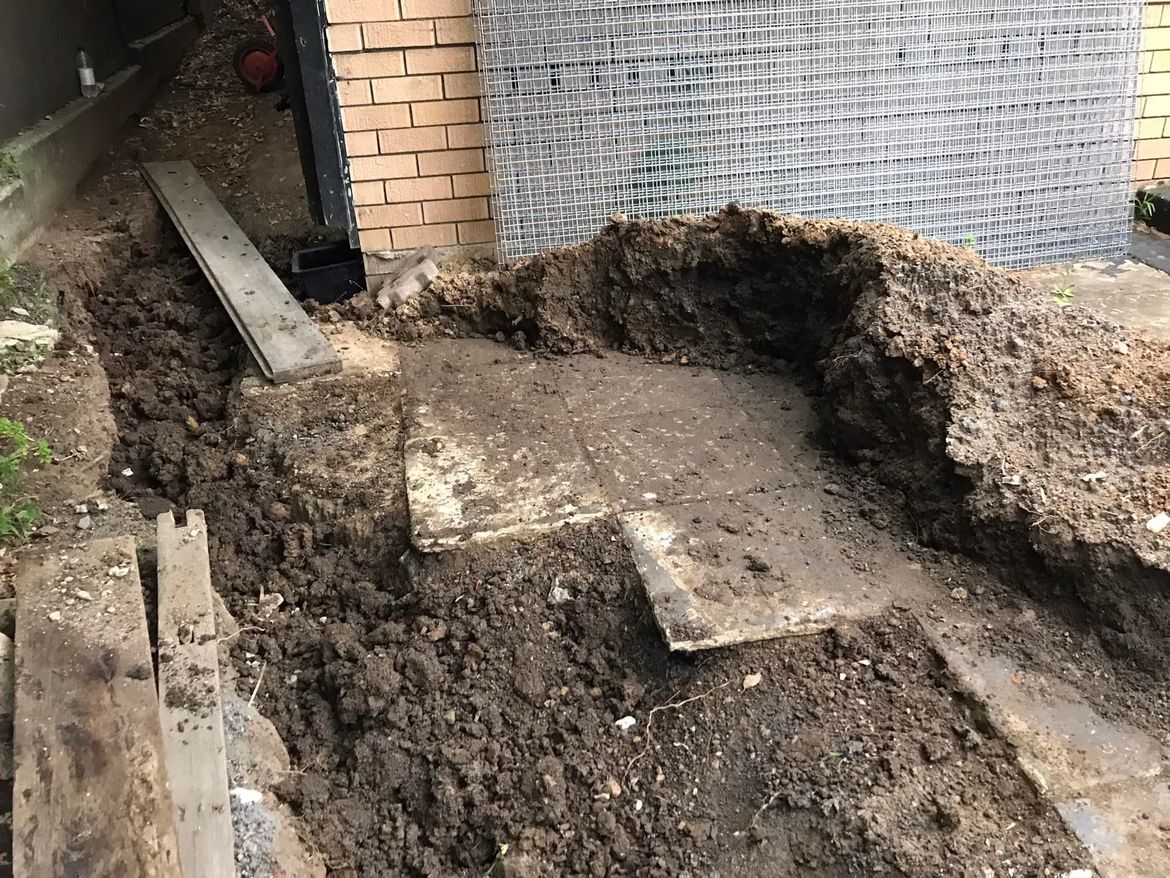

Clean up of the patio area as I had to go through it.



04 22-07-2021.jpg

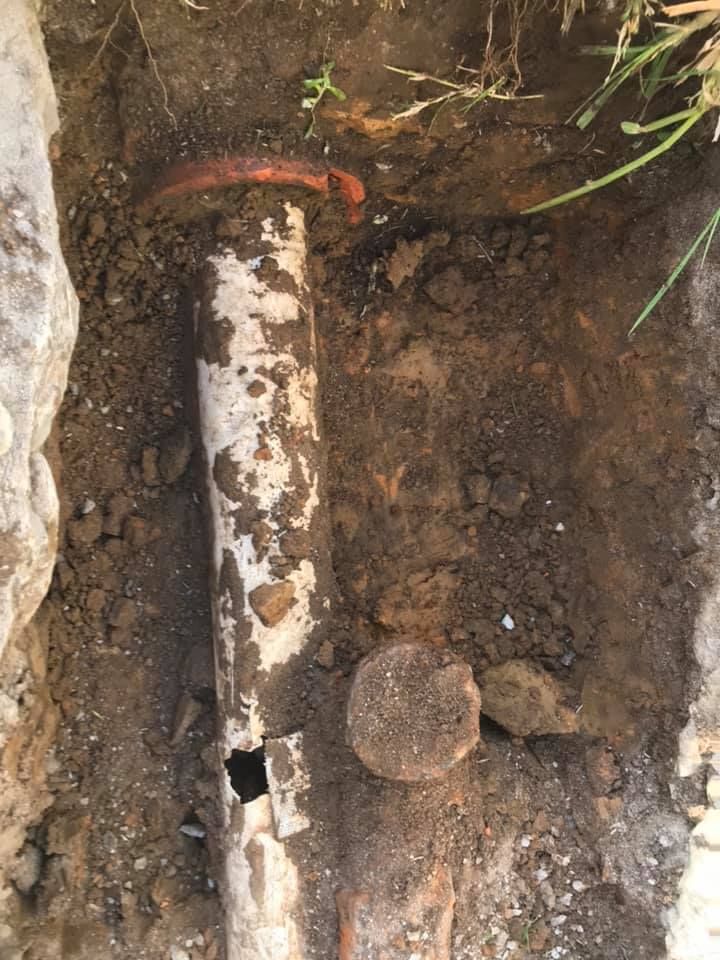

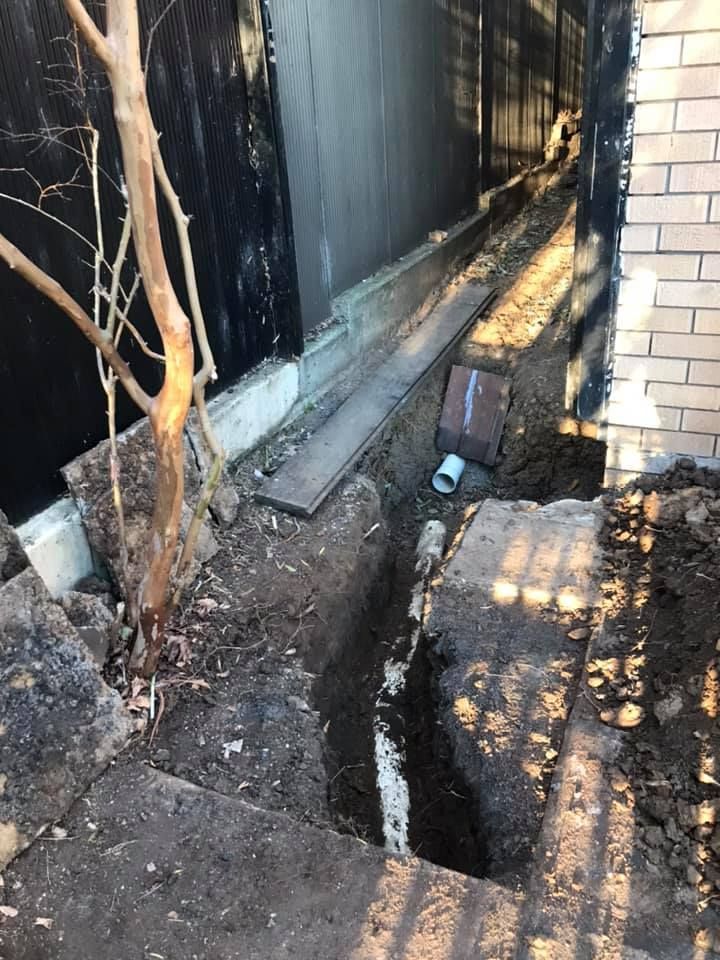

Of course the pipe kinks lol Oh well. I was following the pipe anyway.



05 22-07-2021.jpg



Looks like it will go between the posts or right under one...



06 22-07-2021.jpg



The concrete area.... Not even true pavers. Just concrete dust scattered and hosed? I really don't know. I did pull them up reasonably carefully as I may reuse them.



08 28-07-2021.jpg

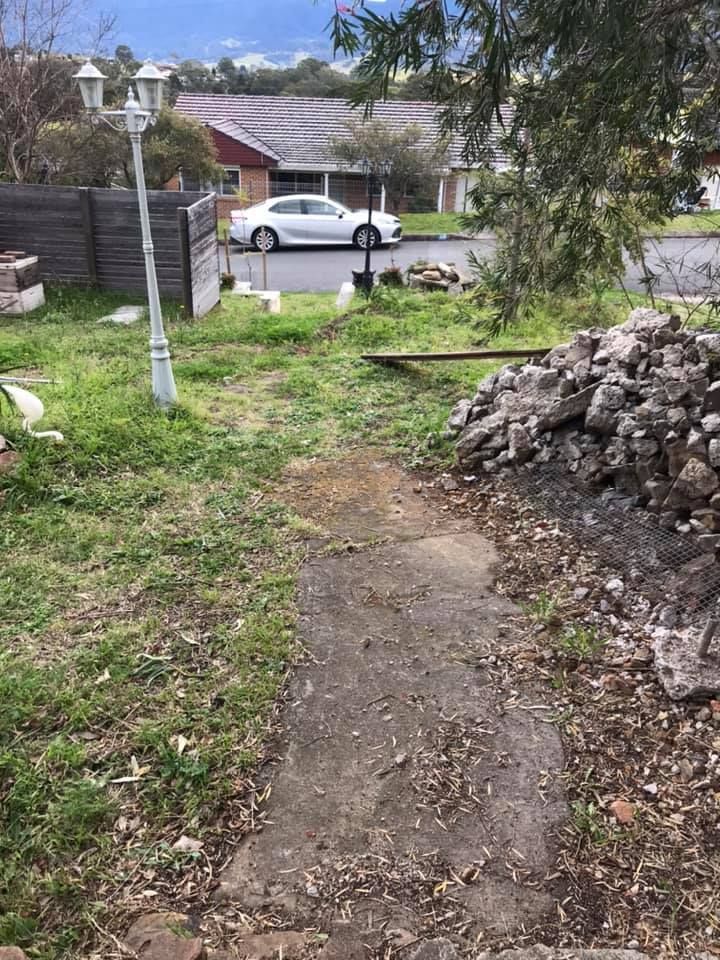

The path, what is left of it after sewage work, tree coming down and age.



09 28-07-2021.jpg

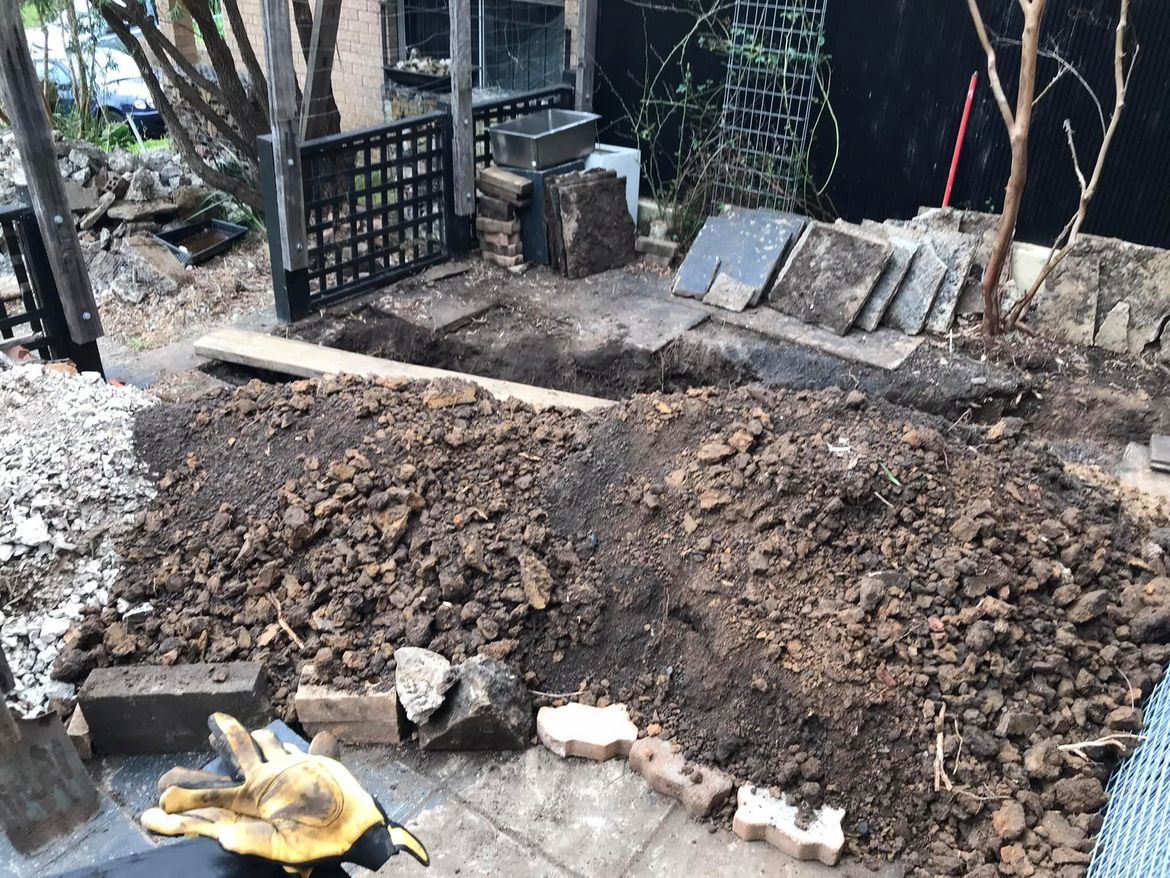

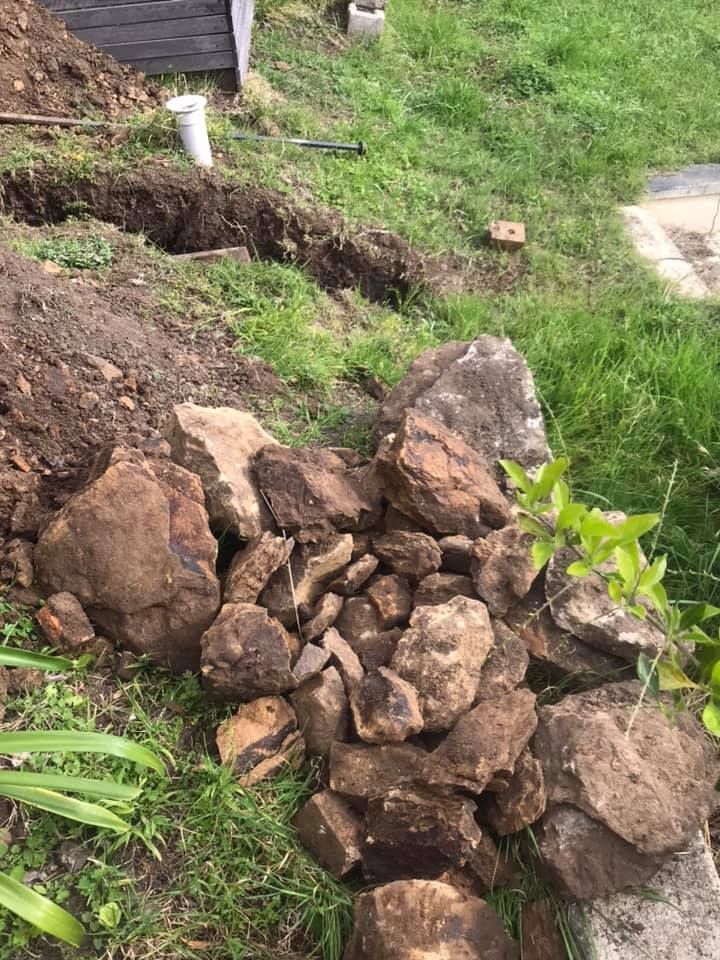

So much soil and coalwash fill



10 28-07-2021.jpg



The pipe was flattened in sections, 90mm thin pvc pipe had been squashed to maybe 2cm in height.



11 28-07-2021.jpg

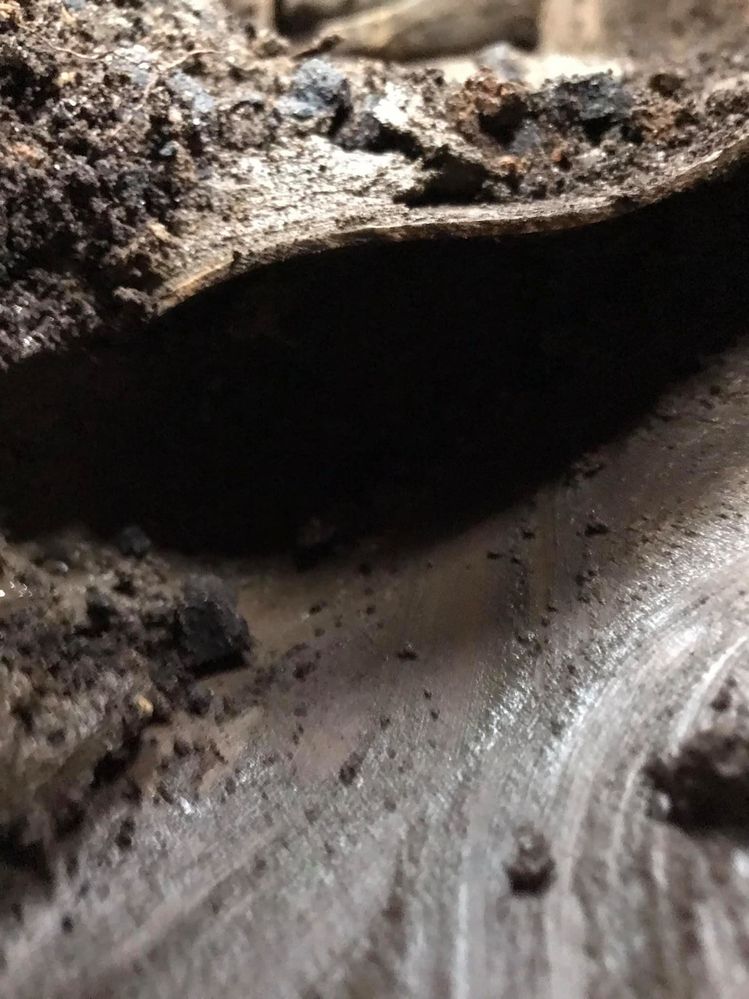

Showing the squashed pipe



12 29-07-2021.jpg

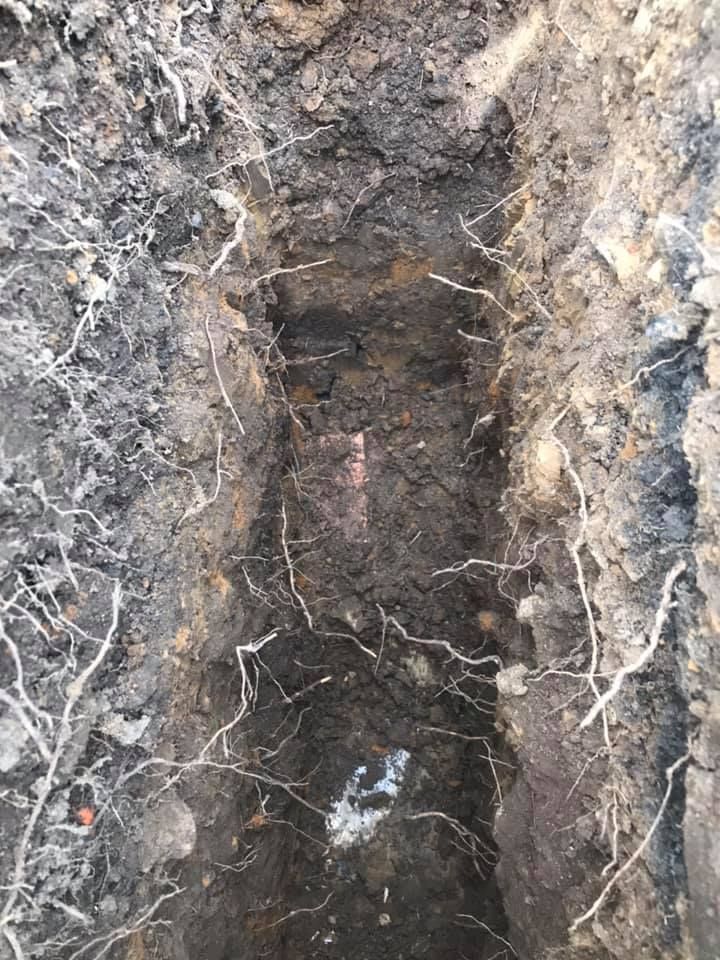

It took no effort to drive the crowbar down. this is how far it sank into the "fill" btw it is a 6 foot crow bar.



13 29-07-2021.jpg

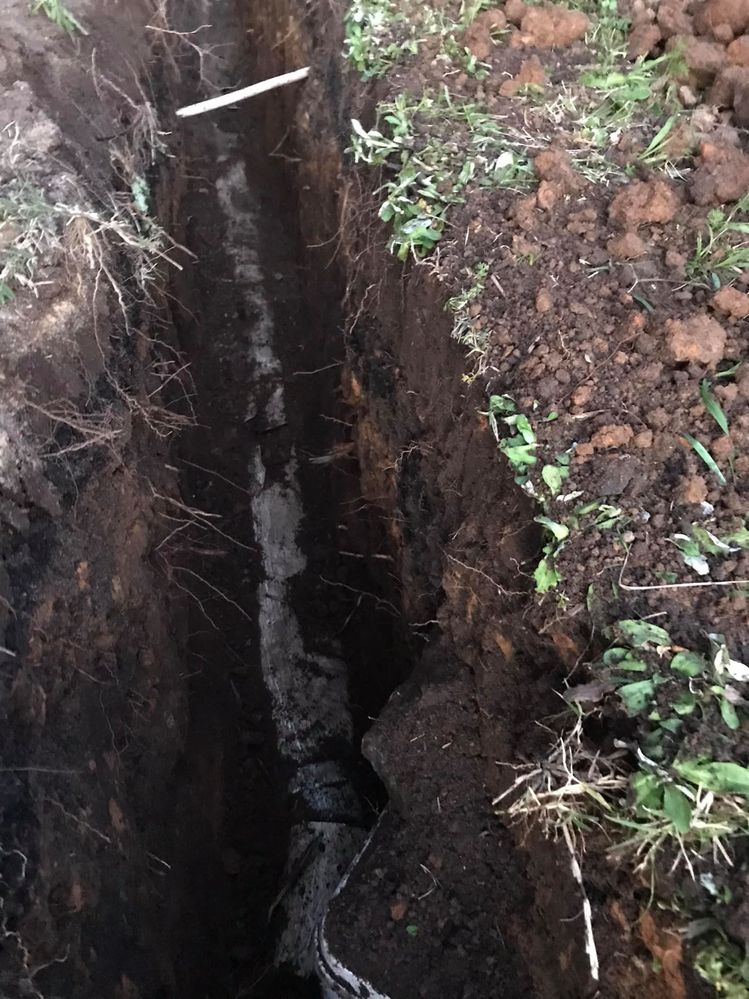

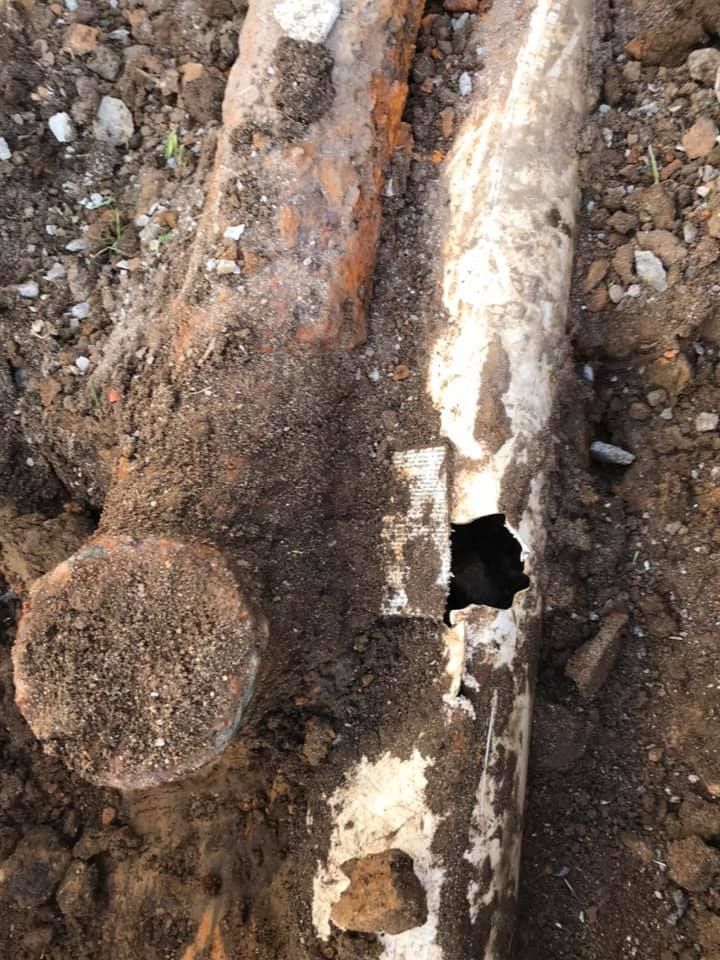

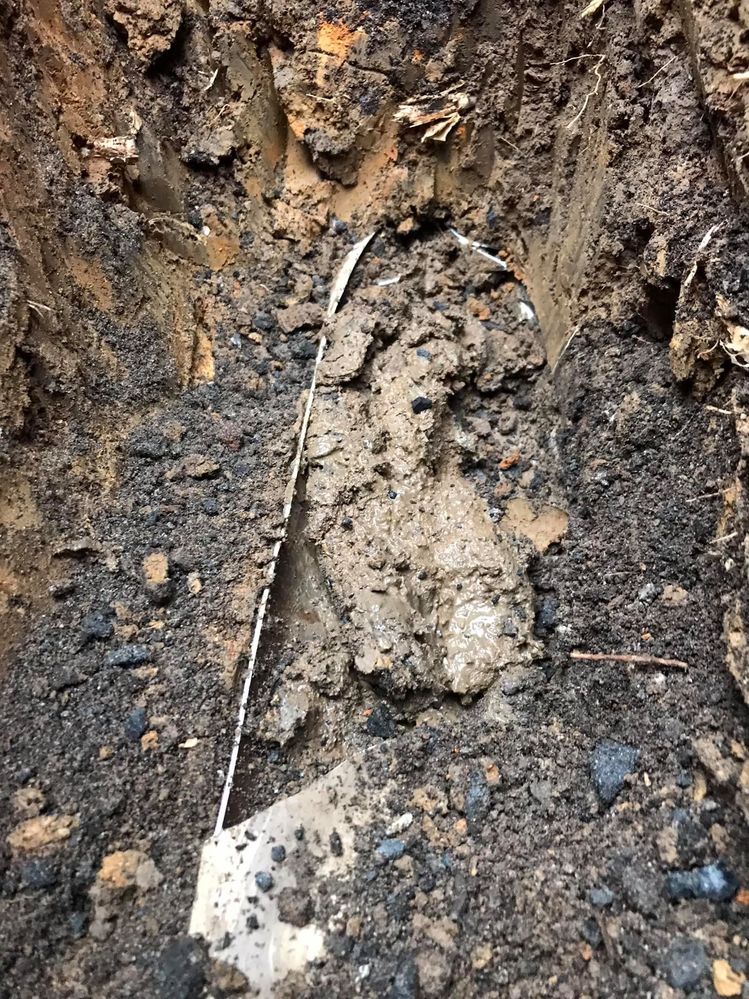

The old pipe was filled with clay and silt and squashed flat.



14 29-07-2021.jpg



The pipe didn't look like it had been disturbed since it was installed.



15 29-07-2021.jpg



You can see the "concrete" pavers that were used, they are reasonably fragile



16 03-09-2021.jpg



Missed the post but sealed the fate of the "retaining wall" built out of pavers stacked on top of each other, no mortar other then the "header" kind of.  (Another project lol)

Step 2

I thought it would be an idea to did all the way then replace the lot instead of doing it in sections. This next part I had to be careful of the NBN, Power and Sewage. I figured I wouldn't have to worry about the water pipe as it is further to the left.



17 07-09-2021.jpg



Found! The NBN line in :smile:



18 08-09-2021.jpg

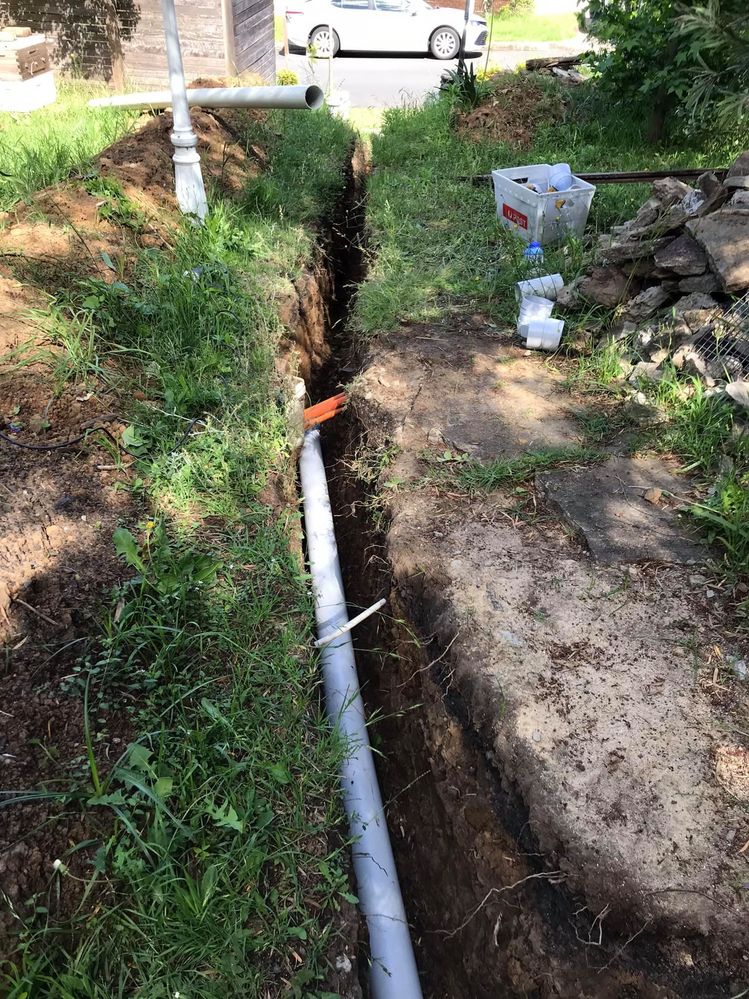

The old stormwater pipe was squashed every meter or so. Over time the clay has compacted the ground around the pipe. It had no chance.



I have a bade reputation to hitting pipes so was pretty happy I hadn't.



19 12-09-2021.jpg

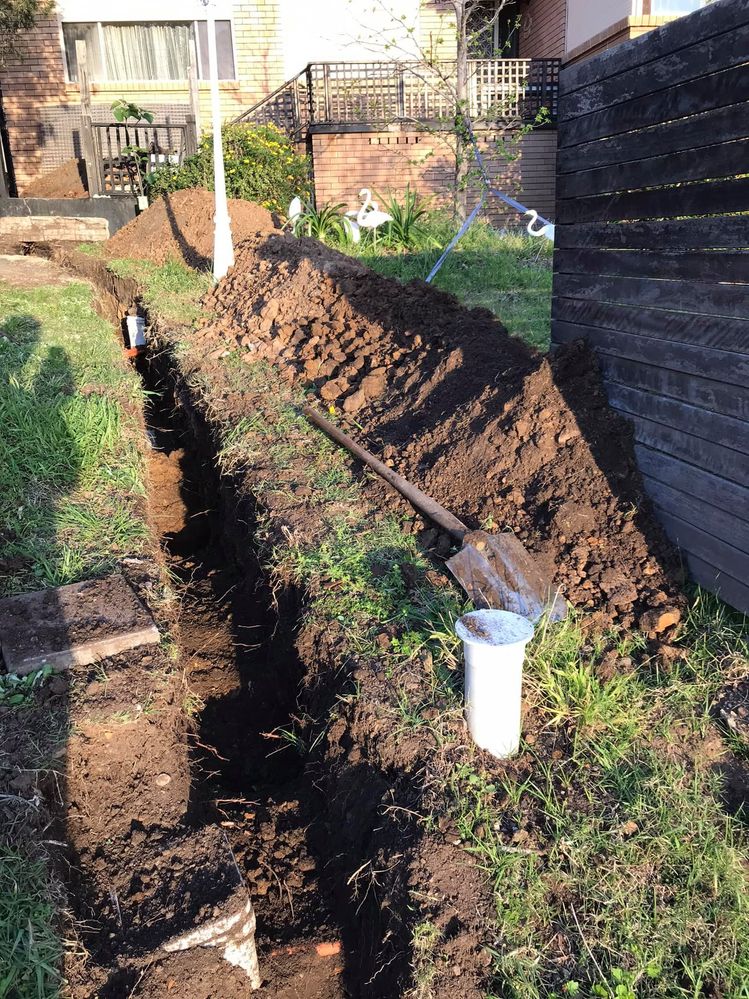

Power for the lights, also power for GPO's on the lights one day, and network to each light just in case. When I put them in I followed the edge of the path. This time the path is going as it was directly underneath it. You can see the sewage inspection point standing up. So all my services are ending up coming up the center of the yard.



20 15-09-2021.jpg21 18-09-2021.jpg



There was something in the way, It ended up being three huge stones.



22 18-09-2021.jpg

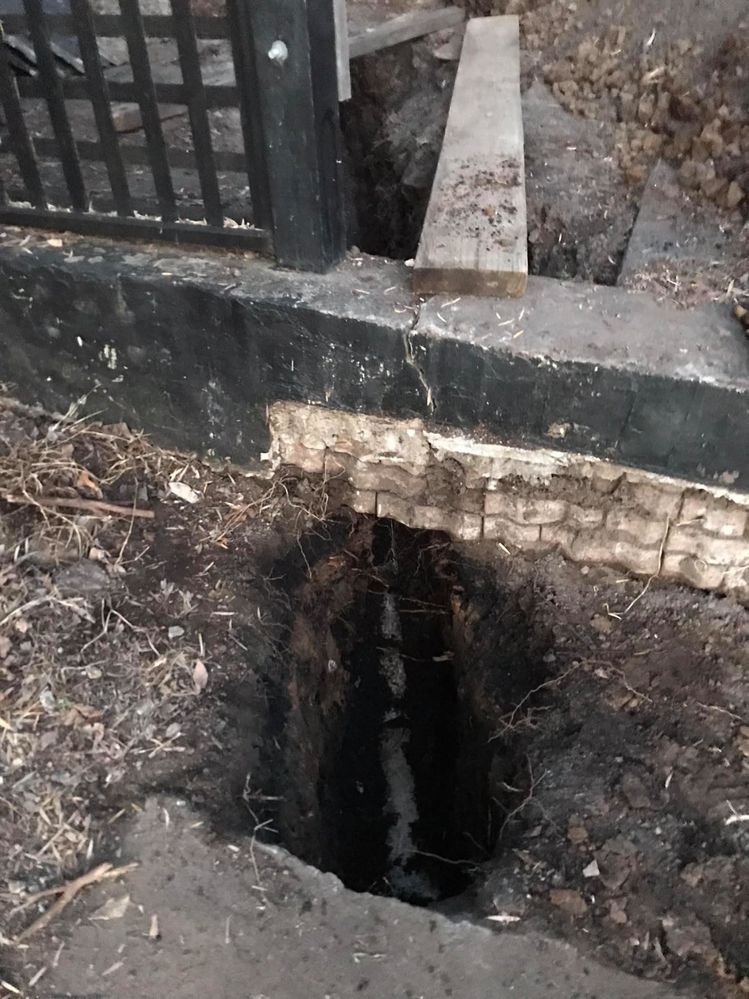

Finally through the old retaining wall area. (no foundation so it started leaning as soon as it was broken in the middle.)



23 18-09-2021.jpg



This is why you don't let builders throw their waste into trenches as fill. The trench was a meter and a half deep at this point and when the excavator came on the block to dig the sewage pipes I suspect the weight compacted the soft clay and squashed the brick flat against the stormwater pipe and that was the final straw. (brick can be seen at top of pic)



24 18-09-2021.jpg



Through the steps. No foundation other then the mortar for the bessa blocks.



25 26-09-2021.jpg

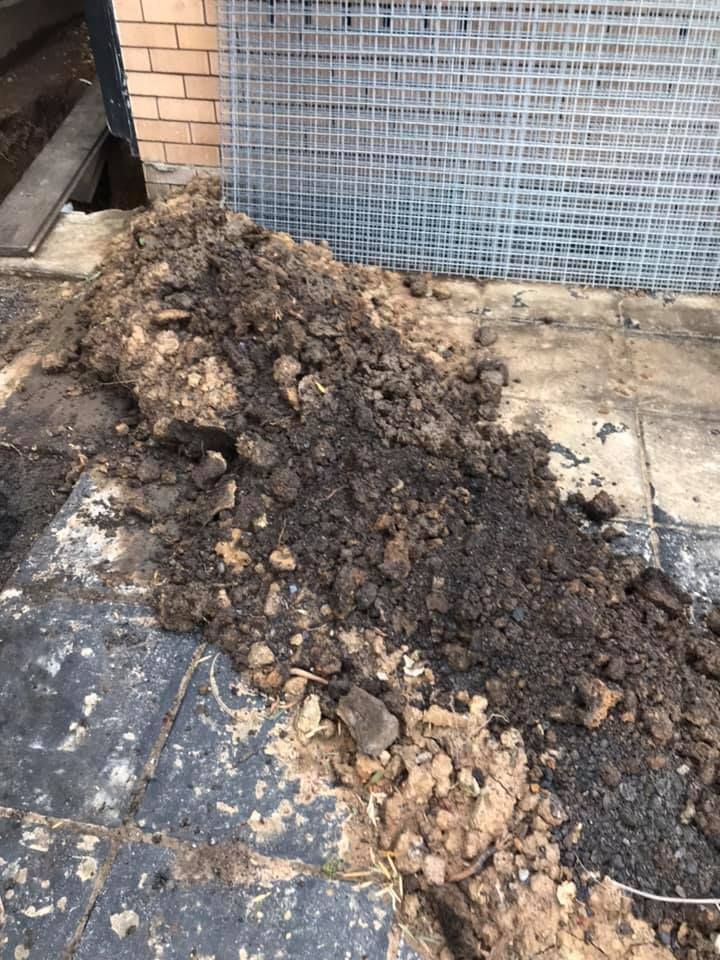

Some of the rubble I have dug up.



26 15-10-2021.jpg

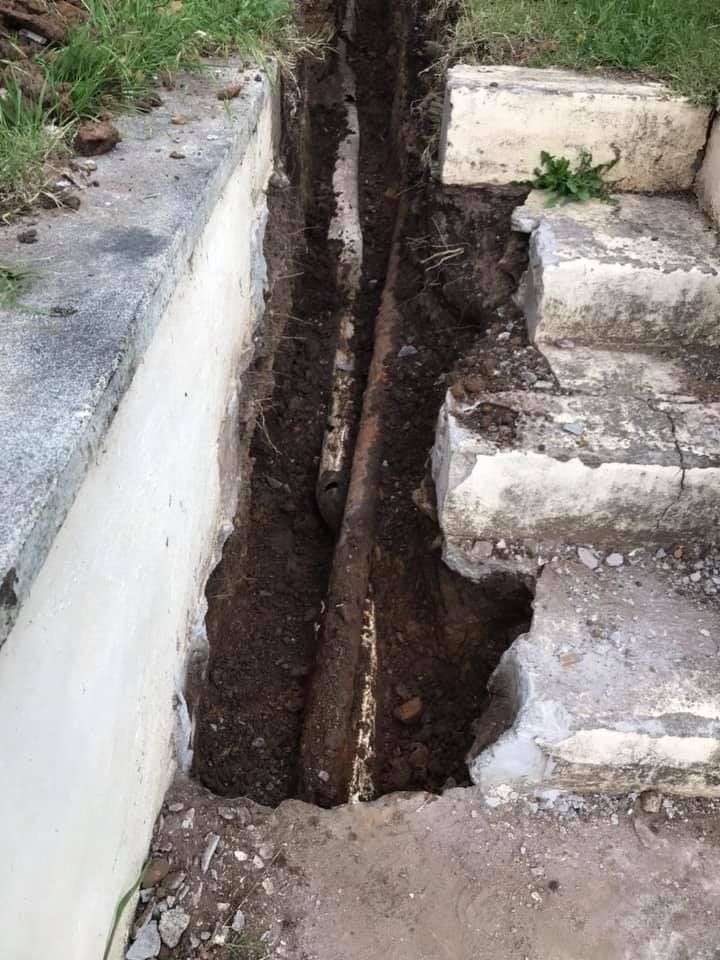

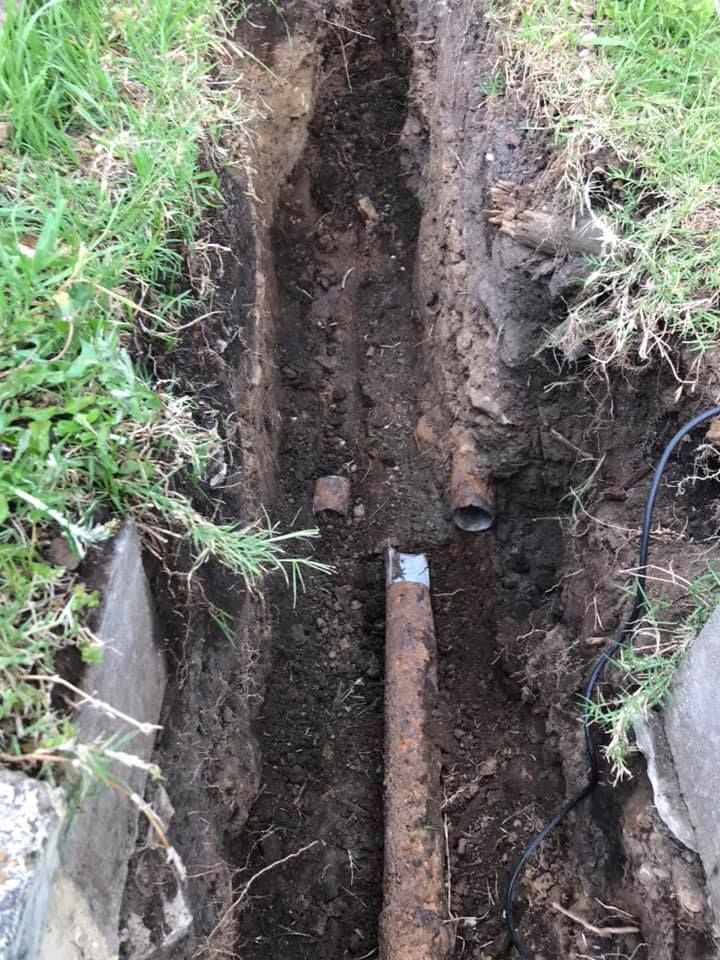

Old steel stormwater pipe that use to go to stormwater pits within the yard. But who would run a new pvc pipe like that?



28 17-10-2021.jpg



Dodgy bro inc again. To see a patch that you know hasn't been touchedin 12 years at least!



29 17-10-2021.jpg



Almost there.



30 17-10-2021.jpg

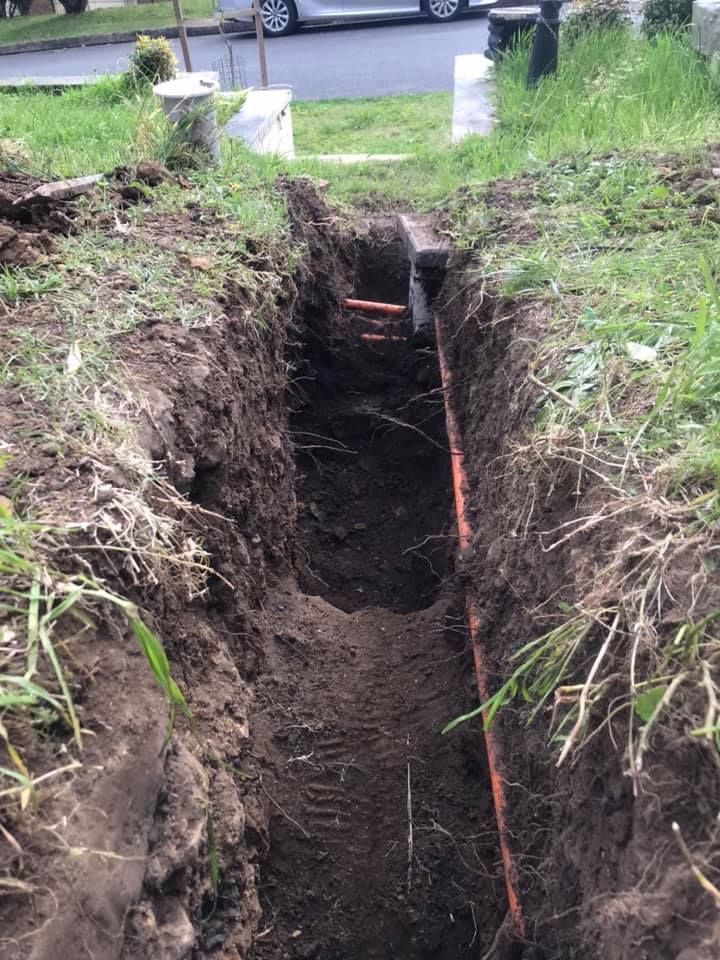

So the pipe goes straight into the terracotta pipe that goes across the footpath... Ok.



31 21-10-2021.jpg

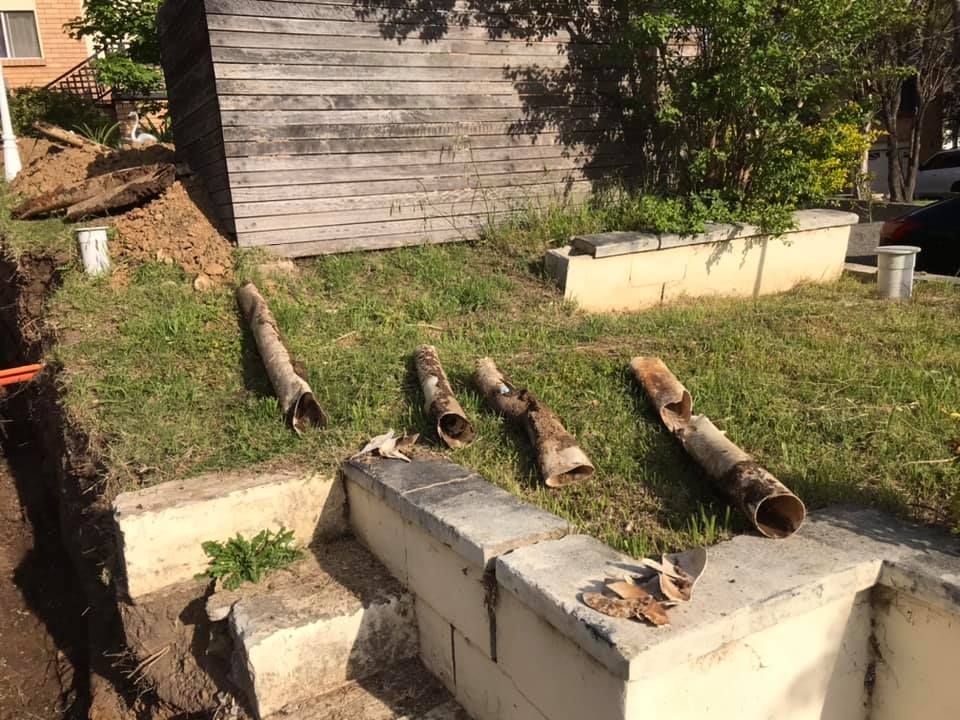

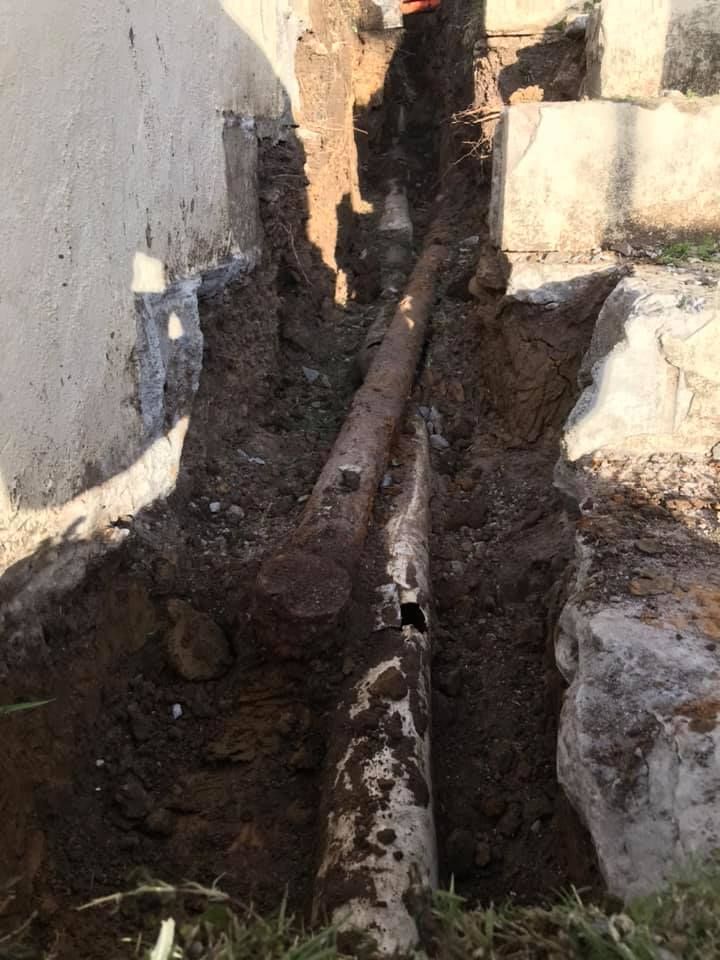

Pulling the old pipes out. These were stuck into the ground like glue (wet clay) and weighed a ton as they were full of wet clay.



32 21-10-2021.jpg



I am surprised they worked even a little bit.



33 25-10-2021.jpg



Chopped off the old steel pipe so I could run my new pipe straight.



34 25-10-2021.jpg

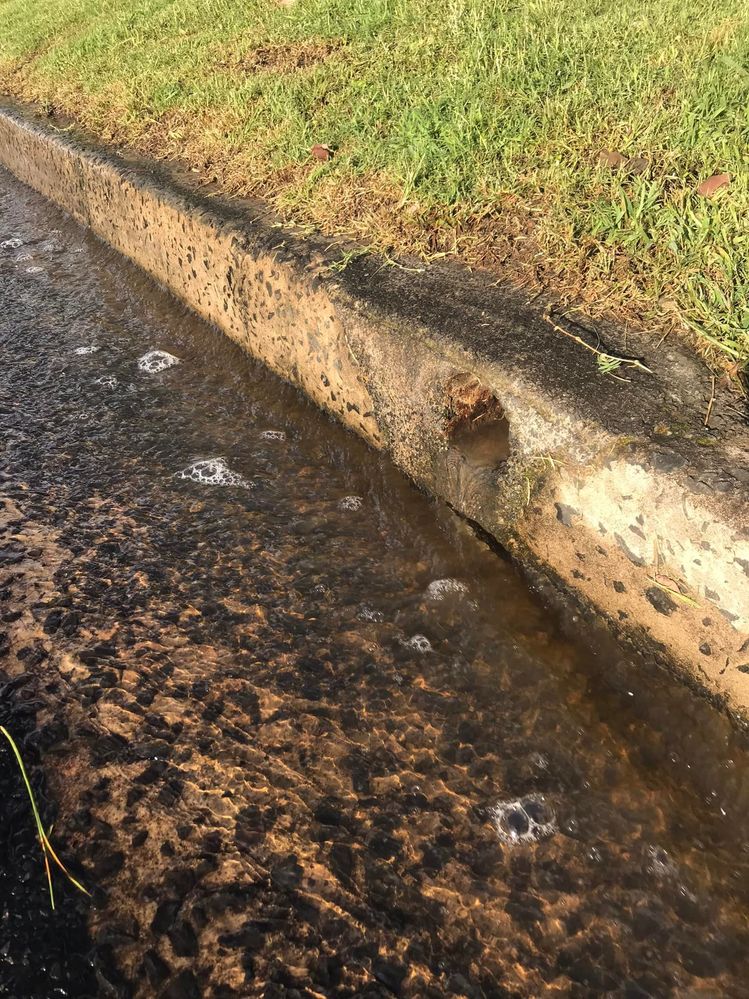

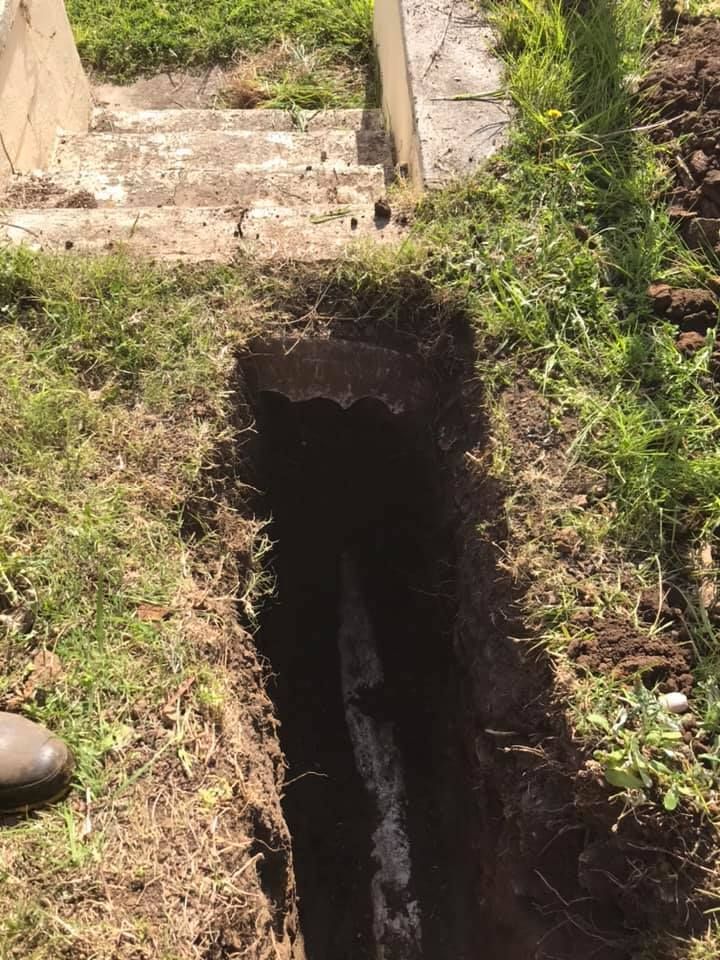

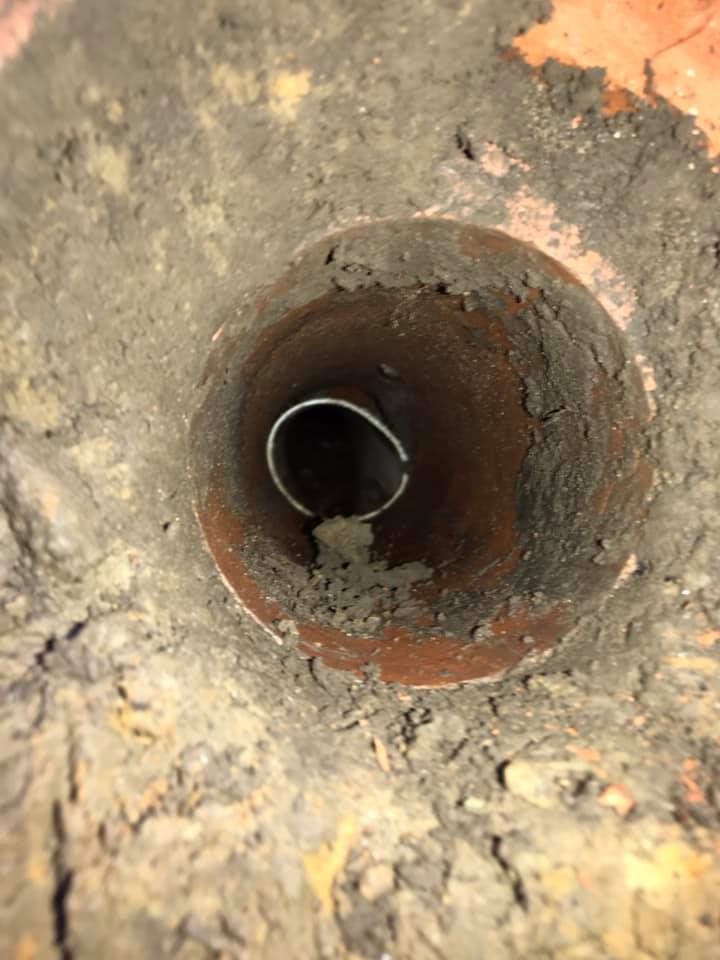

The Terracotta pipe that goes to the gutter. It isnt sloped, in fact dips a little but is clean and empty. There is also a lining inside? I don't want to touch the footpath at all so will leave that in situ.

Step 3

Time to put in the new piping and cover it with gravel. Really wanted to get it done as the project was taking forever to do. Tho once done then the next step would be replacing the retaining wall, ugh.



Large Gabion wall build and Small gabion retaining wall



35 27-10-2021.jpg

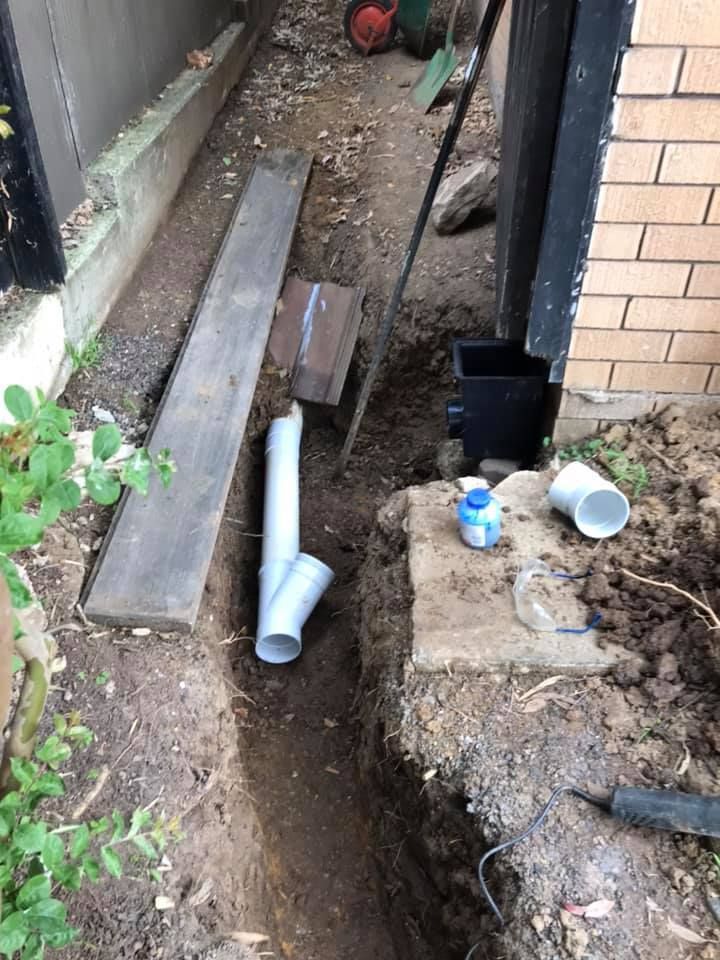

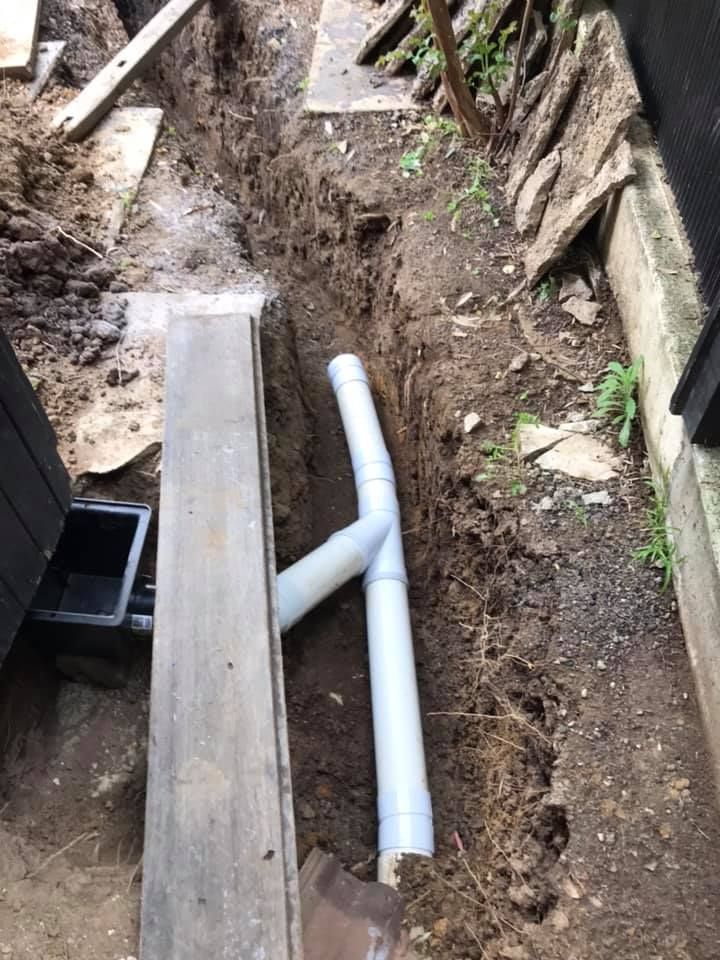

Connecting the stormwater pit near the gate to the run to the street.



36 27-10-2021.jpg



Following the trench. I had to use some 15 deg joins to get it around the bends in the trench. I could have dug a new section but was over digging trenches at this point.

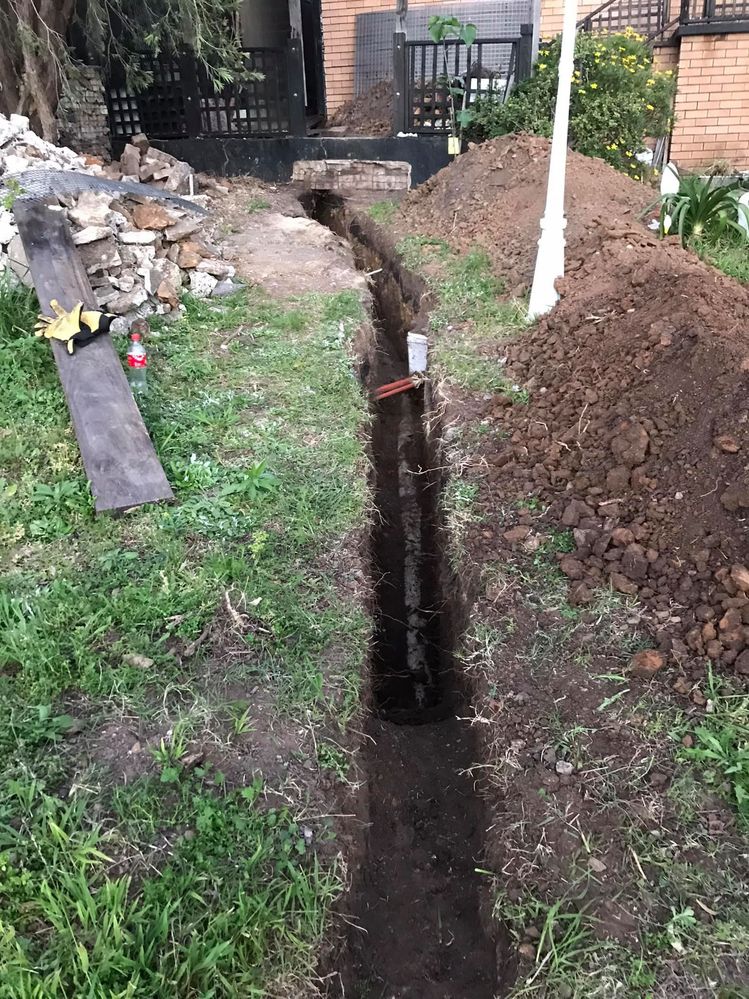

37 15-11-2021.jpg

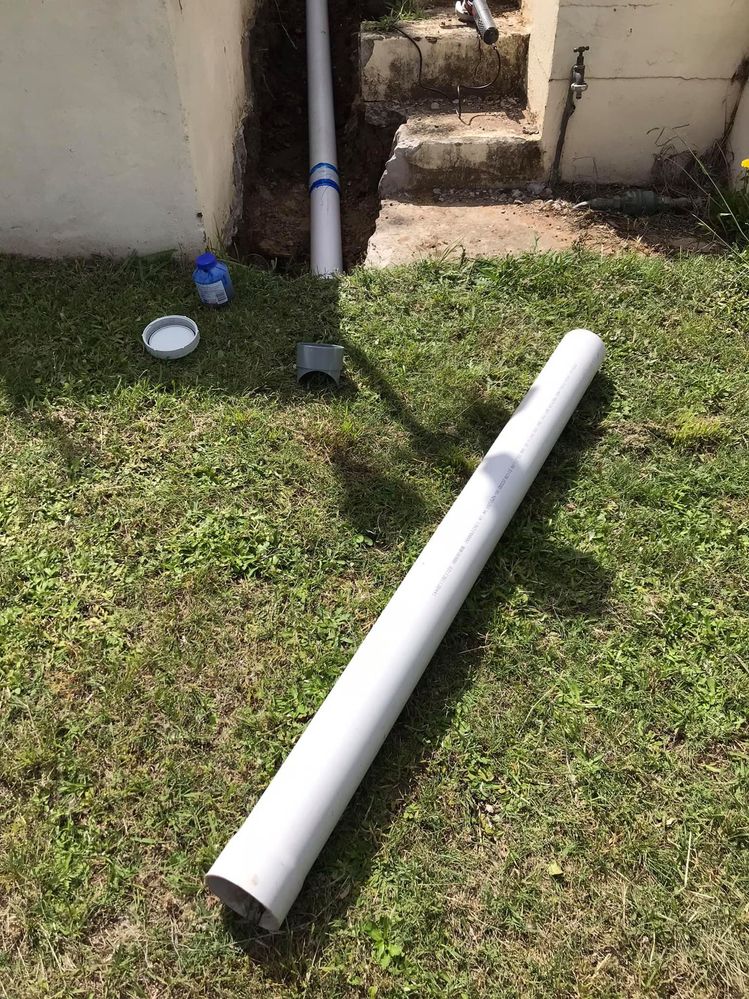

The 6m lengths of pipe were a dream!



38 15-11-2021.jpg

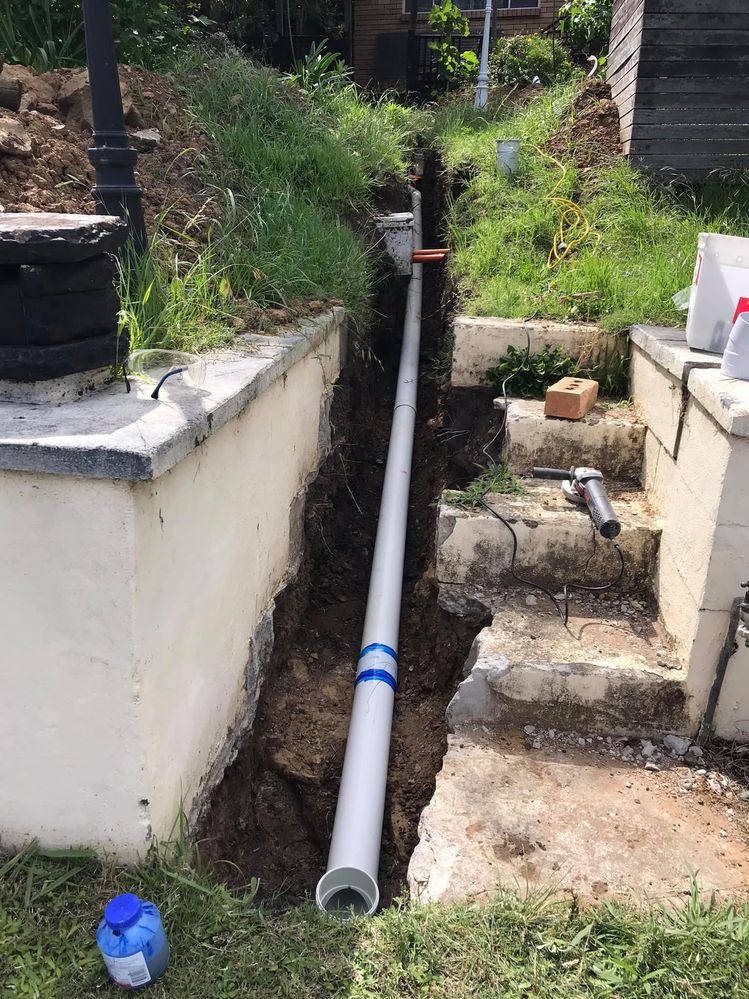

nice straight un straight down to the footpath.



39 15-11-2021.jpg



The pipe had to be reduced a little to fit into the terracotta pipe (90mm inside width) also had to join the reducer, the T section and pipe all together and have it inside the terracotta pipe. I managed it but had to step it through in my mind before doing the job otherwise I would have run out of space. I used a threaded T piece as I want to be able to get a high pressure hose in there if needed (By the plumber) The 90mm pipe goes into the terracotta pipe by 500mm from memory.

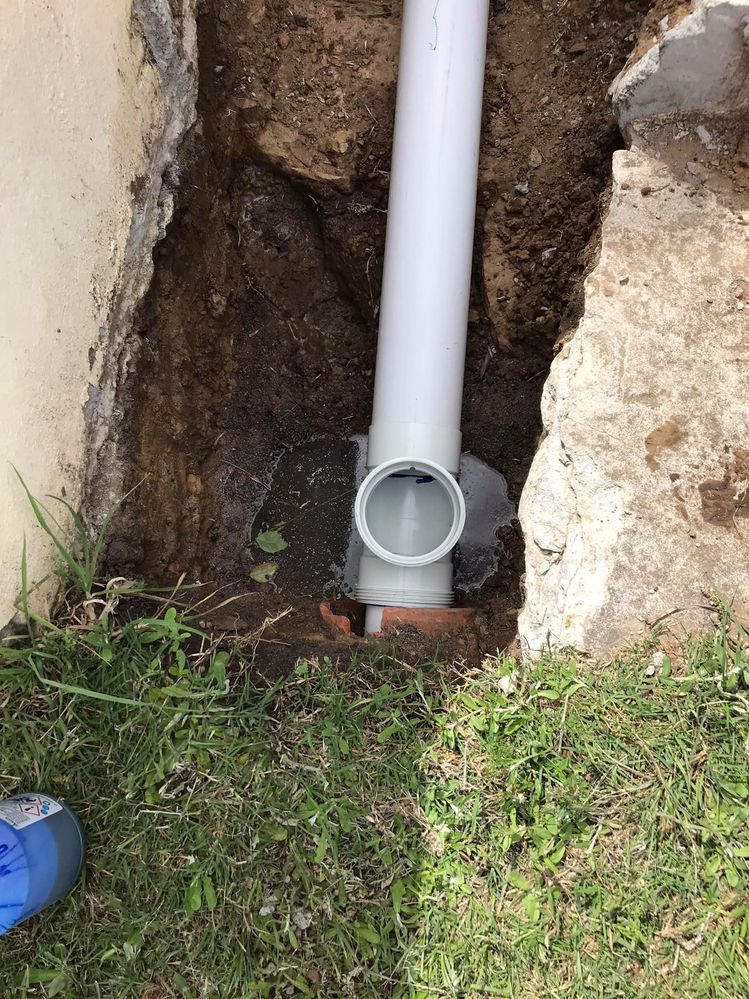

39b 15-11-2021.jpg



Top down view



40 15-11-2021.jpg



This is all the pipe I had left over from the stormwater run. :surprised:



41 16-11-2021.jpg

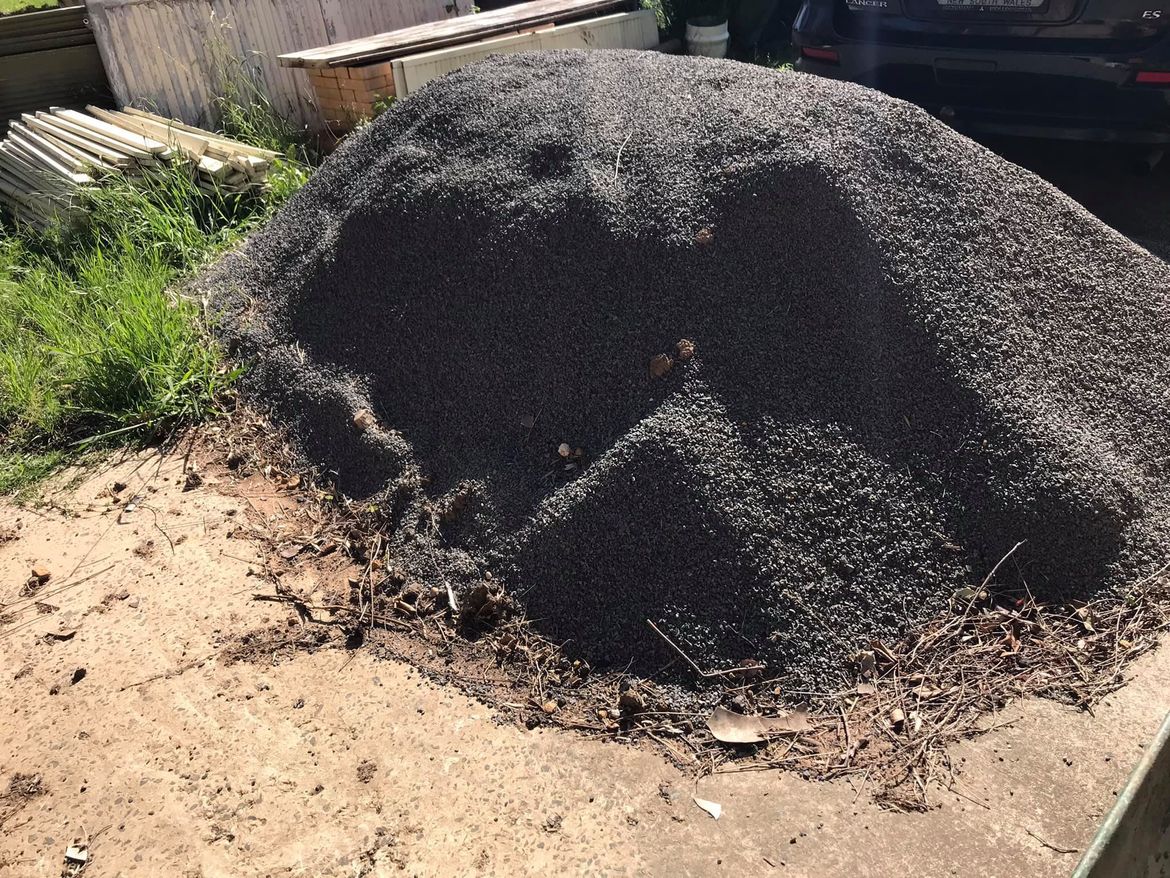

The pipe of gravel 5.5T all up. needed maybe 1/2 so my calculations were way off. I did use it all tho :smile:



42 16-11-2021.jpg

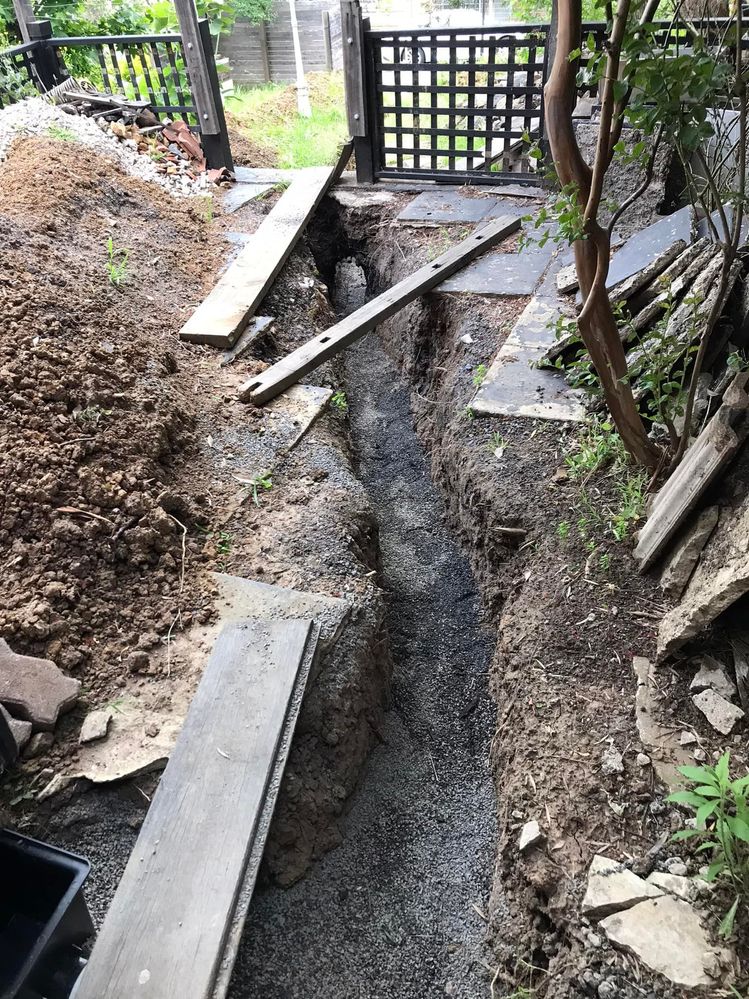

Backfilling to cover the pipe by an inch. There is also an inch under the pipe at least.

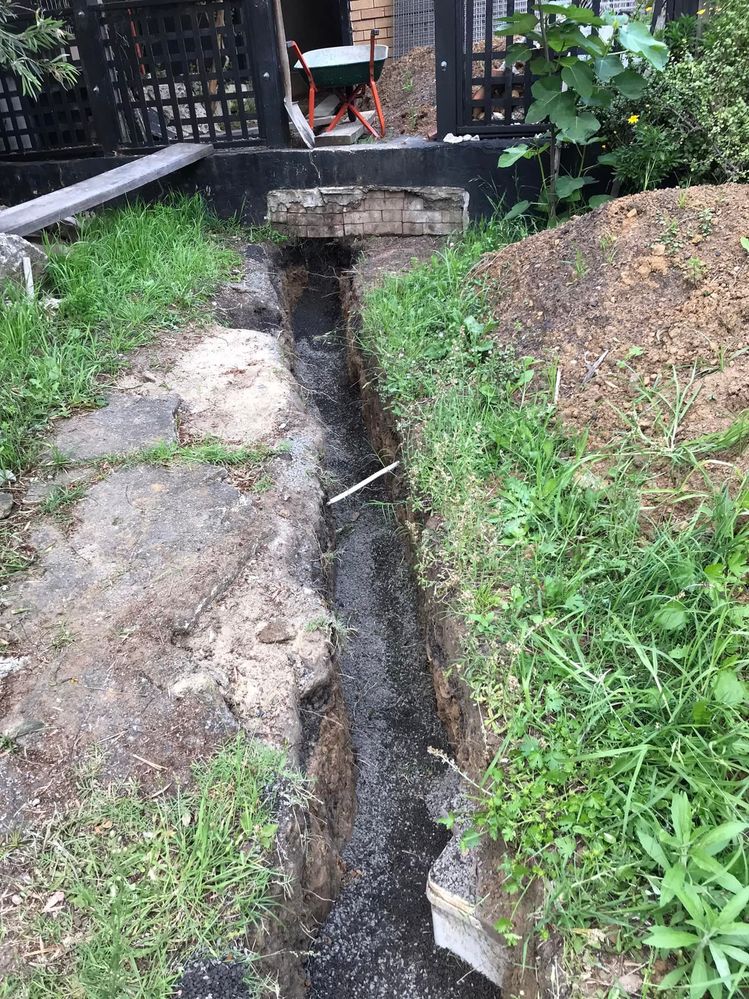

43 16-11-2021.jpg



It felt so good backfilling the trench with gravel.



44 17-11-2021.jpg



Still not 100% sure on how to rectify this area but have some ideas.

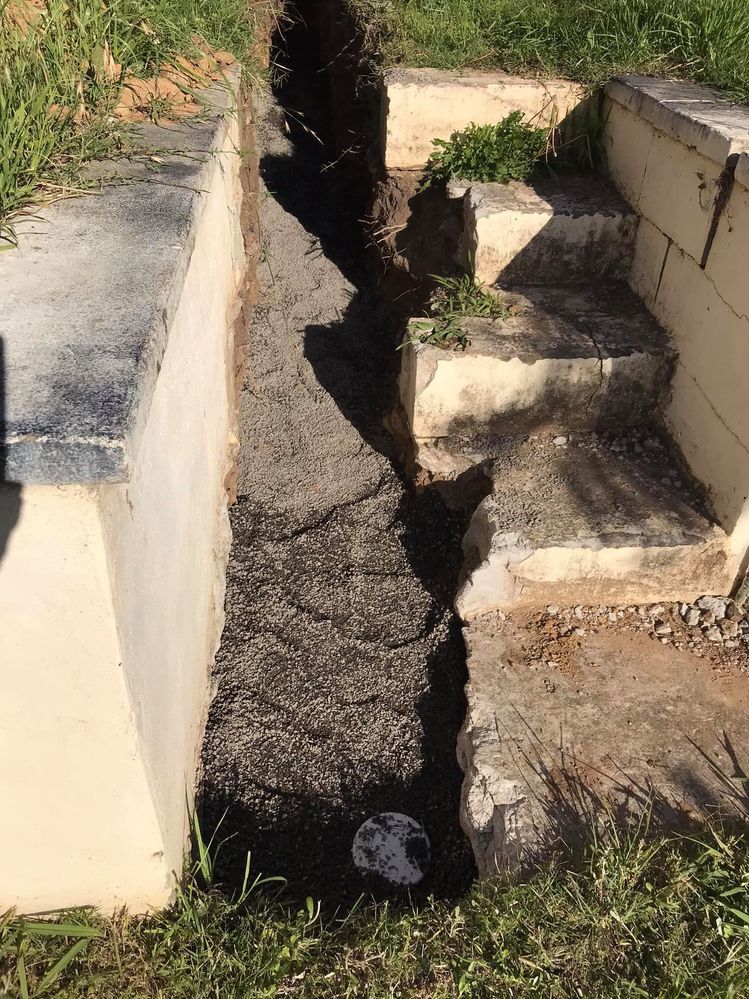

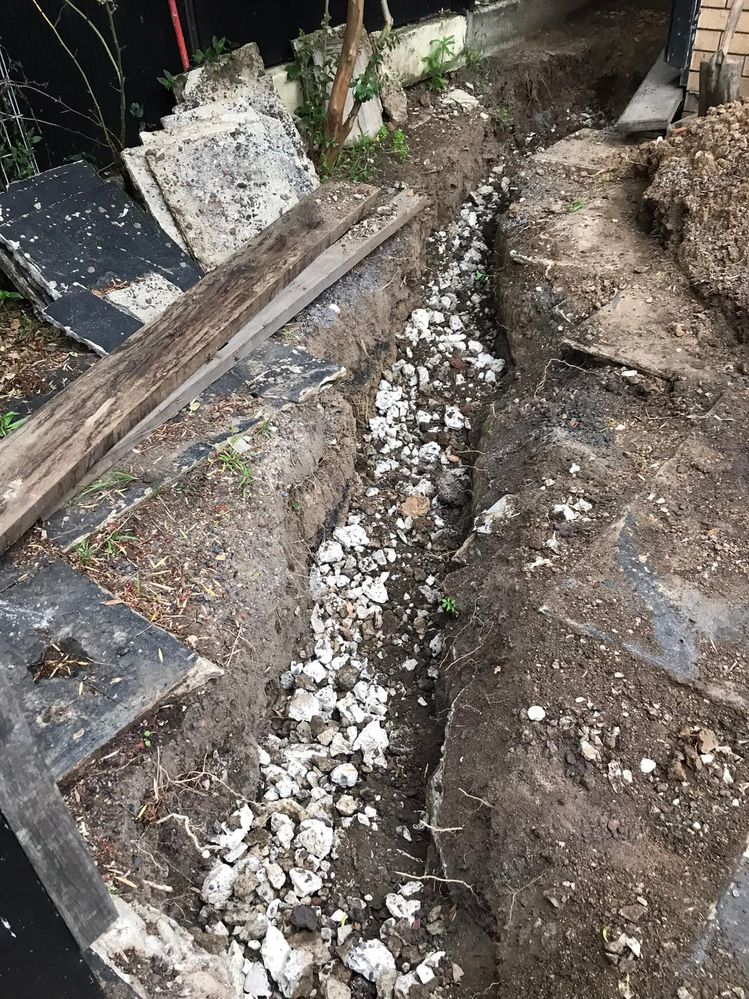

45 19-11-2021.jpg



I used the smaller concrete gravel as a top layer above the g8mm gravel just to use it up.



46 19-11-2021.jpg



backfilled with the coalwash and then lay on top.

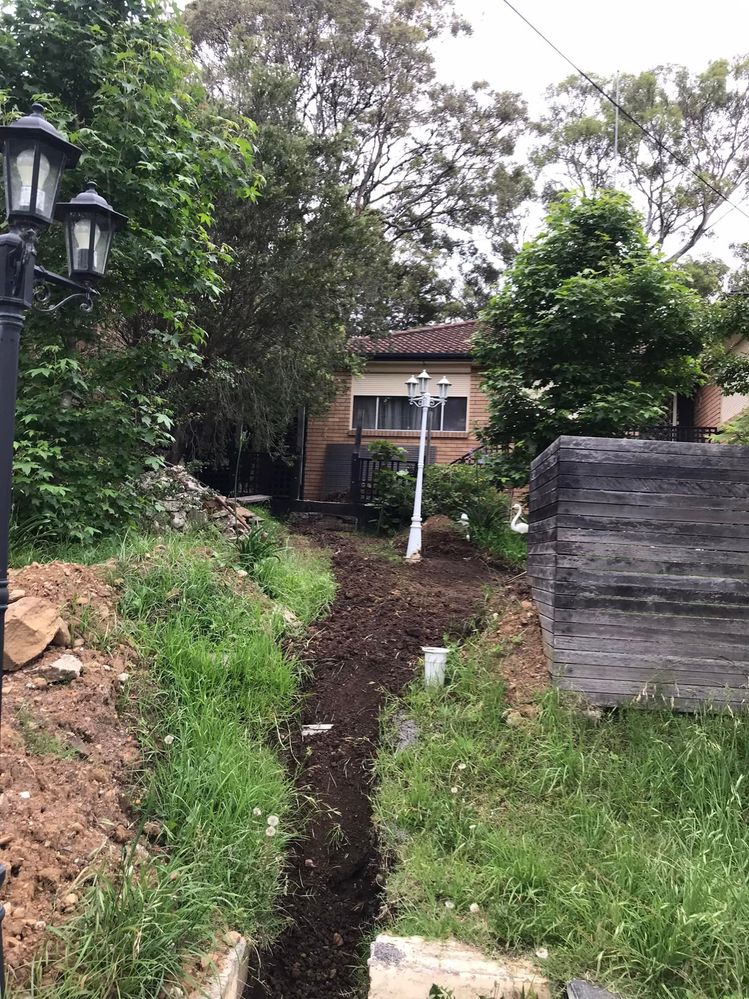

47 22-11-2021.jpg

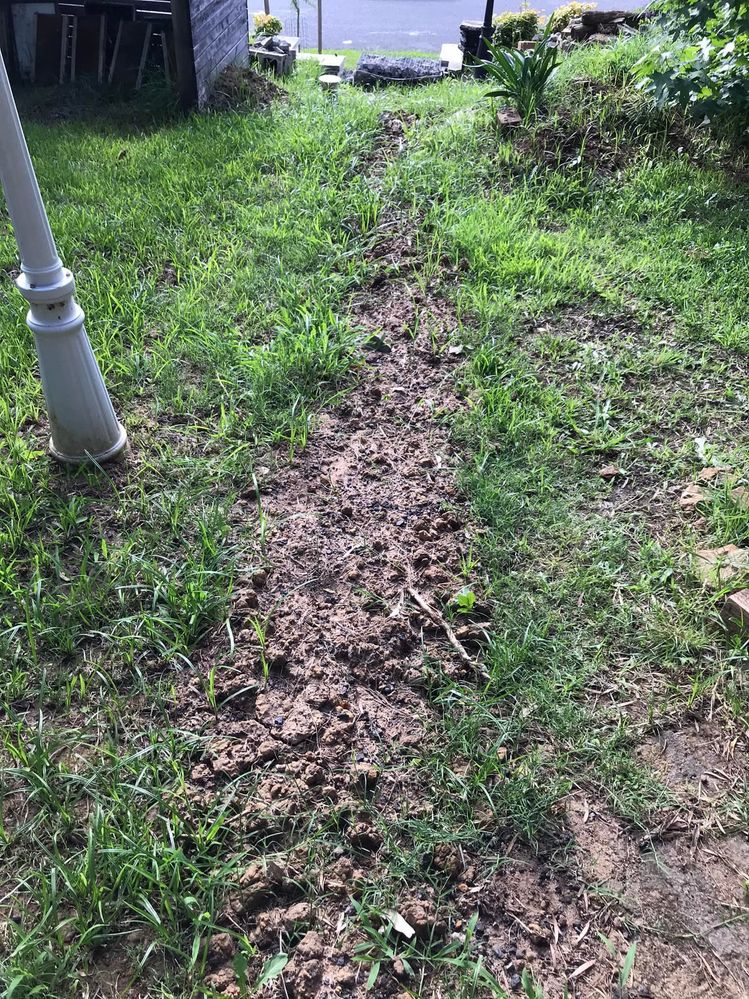

Was good to get the yard levelish again.



48 24-11-2021.jpg



Backfilled and heaped to allow for settling.

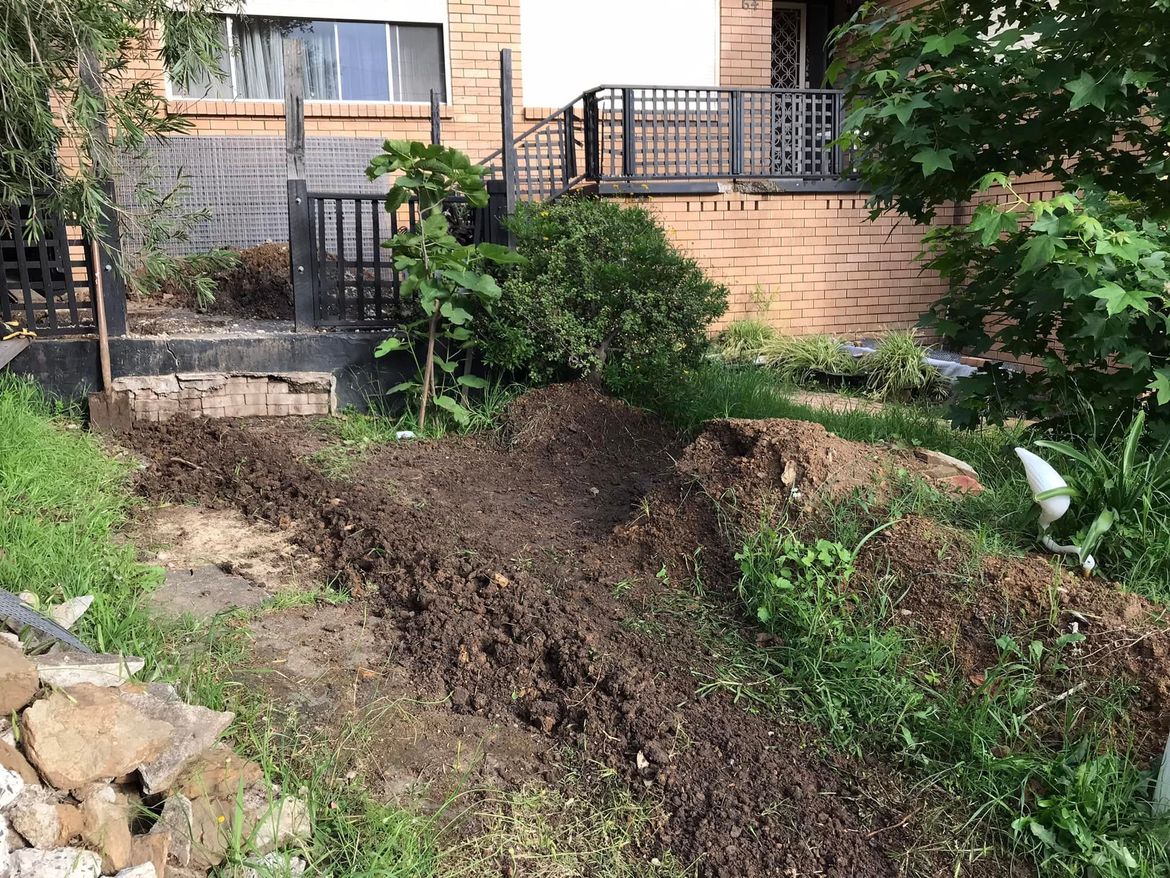

49 24-11-2021.jpg



Settling after 2 months.



50 22-02-2022.jpg



So topsoiled it.



51 15-01-2022.jpg



Worth it! After a storm I would run out to check to see if the pipe was working. No issues and no pooling happening anywhere!
