How to fix light cover fittings that fall off?

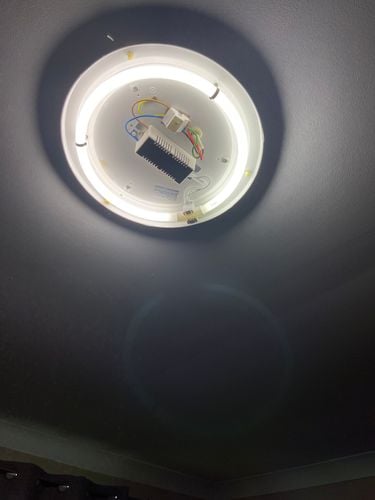

Hi have several lights as of type in picture. All of a sudden all the covers have just fallen off. As can be seen, light works fine. So issue I found is that the catches that hold the light cover in have the part that holds the cover in place broke. One sparky I asked said entire light has to be replaced and by a qualified electrician. This seems ludicrous and costly i.e outside my budget for 3 separate lights at this point in time. Surely we can just buy a new fastener.

Find more posts tagged with

Lighting and Electrical

Comments

EricL

Hello @canny1

Would it be possible for you to post a photo of the fastener and the light cover? This will give our members a chance to assess the fastener. We can then make recommendations on what to do.

If you happen to know the brand and model of your light fitting that would be helpful as well.

If you have any other questions we can help with, please let us know.

Eric

Dave-1

Evening @canny1

Light covers can be a pain especially when they go South.

I will wait for your pics and model that @EricL has asked for but look for little grub screws that usually sit around the outer rim of the lamp shade. The screws are done up together (mostly 3 screws for round shades) Fluro light fittings are a little different and the end caps can come off. But probably wiser for me to wait and see 🙂

I have some outside lamp posts with light bulbs that need replacing, the whole individual head of the lamp post needs to removed per light (9 in total) and I am dreading replacing the bulbs for the same reason as your lights... The screws can be problematic to replace if they have become loose or have seized. I have an idea that I could drill some new holes and then use (sanded off tips) of self tapping screws just near where the old holes are. Im hesitant to get someone to try it without me first trying it out is all 🙂

The shade is on the ground with you btw, You dont need to touch up at the light fitting. 🙂

And yeah I really should wait for those pics 🙂

Dave

canny1

https://www.workshop.bunnings.com.au/discussion/comment/34371#Comment_34371

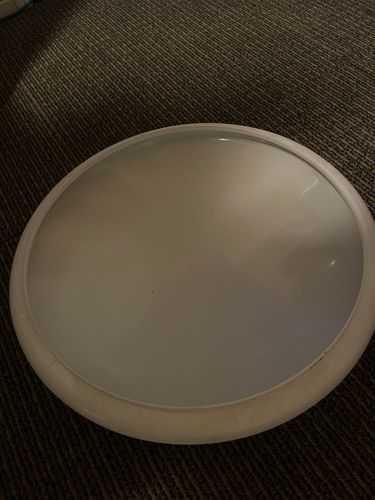

Here’s the cover.

canny1

https://www.workshop.bunnings.com.au/discussion/comment/34371#Comment_34371

Here’s the model info

canny1

https://www.workshop.bunnings.com.au/discussion/comment/34371#Comment_34371

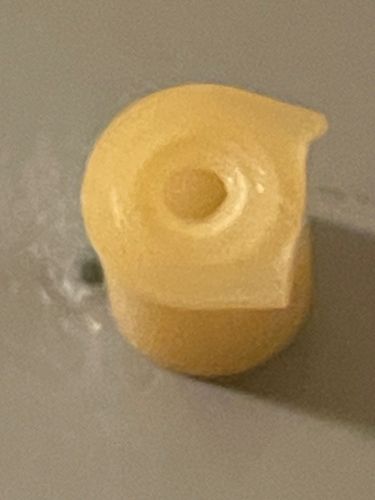

And here’s what’s left of the bottom part of the latch mechanism for lack of knowledge as to what it’s called.

canny1

https://www.workshop.bunnings.com.au/discussion/comment/34372#Comment_34372

Thank have shared some pics. Your lights do sound difficult too. Not sure why they design some things the way they do.

Dave-1

https://www.workshop.bunnings.com.au/discussion/comment/79487#Comment_79487

Good Morning @canny1

Just had a look at those pics and found the actual light. Tho for the life of me cant find enough documentation on where and how the shade is secured to the framework.

The photo with the cover on the floor, is it glass or plastic? That rim is usually where the little grub screws screw up to but not too tightly as to go through it. The three screws are at triangle points to be done up together while you hold the lamp in place.

That last pic is a little confusing, any chance you could take a photo of the section where it came off on the ceiling as we could then see if there is a workaround to securing it. Have all three screw points (or four) snapped off?

Oriel Lighting LF98840 for your reference. I think its your light. If you click on the pic at the top of the linked page it will show the catalog and your light is top of page 88. This is a 2019 catalog so you may not be able to get spare parts.

First Instance I would suggest to email the company and ask about the issue, Five years and things really shouldn't break. The companies web page is

Oriel Lighting Splash page

If they cant help then we could go down the path to see what can be used to attach the shade to the base.

Dave

canny1

https://www.workshop.bunnings.com.au/discussion/comment/104126#Comment_104126

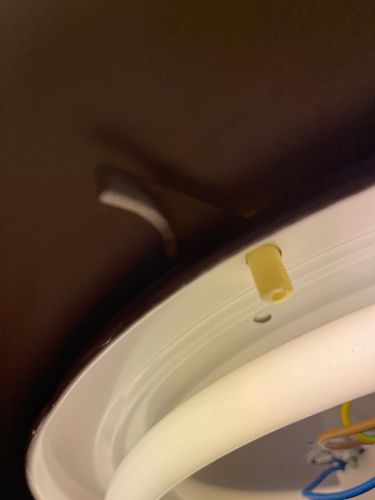

Hi, another pic

canny1

https://www.workshop.bunnings.com.au/discussion/comment/104126#Comment_104126

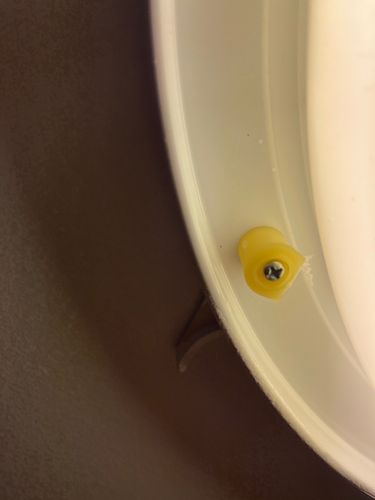

A different angle

canny1

https://www.workshop.bunnings.com.au/discussion/comment/104126#Comment_104126

And lastly, the cover is plastic thankfully or my mother might have gotten hurt when it fell on her head.

EricL

https://www.workshop.bunnings.com.au/discussion/comment/119122#Comment_119122

Hello @canny1

Thank you very much for posting those extra photos of your light fittings. I take it that the plastic post has a little nib at the end that twists around to hold the light cover in place. It might be possible to recreate the fitting but with different materials. I propose changing the post with a Ramset 3 / 16" x 16mm RamNut Anchor - 4 Pack in combination with a Pinnacle M8 Stainless Steel Flat Washer - 12 Pack.

The general idea is to remove the plastic post and replace it with the RamNut Anchor which is rubber and putting the washer at the end to serve as the clip to hold the light cover in place. It might take several attempts, but if fitted properly should hold the the light cover in place. Your other option is to contact the manufacturer and inquire about spare parts for your light fitting.

Please don't forget to wear personal protection such as gloves and goggles when working on your repair project.

If you have any other questions we can help with, please let us know.

Eric

canny1

https://www.workshop.bunnings.com.au/discussion/comment/104126#Comment_104126

Thanks mate. Lovely lady at Oriel is having a look to see if she can find anything but apparently a range for 2012 so not promising anything.

canny1

https://www.workshop.bunnings.com.au/discussion/comment/128105#Comment_128105

Thanks so much. If Oriel can’t assist may need to fall back to your suggestion. Have a great day.

Dave-1

https://www.workshop.bunnings.com.au/discussion/comment/133948#Comment_133948

Evening @canny1

🙂 Glad someone is having a look, Erics suggestion is along the same lines as what I was thinking but if you have hassles and they cant find a spare part I am sure we can figure out something to use 🙂

Dave

Gavin3500

https://www.workshop.bunnings.com.au/discussion/comment/137598#Comment_137598

Without an original clip it is hard to know that to use. They clips appear to be actuated by levers behind the light. This or the whitco version might work. https://www.bunnings.com.au/rolltrak-zinc-flyscreen-swivel-clip-offset-8-pack_p0227714
