Very simple jewellery box - yet another offcuts project

EdwardW
Junior Contributor

Very simple jewellery box - yet another offcuts project

Hi guys,

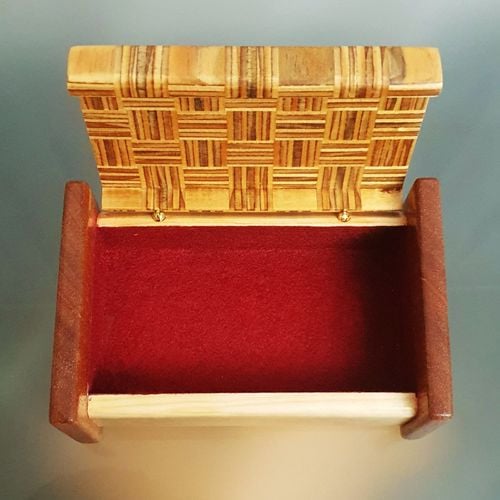

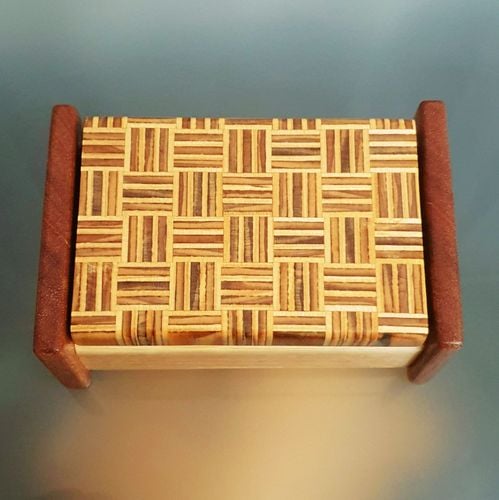

Sharing with you another small project I've built when I had too much small offcuts laying around... We all know this situation, when we have these thin strips of plywood left, and the only place they go is the fireplace.... But a little glue, and then decent sanding and finish will end up in this box lid!

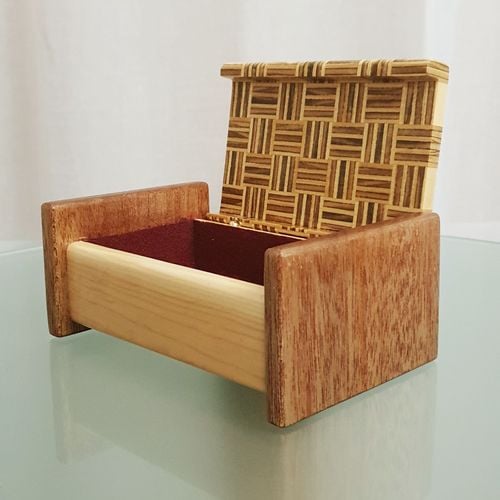

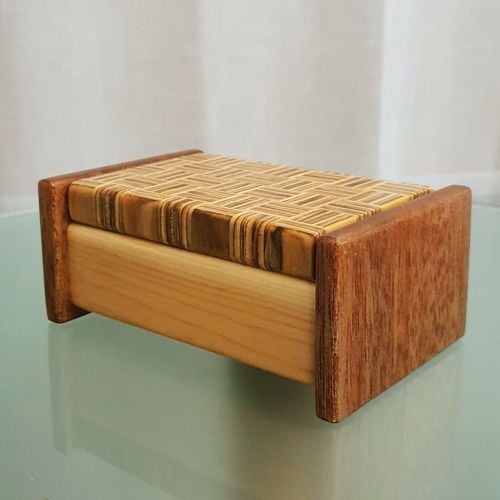

Sides - pacific maple. Body - laminated (fancy word for glued 😉) 50x19mm thick recycled pallet wood planks. Decorative barrel hinges and lid made of few strips of 19x19 mm mixed ply strips, laminated... The cavities for both body and lid routed with a straight mortising bit. Sides joinery - mortice and tenon. Eventually, the inside flocked with burgundy flocking powder.







JaneK
Moderator
Moderator

Re: Very simple jewellery box - yet another offcuts project

This is beautiful @EdwardW! There's a lot of skill on display here. Were the hinges tricky to get right? What advice would you have someone using barrel hinges for the first time. What should they consider? I'm sure you've inspired a few of our community members to have a think about how they can use their offcuts to create something special.



Jane



Found the answer you needed? Mark it as Most Helpful
Reply
Loading...
EdwardW
Junior Contributor

Re: Very simple jewellery box - yet another offcuts project

@JaneK



Yes, to be honest, fitting 6mm barrel hinges was a lot of very careful work. I'd say the toughest part is to drill to the right depth. So besides suggesting to get a drill press (which I ended up doing) I say use a calliper to measure the length of the hinge, carefully mark the depth on the drill and start half way through, and slowly get to the depth needed.



Another piece of advice (again, learned the hard way 😉), the drilling goes before chamfering, and not the other way around... I made this mistake, but luckily was successful to still drill straight... Best drill first, chamfer later.



Third one - finish before glueing the hinges in. That way you can use spray if you want... Flocking area - cover with painters tape. If polyurethane gets there, using flocking glue will be a bit of an issue, and it's very uncomfortable to sand in there.

Reply
Loading...
MitchellMc
Bunnings Team Member
Bunnings Team Member

Re: Very simple jewellery box - yet another offcuts project

Lovely work @EdwardW. Patience is not one of my virtues, and I would struggle with that lid.



Many thanks for sharing.



Mitchell



See something interesting? Give it the thumbs up!
Reply
Loading...
EdwardW
Junior Contributor

Re: Very simple jewellery box - yet another offcuts project

@MitchellMc thanks!



And if you thought THIS needs patience, wait for the next one :smile: :smile: :smile:
