Backyard timber pergola

diy_hausdesigns

Project was to build and install a pergola by attaching it to the existing fence uprights and the fascia (through to the roof rafters) of the house.

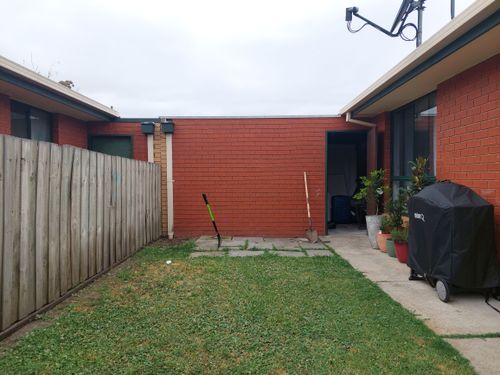

Before

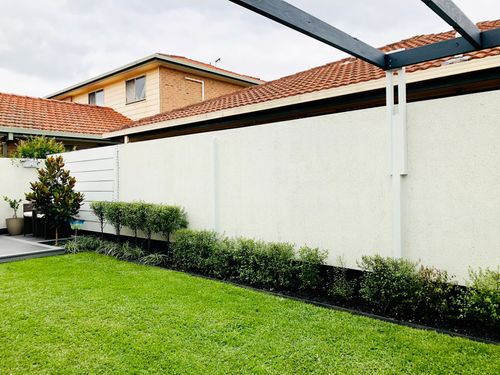

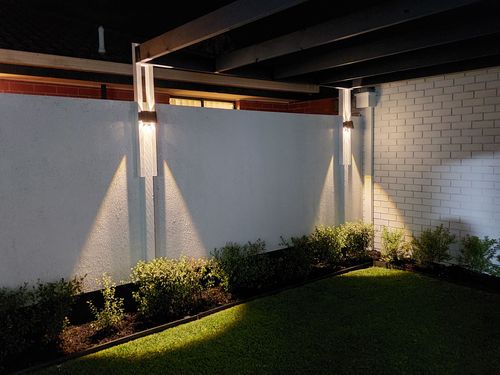

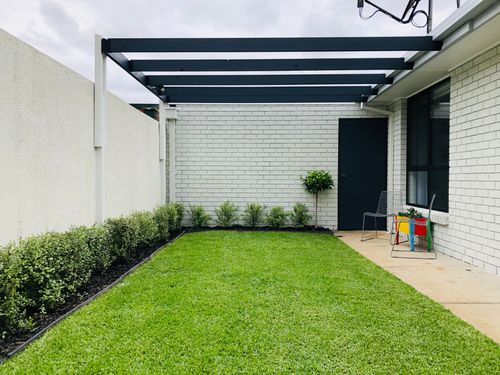

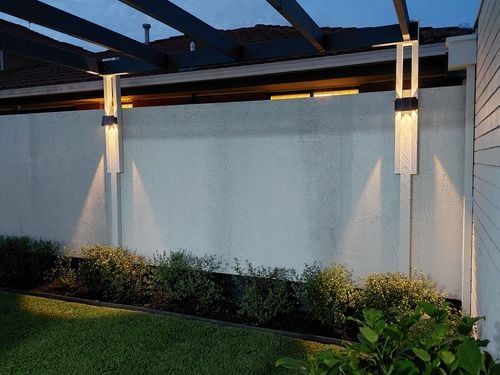

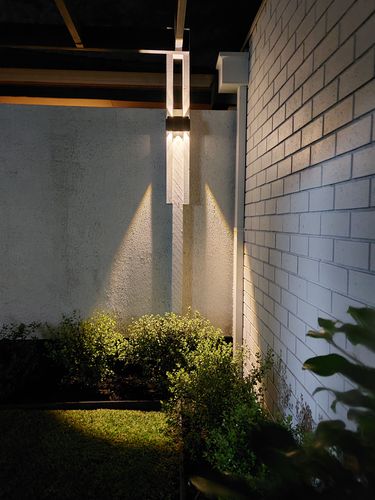

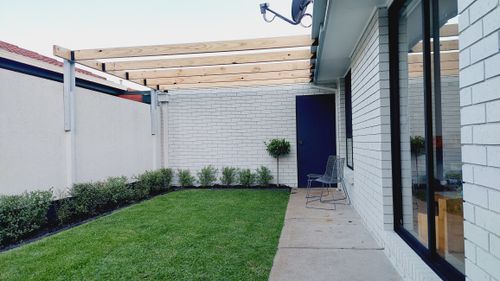

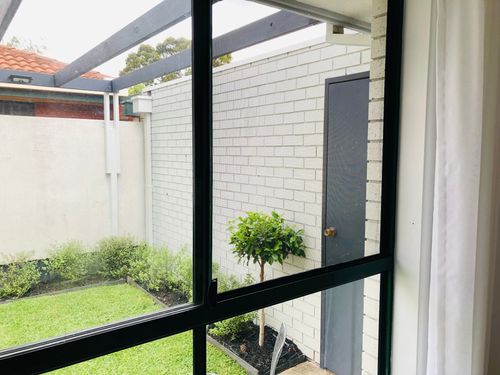

After  

Project was to build and install a pergola by attaching it to the existing fence uprights and the fascia (through to the roof rafters) of the house

Materials

140x45mm treated structural pine timber

125x45mm joist hangers

140x45 concealed joist hanger

Timber batten screws

Tools

Mitre saw

Jig saw

Angle

Drill

Steps

Step 1

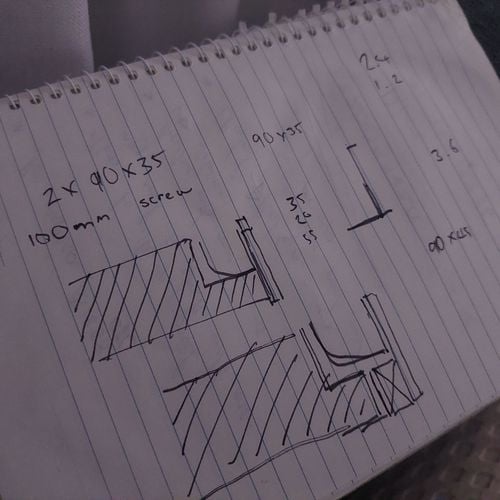

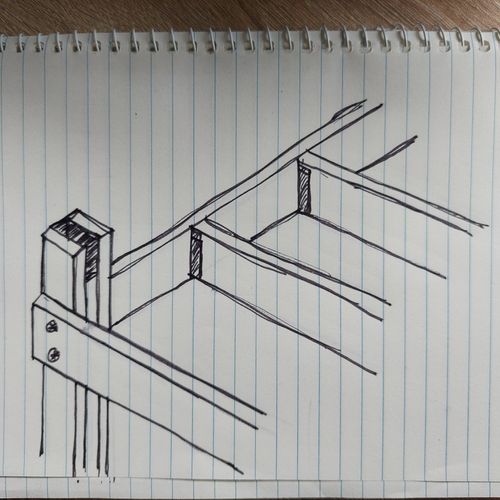

Design ideas (not the final)

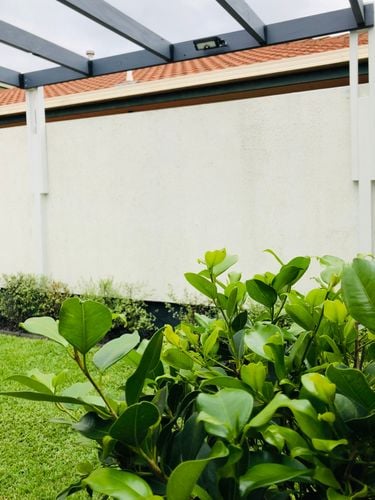

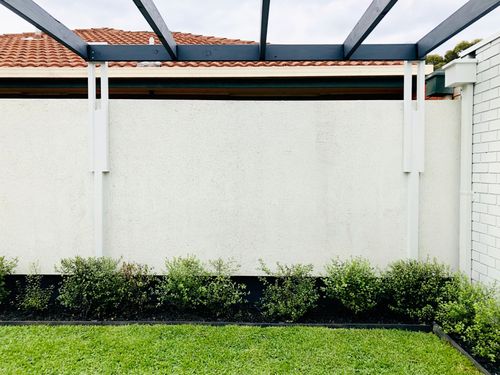

Uprights and barge board

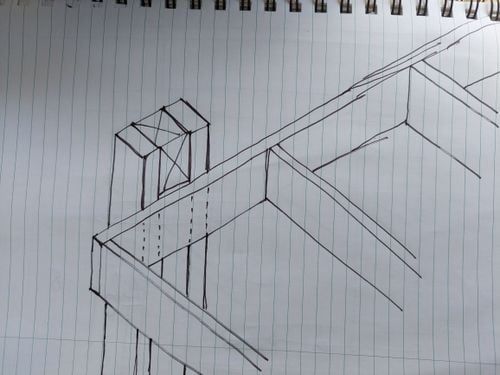

Had to figure out how to extend the uprights of the fence. This took some creativity but worked out something in the end.

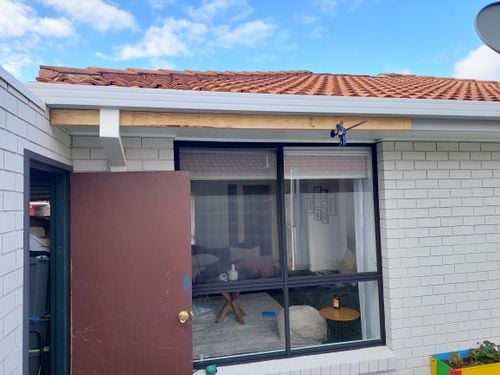

I also installed the barge board going through the existing fascia to fix it to the rafters.

Step 2

Cut timber to size

The next step was cutting the timber to size using a mitre saw and jig saw to allow clearance for the gutter.

Step 3

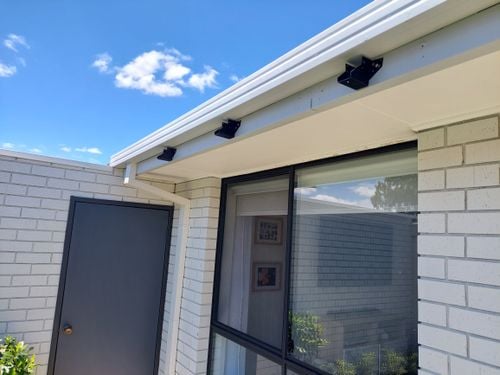

Install joist hanger

Next was installing the joist hangers after painting the barge board.

Step 4

Rough in

I then did a dry fit to see if all my measurements were good and the whole pergola was level.

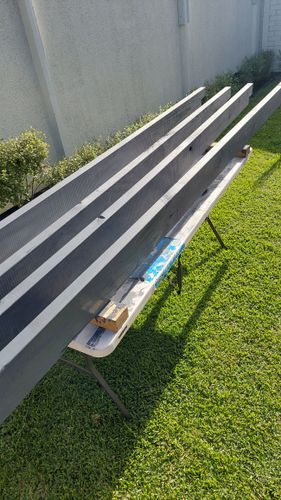

Step 5

Final trim and paint

I then disassembled to the pergola to trim off some of the timber and painted all the joists.
