How to raise TV height with flatpack stand?

Noyade

Hi.

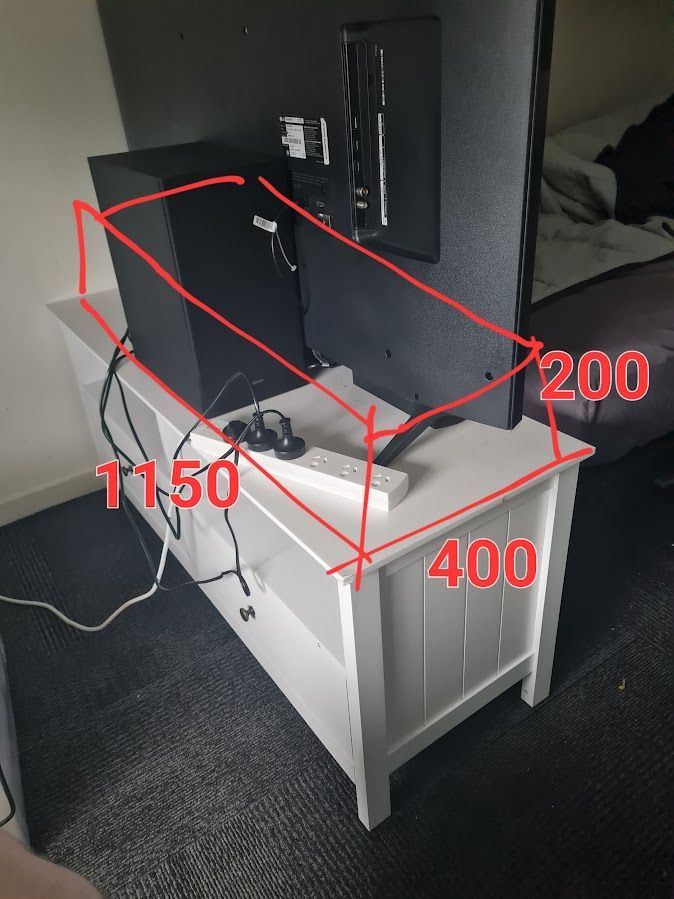

I'm looking for ideas to extend the height of the TV with the dimensions below.

This is cramped University accommodation.

The main criteria is it must be able to be transported on a bus in flatpak mode and then reassembled on arrival.

Hoping that makes sense.

Cheers!

Find more posts tagged with

Tools and Materials

Craft and Hobbies

Furniture

Building and Construction

Accepted answers

All comments

MitchellMc

Hi @Noyade,

Any chance you could cut off the existing legs, install leg mounting plates and then attach legs that are 200mm + the length of the existing legs? So, maybe something like these Adoored 230mm Pine Square Furniture Legs. Alternatively, there might be a one-piece leg such as the Adoored 60 x 230mm White Round Metal Furniture Leg that would suit.

Or, is the idea that you want to create additional storage under this stand?

Mitchell

Noyade

He wants something that can be placed on top of the existing cabinet extending the height by 200mm for the TV - better viewing.

I was thinking two specrite boards (8.4 kg) with some sort of spacer/s?

https://www.bunnings.com.au/specrite-1200-x-405-x-18mm-timber-multi-use-pine-panel_p0419611

MitchellMc

The addition of legs would certainly put the TV at the correct viewing height @Noyade, but I like the idea of creating a stand.

I'd suggest purchasing three lengths of the panel and cutting the third into the end spacers and then one for a mid-divider, as below. By my calculations, they should be 164mm long to achieve your 200mm height.

Mitchell

Noyade

Hi again @MitchellMc

"I'd suggest purchasing three lengths of the panel"

I was hoping less would be better. 😁

What about a 'mini' table?

One board - six of these - and six of No. 40192 cut to say 180mm with some form of friction creating rubber glued on the ends?

For the bus trip - six legs in a bag and one bracketed board.

No tools required for assembly.

MitchellMc

That sounds like it would work @Noyade. Those bolts on the ends are typically designed to thread into a leg bracket. You could drill suitably sized holes in the panel and screw the end bolts directly into the timber. I'd also glue the joint for stability.

Mitchell

Dave-1

Afternoon @Noyade

How about something like Kaboodle 150mm Wine Rack - Gloss White It dosnt have quiet the dimensions you want but depending on how far apart the feet are on the tv it could work? I am just a little worried about adding too much weight to the existing flatpack cupboard is all.

Dave

Noyade

"How about something like Kaboodle 150mm Wine Rack - Gloss White "

I love him @Dave-1 - but not that much. 😁

I'll try the 6-legged table.

Heading to Bunnings soon - I'll keep ya posted.

Noyade

"I love him @Dave-1 - but not that much."

I take that back - he's a good lad, so I bought a nice piece of Merbau instead of pine.

And a big thumbs up to the Bunnings staff members of Aisle 10 - who helped me find the sixth leg.

Cheers!

Dave-1

Afternoon @Noyade

hahaha that will work 🙂 and good idea with the six legs 🙂

I am sure he will sit back and admire the effort!

Dave

Noyade

Afternoon @MitchellMc and @Dave-1

It worked out rather well - and very strong. The Merbau was a much better choice.

Two tips from the experience.

1) - I used a mini abrasive drop saw to correct the bolt lengths.

2) - The screws with the mount kits weren't to my liking and they were slotted heads.

So I went with full length threaded stainless steel screws with Phillips heads.

Cheers.

EricL

Hi @Noyade

Thanks for sharing that update. That TV stand looks very strong and sturdy. It should be more than enough to hold the weight of the TV. The subwoofer can then be laid horizontal under the shelf allowing the TV to be at the center of the stand. My only suggestion is to add Surface Gard 25mm Anti Skid Pads to the feet of the stand to prevent the TV stand from shifting or sliding around.

Eric

Dave-1

Afternoon @Noyade

Now that looks pretty decent 🙂 Very handy having a chop saw 🙂

I do like the anti skid pads to help hold it in place that @EricL has mentioned.

Dave

Noyade

If you look closely on the previous page, my Bunnings goodies collection photo from this morning has the anti-skid pads. I went with Slipstik Gripper pads 38mm.

https://www.bunnings.com.au/slipstick-38mm-1-round-gripper-floor-protection-pads-8-pack_p0250023

Five star rating! Only the best for my boy! 😁

"The subwoofer can then be laid horizontal under the shelf allowing the TV to be at the center of the stand."

That's a brilliant thought @EricL !

I was gonna cut them back but just saw your post. I texted him - the subwoofer is 190 mm on it's side. I currently have 240 mm clearance.

Happy days!

Noyade

EricL

Hi @Noyade

Thank you for the update. That looks fantastic, now you can watch the TV with your feet in front of the screen.

Eric

Dave-1

Evening @Noyade

🙂 looks solid and fit for purpose! And all able to be flatpacked! Love it!

Dave

Noyade

The biggest issue was the bus trip.

He said there was water in the luggage compartment.

Seems odd, but the wood oil 'ran.'

Dave-1

@Noyade

🙂 I can imagine trying to maneuver that around a full bus lol

Sometimes the oil might run on items and high humidy in those student rooms? And I have seen air con condensation on buses. Did it effect the top of the board?

Dave

Noyade

G'day Dave. @Dave-1

They pressure wash the bus before departure - I suspect (dunno why tho) a small amount of water entered the baggage compartment below the passengers.

I also suspect the board was placed on a small pool of water by the bus driver and sloshed about during the trip. When my son collected it at the terminal end, the board was already streaking and running.

Only one side affected - he took that photo when he was assembling it. After talking to paint staff this morning I probably never left enough time for the Merbau to soak up the wood oil before the trip. No damage done - I'll redo it a later date.

Cheers!
