CNC / Assembly table build

Highlighted
Established Contributor

CNC / Assembly table build

IMG_0127.jpegHi all,



Seeing I'm on some annual leave I'm actually getting a chance to use my workshop rather than using it for storage.  So I've started to organise it.



The first project over the last few days has been to build a table for my 6040 CNC that I can wheel around as its been sitting on a fixed table since I emptied out my storage units.



After building the table I added some drawers to store all the relevant bits and pieces for the CNC.



I'll post the plans shortly as I can't upload PDFs



I did want to build it a bit longer at 1200mm however was limited to the lengths of 35x70 timber available so is slightly shorter by 60mm than my posted plans



Bunnings Timber ready to goBunnings Timber ready to go



Timber Cut to LengthTimber Cut to Length





Second FrameSecond Frame






LegsLegs



Casters AddedCasters Added

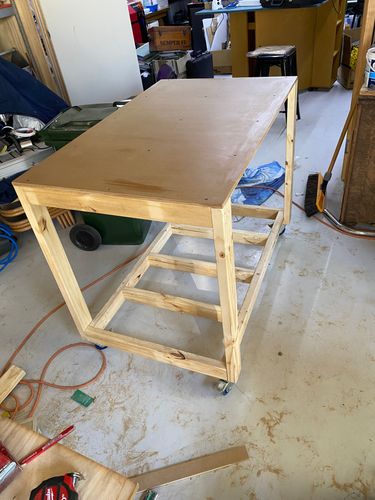

MDF Top onMDF Top on



6040 CNC test in its new home6040 CNC test in its new home

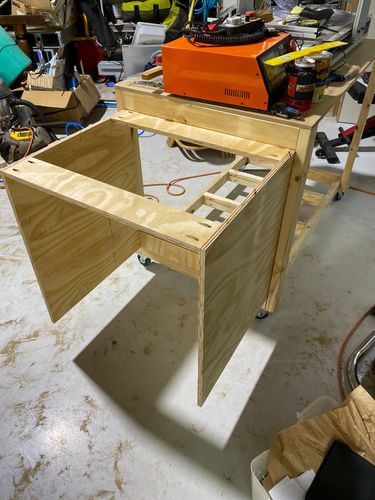

Drawer frameDrawer frameAfter a bit of knocking its inAfter a bit of knocking its in



Mounting Drawer SlidesMounting Drawer Slides



installing the drawers onto the slidesinstalling the drawers onto the slides

Drawers installedDrawers installedController in its new homeController in its new homeTest fit of drawer facesTest fit of drawer faces



Rear Storage ShelfRear Storage Shelf






Highlighted
Established Contributor

Re: CNC / Assembly Table Build

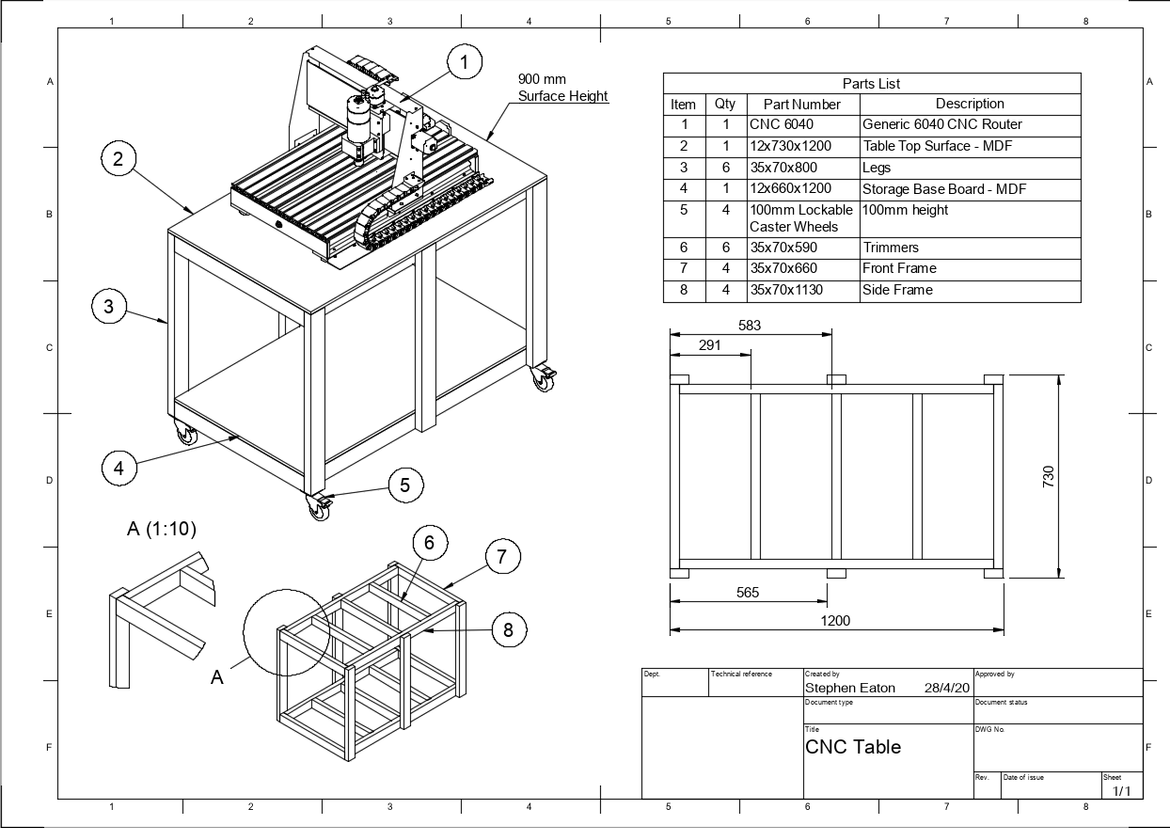

I couldn't upload PDF so have uploaded a screenshot of the plans I drew up in Fusion 360.  As you can see they don't include the drawers as these were done in situ after the build.



Some notes:

  • I used pocket holes for all frame and drawer joints with the exception of the legs
  • All the frame timbers were the short offcuts available from Bunnings.
  • Adjust leg heights to suit
  • Drawer Boxes and frame I used 15mm ply
  • Drawer bottoms 6mm ply



CNC Table Drawings - Fusion 360CNC Table Drawings - Fusion 360



Reply
Loading...
Highlighted
Established Contributor

Re: CNC / Assembly table build

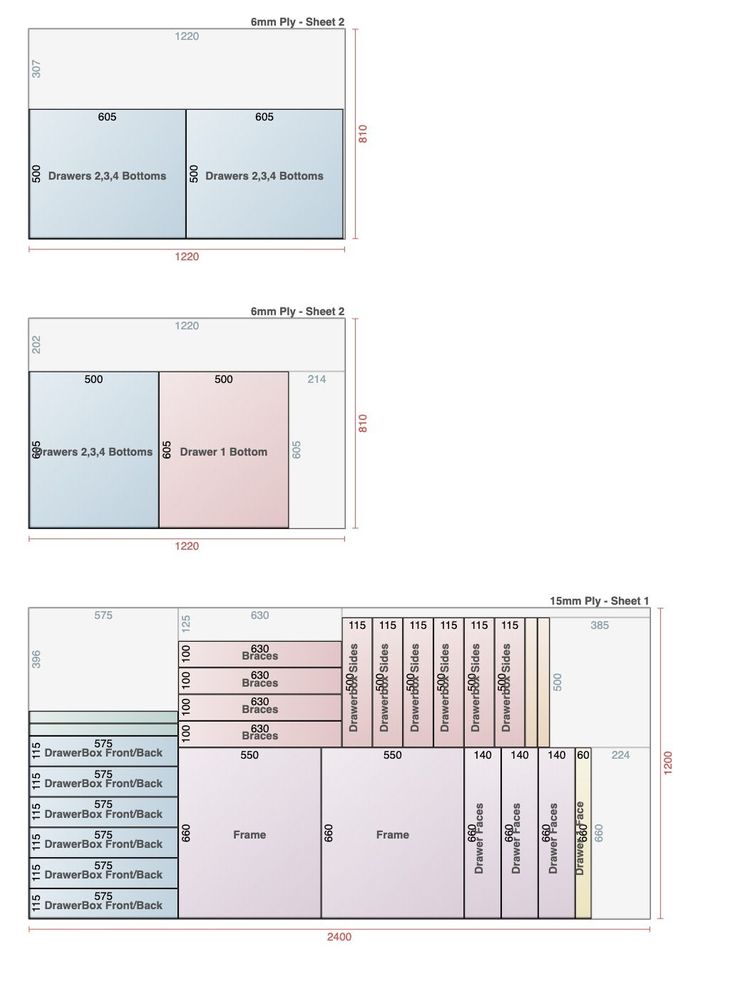

I used https://www.cutlistoptimizer.com/ for my drawer sheet cuts which is free for up to 10 optimisations per day.



CNC Table Drawer cutsCNC Table Drawer cuts







Reply
Loading...
Highlighted
Community Manager
Community Manager

Re: CNC / Assembly table build

Well done @Seaton, love your work. Thanks for sharing such detail so members can reproduce your handiwork.



Jason
