How to fix a loose shelf in the walk-in wardrobe?

Hey Gents,

I have one loose shelf in my walk-in wardrobe as in pics. I have no idea where I can screw in to give more support and force the shelf back to the correct position. What's the best option to fix this?

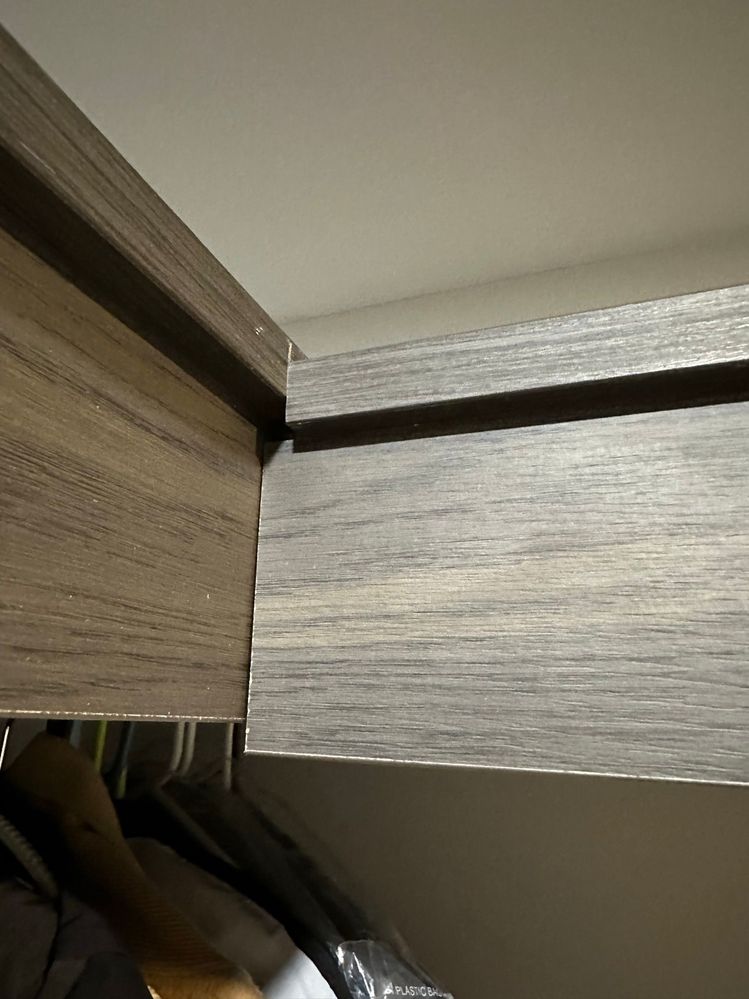

Front-Side of the shelf.

Front-side

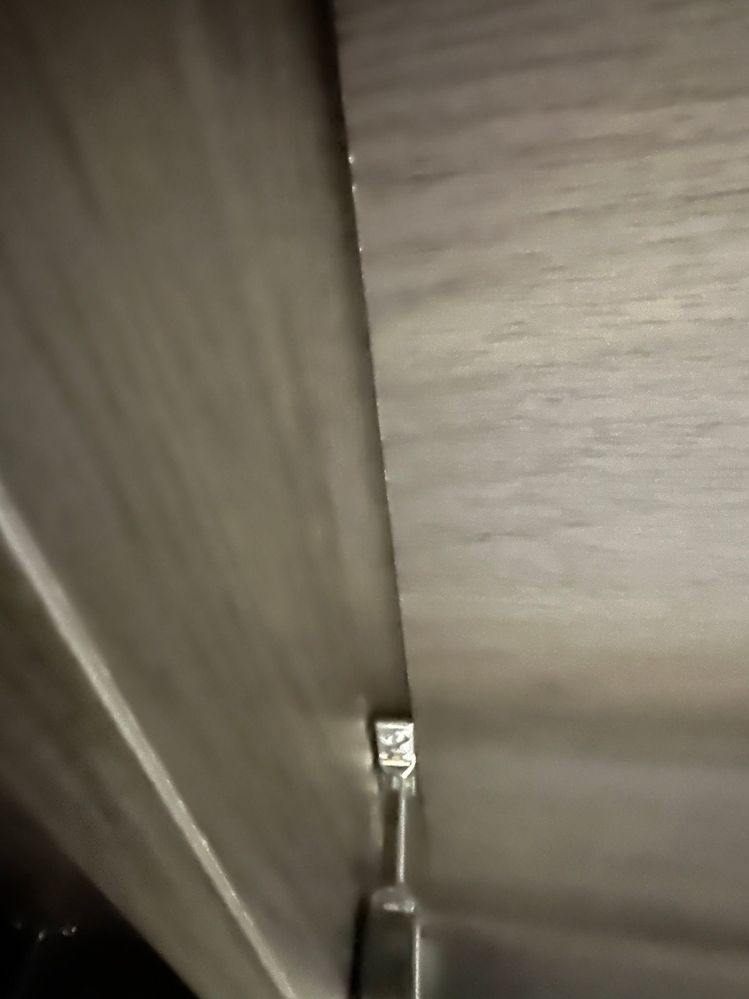

Botton side of the loose shelf

Botton-side

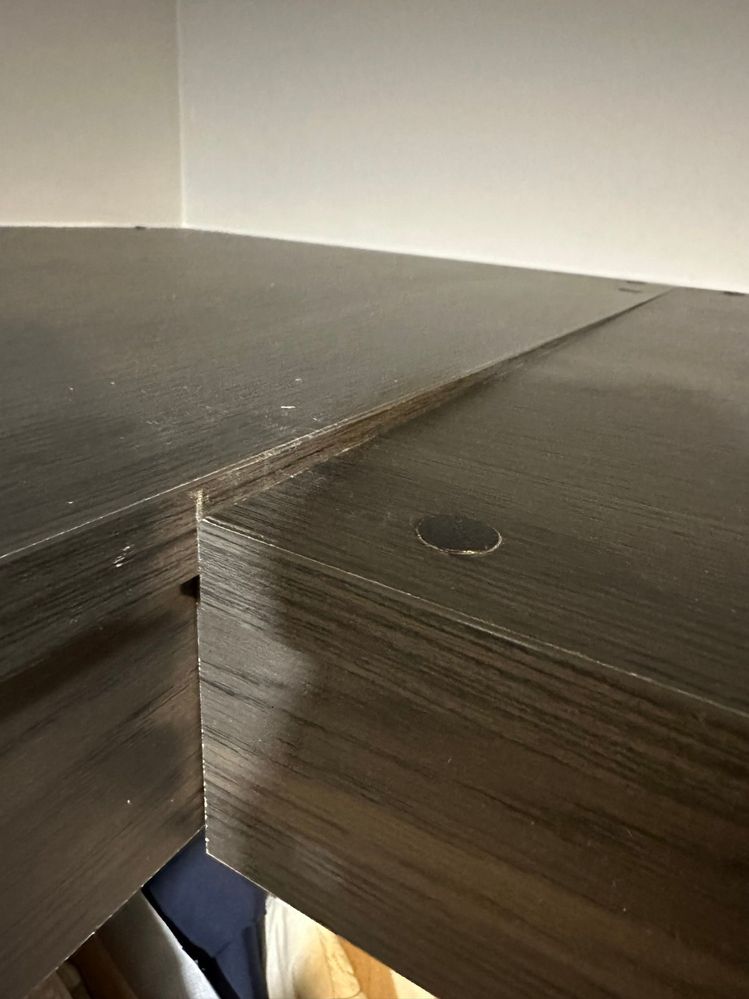

Topper-side of the shelf

Top-side

The other side of the loose shelf.

The other side of shelf

Find more posts tagged with

Furniture

Repairing

Accepted answers

All comments

Noyade

Morning @JamesLiu

It looks to be that locking pin and round nut system in your "top-side" photo?

Has the pin failed I wonder?

JamesLiu

Morning @Noyade

Thank you for the hint. But I am unsure where the locking pin and round nut system is.

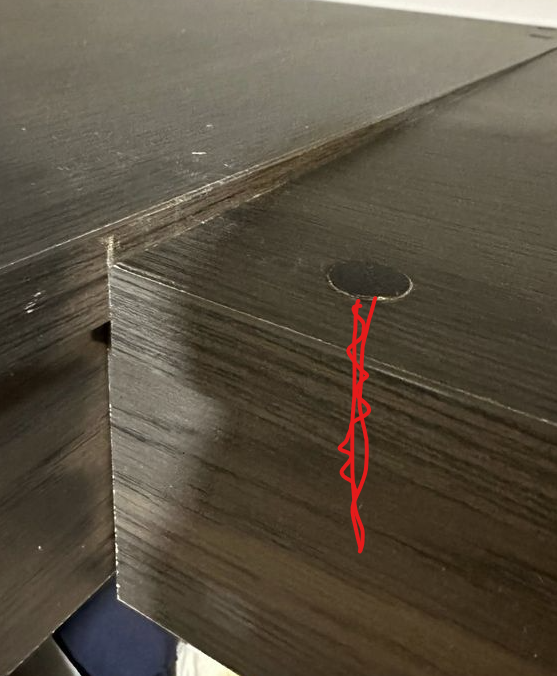

If the locking pin is under the black hole cover, I think it is a screw for locking in the front panel of the shelf. If I am wrong, please correct me. Thank you.

Screenshot 2024-05-01 093850.png

MitchellMc

Welcome to the Bunnings Workshop community @JamesLiu. It's terrific to have you join us, and many thanks for your question about fixing a shelf.

If you are unable to locate a locking mechanism that fixes the shelves together, and the shelf next to the sagging one is secured appropriately, then perhaps you could re-align the shelf and screw through the side of it into the other. You need to use screws that are slightly shorter than the thickness of the two side panels.

Please let me know if you have any questions.

Mitchell

Noyade

Hi @JamesLiu

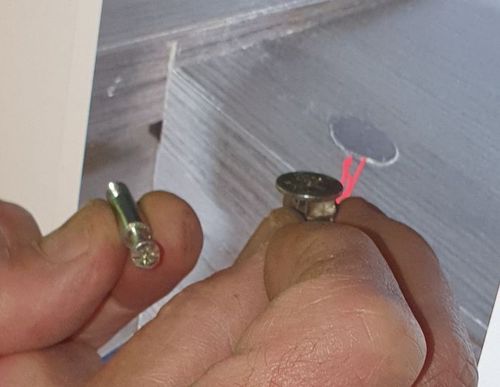

This is what I thought was happening - pin has fatigued under the weight. Probably wrong - I tend to be.

JamesLiu

Thank you all for the help. I ended up using three 25mm steel angle brackets to fix it.
