Homemade pinball

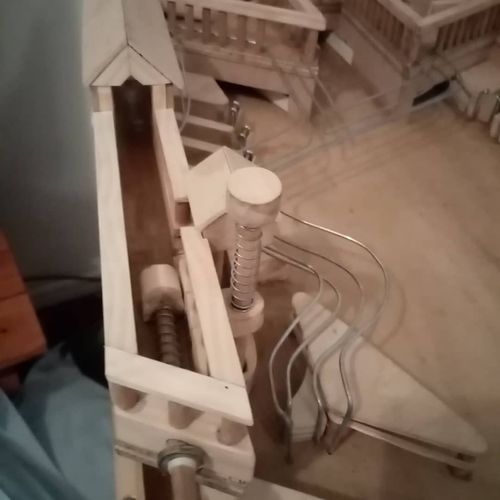

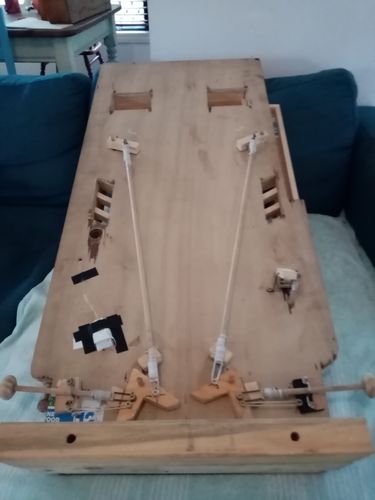

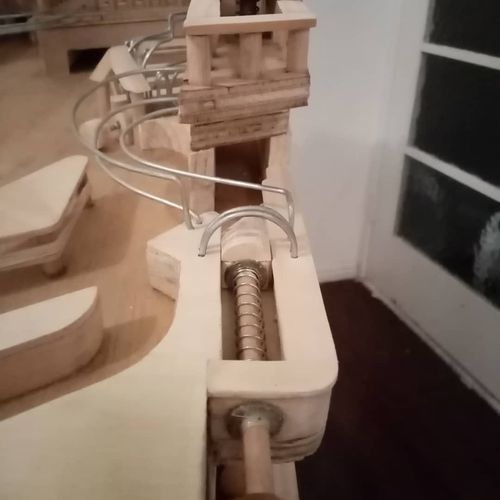

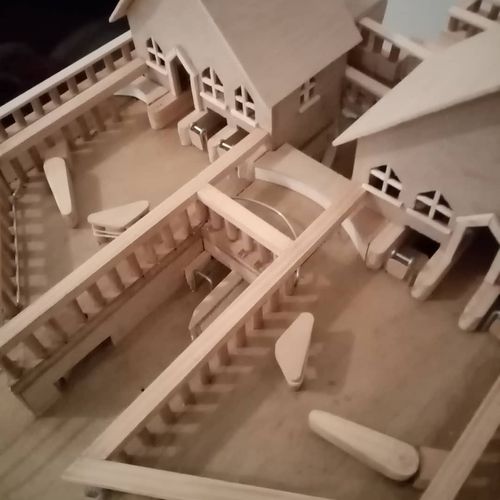

I made this Pinball machine just need to varnish to finish. Designed myself as I went. Various Ply, mdf and pine, coat hangers, springs and trunking/conduit.

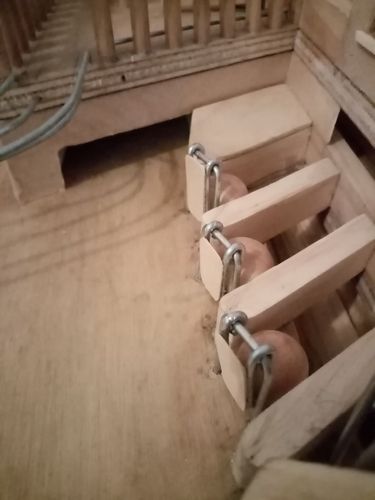

20 Cedar ball points to score, 5 steel multiballs, 1 push button for an elevator and 1 button for steel play balls, 2 Ceder ball release tunnels, 2 plungers and 4 flippers.

Find more posts tagged with

Craft and Hobbies

Building and Construction

Comments

MitchellMc

Amazing work @MarcL! The level of detail you've gone into is absolutely astounding, and the lighting really is the icing on the cake. How many hours would you estimate that you've spent on creating it?

Many thanks for sharing this incredible project.

Mitchell

MarcL

https://www.workshop.bunnings.com.au/discussion/comment/12846#Comment_12846

Thankyou @MitchellMc Roughly 30 hours. Did about 30 mins a day over the last 3 months with a few days off in there👍

redracer01

Hello @MarcL

Beautiful! This is a master class in creativity and mechanical works. It will provide endless hours of entertainment and is a work of art even when not being used. For sure it will inspire creativity in all our readers! Looking forward to the final reveal once painted.

Cheers

Red

Meling

This is amazing, so good love it

Jason

Brilliant stuff @MarcL. Congratulations. It's a work of art.

Jason

diy_hausdesigns

Simply amazing!

ironbark

Obviously a 'Pinball Wizard' - great work, well done!

OzStick

I've just been pointed towards this thread by @Jason as he knows I'm heavily into home arcade gaming, albeit more of the electronic variety!

Having seen a few similar DIY pinball tables in my online travels I can safely say that this example, as well as the others made by MarcL are simply stunning! Kudos to you sir for having the vision, drive and creativity required to achieve such an awesome end result.

Noyade

https://www.workshop.bunnings.com.au/discussion/comment/21131#Comment_21131

Magnificent!

Well done young man! - @MarcL

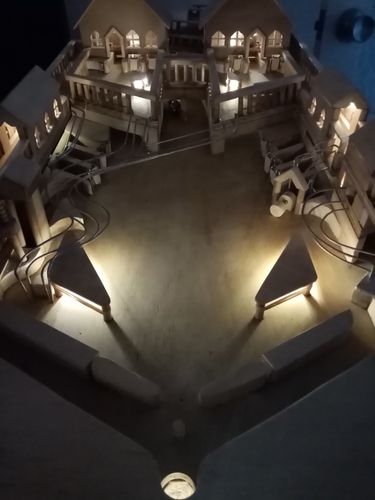

The bottom photo almost looks like an English village lit up at night.
