Building the BBQ Arbor

Wayne
Becoming a Leader

Building the BBQ Arbor

I had limited space to find a home for my new gas BBQ Grille so I decided to build a dedicated decorative Arbor for it.
BBQ Arbor29.jpg
After searching the internet for design ideas and working out the required dimensions and a mental picture of what I wanted I got started on the base.
BBQ Arbor1.jpg
I glued together three 140mm x 35mm pine boards with cutouts in the centre board that would act as a mortise for the upright ends of the arbor.
BBQ Arbor2.jpg
Then cut some angles on the front and back for decoration, rounded over the edges and sanded to a smooth finish starting with 80 Grit then 120 Grit, 180 Grit and finally 240 Grit.
BBQ Arbor3.jpg
It appears I never took any photos of the rest of the base construction, but it was just a frame of 70mm x 35mm framing timber screwed and glued with a rabbet cut along the lengths at the top to nail down some slavaged pine decking offcuts as the floor.
BBQ Arbor4.jpg
I stained the base with a Golden Cedar stain.
BBQ Arbor9.jpg
I had bought a used Mortising Machine through Gumtree Classifieds and decided I would make the end panels using Mortise and Tenon joints. I calculated the appropriate size then used some scrap to make a sample of the joint.
BBQ Arbor8.jpg
I set up the fence and a stop block on the Mortiser and drilled out the mortise joints on the 4 uprights.
BBQ Arbor7.jpg

BBQ Arbor10.jpg

BBQ Arbor11.jpg
I set up the Tenon Jig and made the vertical cuts for the tenons in the side runners.
BBQ Arbor12.jpg

BBQ Arbor13.jpg
Then used the Miter Gauge on the Table Saw to finish off the Tenons.
BBQ Arbor14.jpg
Finished Tenon.
BBQ Arbor7.jpg
Then assembled the end frames with glue and clamps.
BBQ Arbor16.jpg
Once again I missed taking photos of some of the construction being the top section of the Arbor. This consists of a front and back fascia board with an angled cut on the ends 140mm x 35mm. I did however, make an internal frame inside that which screwed to the end frames and to the fascias. I then made the 5 cross members with matching angled cuts for the top which are glued and screwed in position.
BBQ Arbor17.jpg
I finished staining the arbor then BBQ Arbor19.jpgcut up some treated pine batten that I had lying around to 19mm square and rounded over the ends then glued and bradded to make a decorative trellis on each side panel.
Next I cut up some scrap boards to make brackets and also make some planter boxes for the ends.
BBQ Arbor20.jpg
BBQ Arbor21.jpg
I glued a couple boards together for each bracket.
BBQ Arbor23.jpg
Then drew a pattern that I liked and cut them out on the band saw and sanded them.
BBQ Arbor25.jpg
I made it as a shelf and the planter box just sits on top without any fastening.
BBQ Arbor26.jpg
BBQ Arbor28.jpg
All done with the BBQ in place.

Wood Working with Wayne

Re: Building the BBQ Arbor

That's what I was looking for. Thank you great job! Ok for me to copy top section and side boxes? Cath

Re: Building the BBQ Arbor

Ah, excellent Cath (@Giveitago).



Glad to see you have found the post you were referring to. I'm sure @Wayne and other keen woodworking aficionados on Workshop would be happy to help you to build something similar. Please let us know if you need a hand with anything.



Jason

See something interesting? Give it the thumbs up!
BIM_Engineer
Former Community Member

Re: Building the BBQ Arbor

@WayneI noticed on the google image search your image was used to promote
Garden Arbor trellis and Bench Woodworking Plans for sale
Your might want to put your name on your images in future
BTW excellent job
Cheers

Re: Building the BBQ Arbor

Thanks BIM_Engineer,
I just had a look and whilst that is the title (and a few others also featuring that image) all direct to a Pinterest page with many Garden Arbor pictures and links, and that Pinterest link directs back to here at Workshop.
And I had my hopes up for a copyright breach and big $$$$$$'s lol

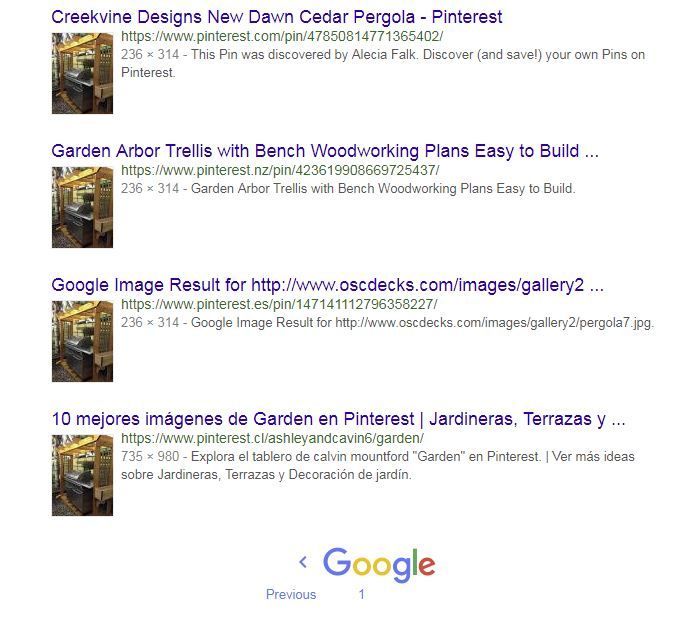

BBQ Arbor Google Image Search.JPG

Wood Working with Wayne
BIM_Engineer
Former Community Member

Re: Building the BBQ Arbor

@Workshopshould be doing more to improve the overall visitors experience, content, safeguard members contributions and (dare I say) increase BUNNINGS SALES
.Blah,Blah, Blah. Keep up the good work Cheers
