DIY repair on a vacuum cleaner circuit board

A mate had a short circuit on his Shark Navigator vacuum cleaner. We spent some time trying to get a local electrician to do a board level repair, but couldn't find anyone to do it. We called the Shark people and their solution was to trade the whole unit in and they would sell him a new one, because they don't have the parts.  Since this was 6 years old, I said we aren't going to lose anything by me trying (and I've said elsewhere, I'm not a handyman).



I knew it was a relay and diode that had blown, as I could see it, and using a multimeter I could see all of the other parts were ok, and all of the circuit paths were fine.

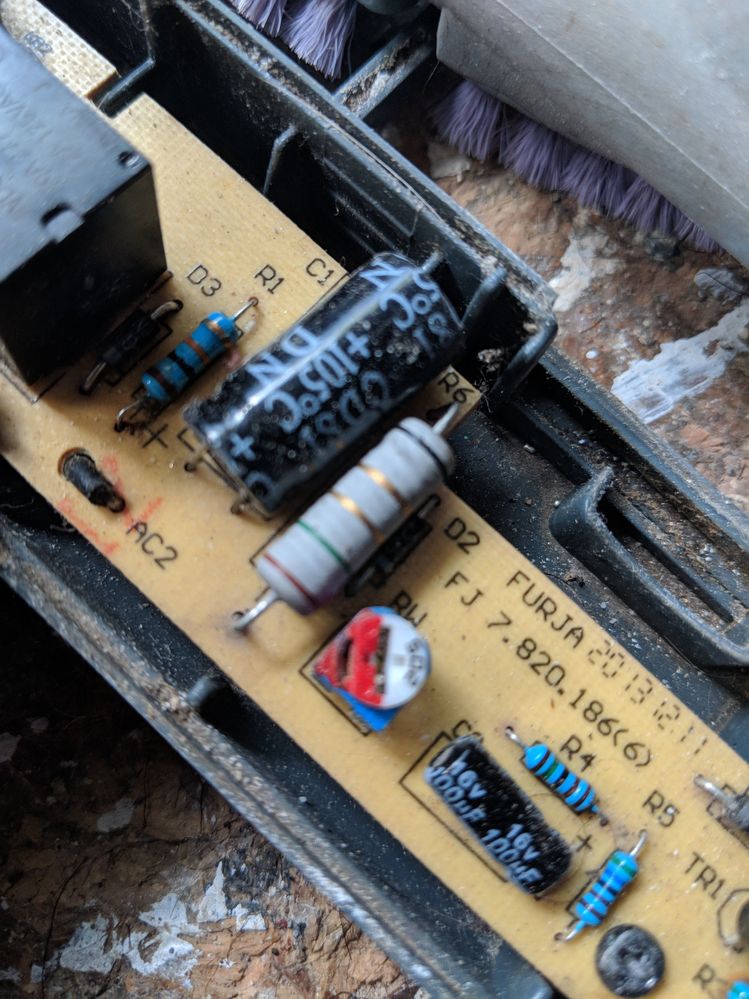

So I watched a few Youtube videos on circuit board repair (I've never done this before, and was convinced I was likely to make it worse - I'm OK at makiing a circuit), and I desoldered and removed the broken bits:

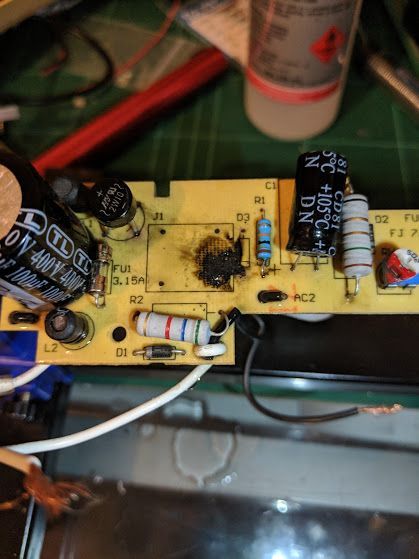

burnt board.jpg

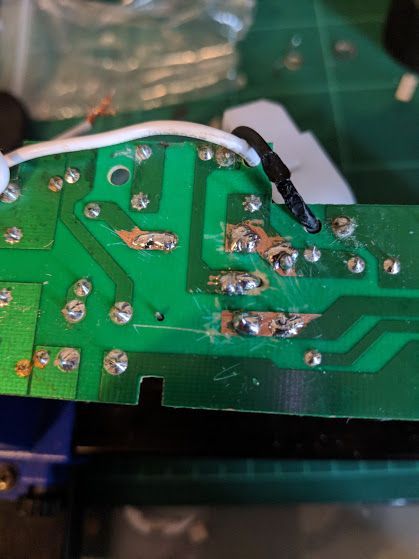

You can see the burned bit.  Underneath, the copper had been ruined at these spots this was my big fear at repairing, because scraping the circuit to expose more copper wasn't something I was confident at doing- I've ruined circuit boards before by using too much heat.  But I did it. In this photo you can see the broken copper:

bottom of circuit.jpg

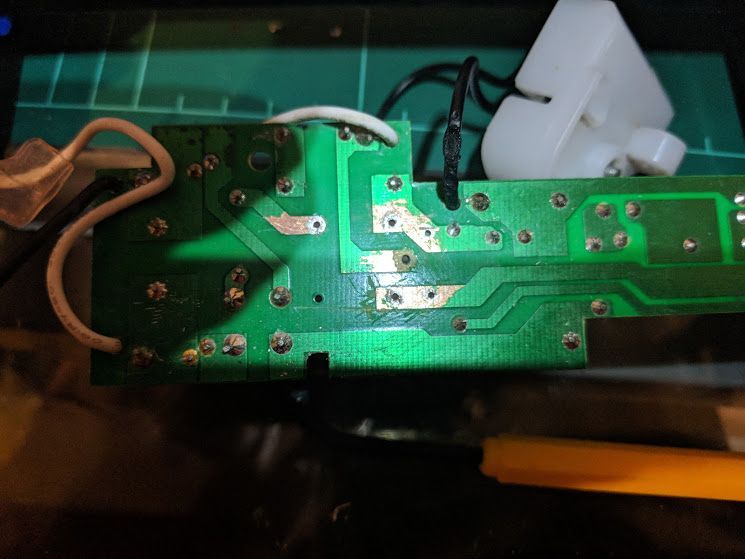

Cleaned the burned bits with isopropyl alcohol.

The diode was a standard 1N4008 (and I have about 100 of them) so that was easy to solder in.

The relay was $7.95 locally bought.

cleaned circuit.jpg

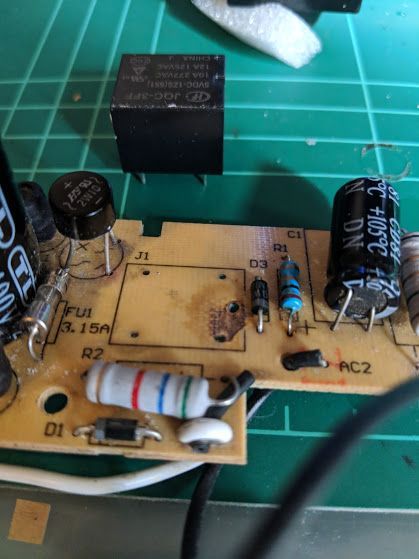

Here's the fixed circuit so you can see my soldering:




Finished:




and it all works.  About 2 hours taking it apart, fixing and putting it back together.  $7.95 versus $400.00? No contest:grin:
