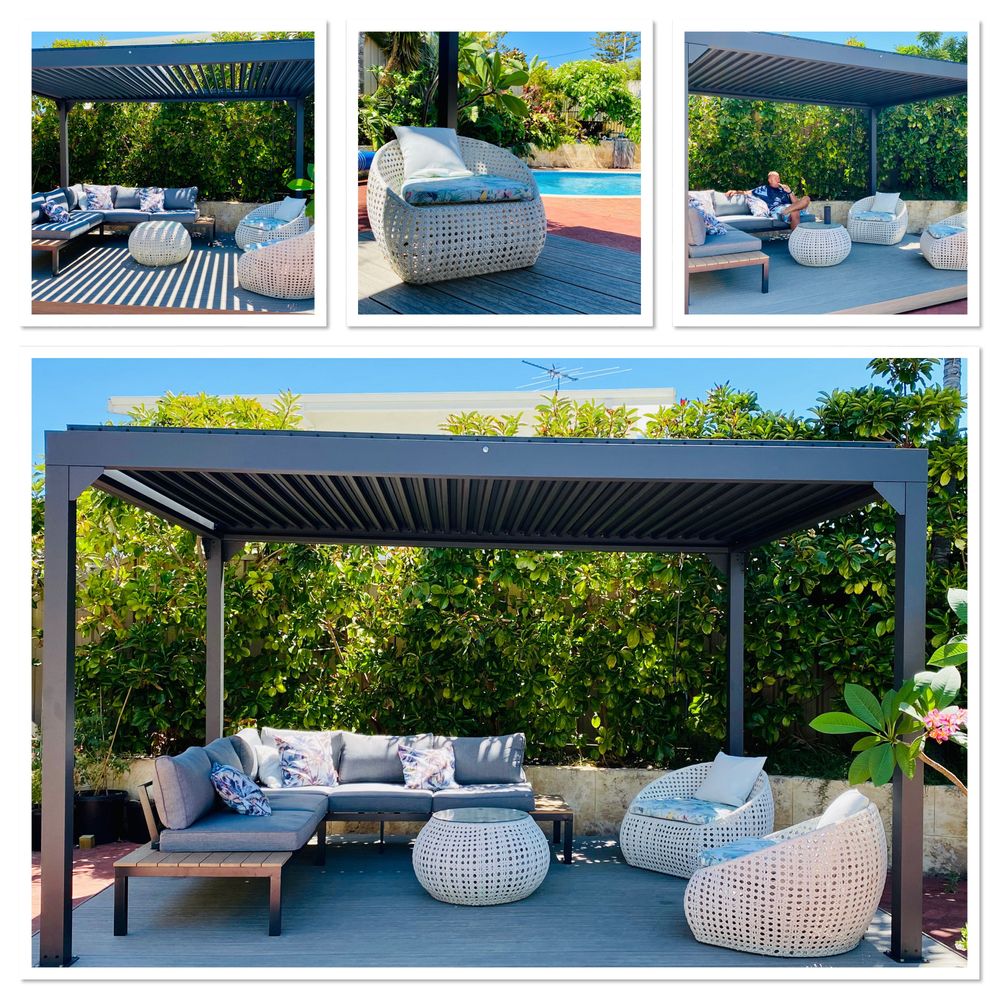

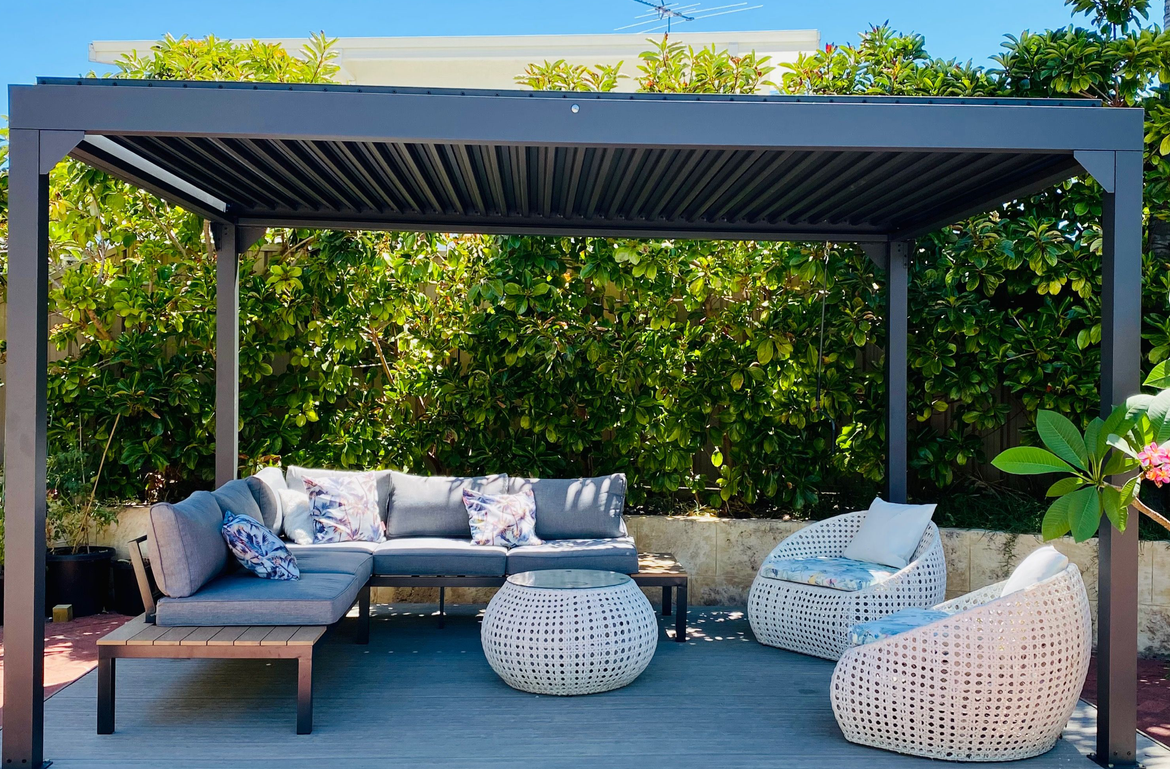

Timber decking on existing pavers as a base for an aluminium gazebo.
The project

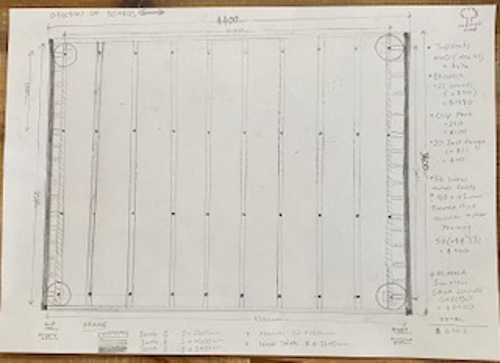

I was a newbie attempting this deck. I ended up using TuffBlock Instant Foundation System Deck Supports for the foundations (the 'dots' in my diagram below). The deck is 3.4 x 4.4m in order to hold a 3 x 4m Mimosa Lava Portsea Gazebo fixed on the top. So, I needed to consider two things - hiding the TuffBlocks and making sure the gazebo poles sat over the corner foundations.
The deck extends a total of 200mm out each side, with noggins to stabilise. It sits in the TuffBlocks, and had to be at least 35mm depth. Ideally, I'd rather make them 3.4m long (so I didn't have to buy 3m lengths and have to join them).

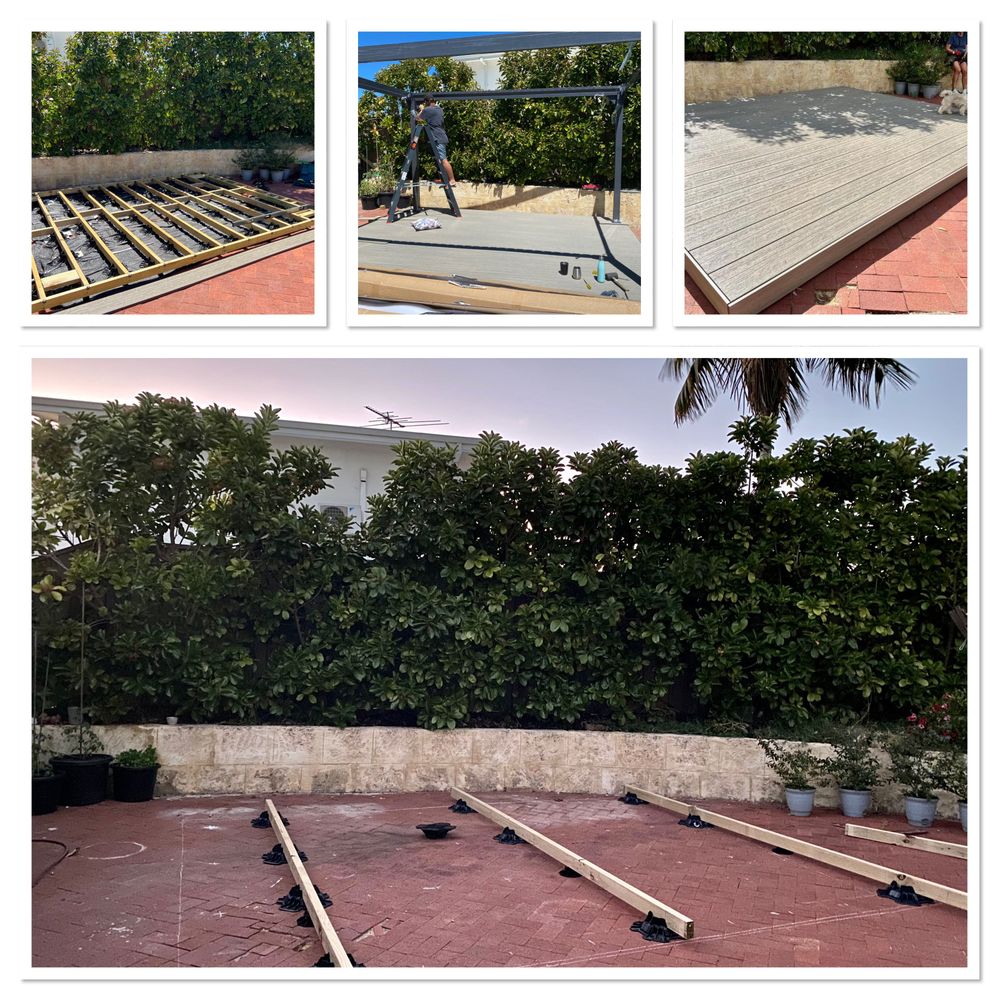

The deck was built above an existing brick paving area with the joists sitting 90mm above ground. The low deck was built over existing pavers using TuffBlocks, structural pine and composite decking.
We’re quite proud considering we’d never built anything before.
How to build a deck
Resident D.I.Y. expert Mitchell has compiled this comprehensive step-by-step guide How to build a deck.
Experienced community member Adam Woodhams also details the challenges and considerations of building a low-level deck in the guide How to build a low-level deck.
More inspiration for your decking project
Workshop member Rufaro was inspired by other community members to complete a full backyard makeover with multi-level decking.
Community member Mark spent less than $2000 to complete this backyard makeover with new deck and planter boxes.
Get more inspiration from our Top 10 most popular deck projects.
That has come up nicely! Ive considered using the tuffblocks before but never got there. The gazebo certainly adds some nice shade to the area
I cant see your drawing so I have a question about your foundations that you mentioned? Is the deck fixed to the pavers in the corners or is the gazebo fastened to the deck in the corners? I do like the slats in the gazebo bein able to be adjusted like that!
Nicely done
Dave
